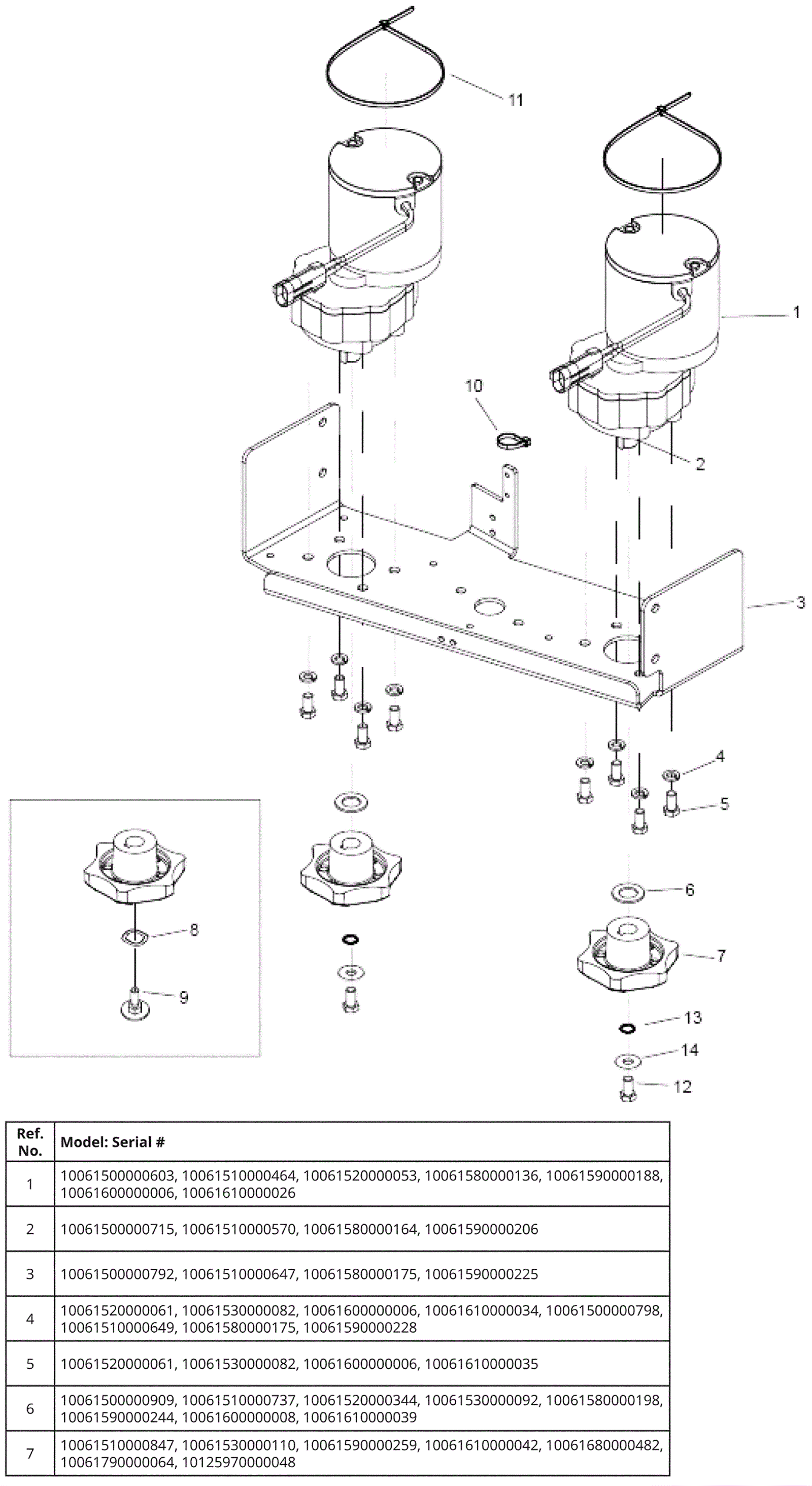

CHARIOT3 ISCRUB26 Scrub Deck Assembly - Disk

#PartDescriptionPriceReqNotesAvailability
1a 273-7270 36V motor assembly $1,056.00 2 (If ordering this part you will also need to order 11, 13, and 14) usually ships 14-22 days
1b 273-7271 Motor brush set $224.44 1 usually ships 14-22 days
2 173-3286 3/4 inch extended snap ring $5.72 2 usually ships 14-22 days
3 273-7272 Motor mounting plate $236.50 1 usually ships 1-5 days
4 999-0034 Washer 3/8 split lock plain finish $1.82 8 ships same day
5 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel $0.99 8 ships same day
6 173-2569 Washer .77 x 1.31 flat stainless steel $7.32 2 usually ships 14-22 days
7 173-1569 Star drive hub $113.32 2 usually ships 14-22 days
8 273-7273 Washer 3/4 wave $11.33 2 usually ships 1-5 days
9 273-7274 Tension screw assembly $80.30 2 usually ships 1-5 days
10 273-3820 11 inch cable tie $0.41 1 ships same day
11 173-3305 Cable tie $11.66 2 usually ships 1-5 days
12 999-1232 Screw 5/16-18 x 3/4 hex head stainless steel $0.99 2 (after SN reference 2) ships same day
13 999-1364 Washer 5/16 x 1 fender zinc finish $0.99 2 (after SN reference 2) ships same day
14 273-7583 Wave washer (OBSOLETE) $21.89 2 usually ships 14-22 days
