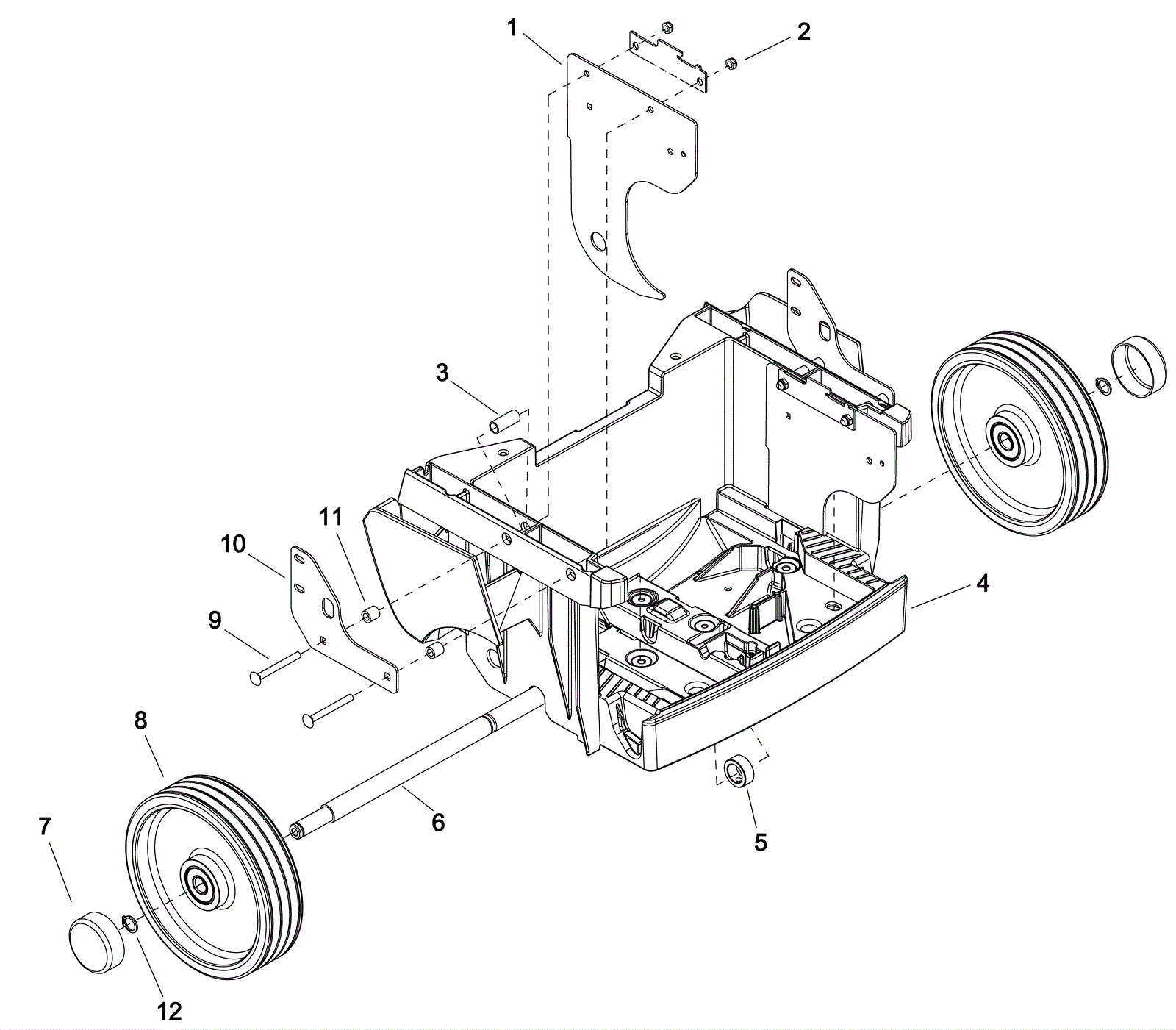

CHARIOT3 ISCRUB26 Platform Footbox and Rear Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-7263 Platform support plate $43.60 2 ships same day
2 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 4 ships same day
3 273-7264 Spacer $21.34 4 usually ships 1-5 days
4 273-7265 Platform footbox $460.90 1 usually ships 1-5 days
5 273-7266 Shaft collar $22.44 1 usually ships 1-5 days
6 273-7267 Rear axle $136.40 1 usually ships 1-5 days
7 273-0031 Vinyl cap (black) $12.98 2 usually ships 14-22 days
8 273-7268 Plastic wheel with bearings $285.47 2 ships same day
9 999-1335 Bolt 5/16-18 x 3 round head carriage stainless steel $5.54 4 ships same day
10 273-7269 Tank support plate $19.91 2 usually ships 1-5 days
11 173-5559 Spacer $48.73 4 usually ships 1-5 days
12 173-3286 3/4 inch extended snap ring $5.72 2 usually ships 14-22 days
