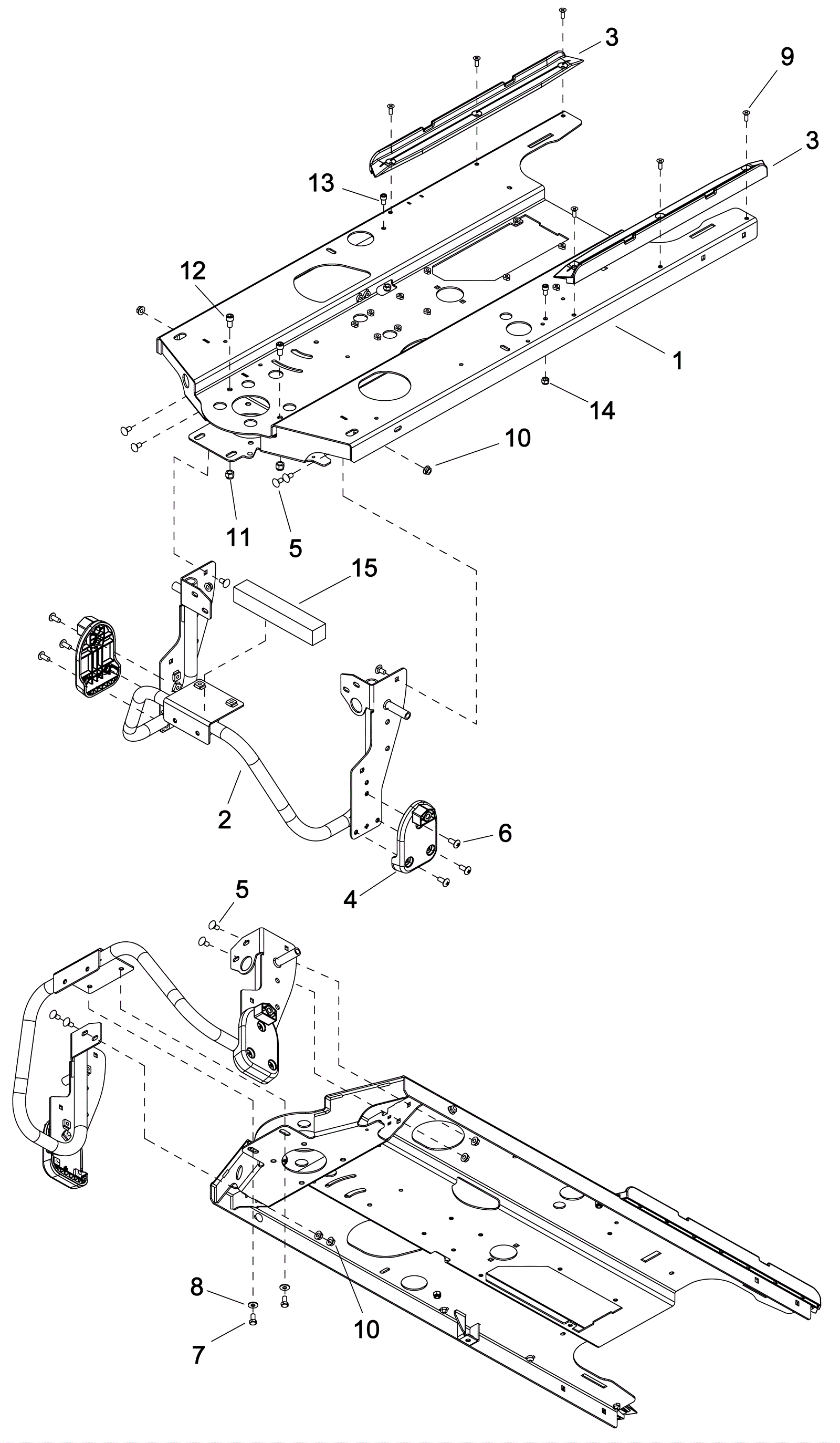

CHARIOT3 ISCRUB26 Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-7251 Main support assembly $882.20 1 usually ships 1-5 days
2 273-7252 Wheel guard assembly $507.10 1 usually ships 1-5 days
3 273-7253 Battery tray glide $60.50 2 usually ships 14-22 days
4 273-7254 Tip pad $22.55 2 usually ships 1-5 days
5 273-0019 Screw 5/16-18 x 5/8 carriage stainless steel $4.82 6 usually ships 14-22 days
6 999-1146 Screw 5/16-18 x 3/4 truss head phillips stainless steel $1.41 6 ships same day
7 999-1343 Screw 5/16-18 x 5/8 hex head stainless steel $1.25 2 ships same day
8 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
9 999-0457 Screw 1/4-20 x 3/4 flat head phillips stainless steel $0.99 6 ships same day
10 999-0525 Nut 5/16-18 flange lock serrated zinc plated $0.99 6 ships same day
11 173-3869 Nut 3/8-16 hex nylock (OBSOLETE) $1.03 2 usually ships 14-22 days
12 273-7255 Screw 3/8-16 x 5/8 cap socket head $4.75 2 usually ships 14-22 days
13 999-0681 Screw 5/16-18 x 1/2 cup point square head set $0.99 2 ships same day
14 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 2 ships same day
15 273-7256 Foam $21.89 1 usually ships 14-22 days
