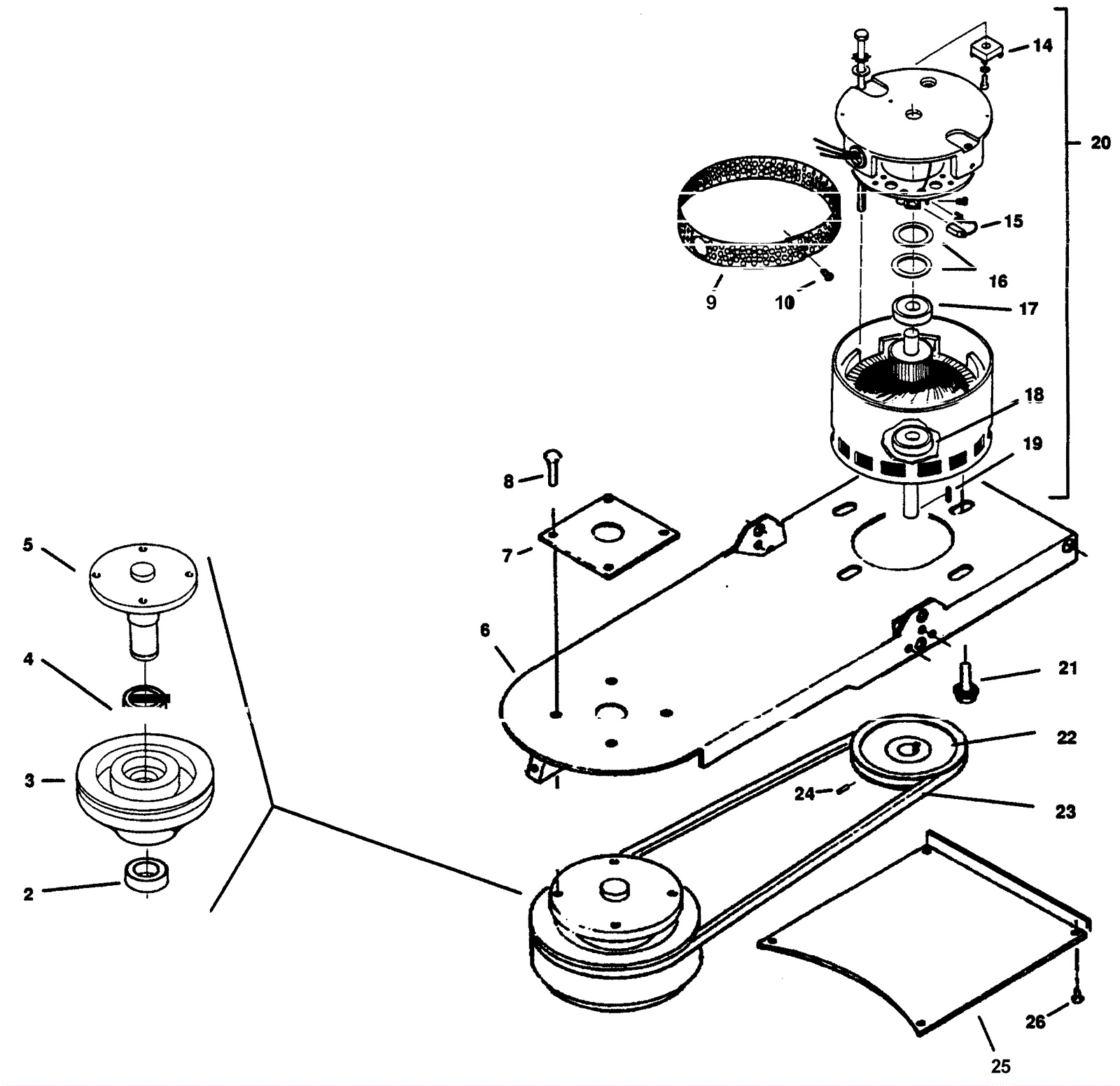

LIGHTNING 2000 Motor and Pulley Assembly

#PartDescriptionPriceReqNotesAvailability
1 173-9626 External snap ring 3/4 $0.99 usually ships 1-5 days
2 173-9627 Bearing $19.47 usually ships 14-22 days
3a N/A Not available Call for price (pad pulley) (standard) usually ships 3-26 days
3b N/A Not available Call for price (pad pulley) (J models) usually ships 3-26 days
4 173-9628 Bearing $14.08 usually ships 14-22 days
5 173-9629 Pad driver axle (OBSOLETE) $145.99 usually ships 1-5 days
6 173-9630 Main frame $457.60 usually ships 1-5 days
7 N/A Not available Call for price (axle mounting plate) usually ships 3-26 days
8 173-9631 Screw 5/16-18 x 3/4 hex thread forming $1.10 usually ships 1-5 days
9 173-9632 Motor screen $30.47 usually ships 1-5 days
10 173-8400 Screw 10-32 x 1/4 $1.03 usually ships 14-22 days
11 N/A Not available Call for price (snap bushing) usually ships 3-26 days
14 173-9634 Rectifier 24V $129.80 usually ships 1-5 days
15 173-2888 Brush set $172.70 usually ships 14-22 days
16 173-9636 Washer thrust set (pkg of 4) $6.66 usually ships 1-5 days
17 173-9637 Motor upper bearing (OBSOLETE) $30.24 usually ships 1-5 days
18 173-9638 Motor lower bearing (OBSOLETE) $40.40 usually ships 1-5 days
19 173-1861 Key $5.50 usually ships 1-5 days
20 173-2867 Motor assembly (OBSOLETE) $1,014.75 usually ships 1-5 days
21 173-4917 Screw 3/8-16 x 3/4 (OBSOLETE) $0.99 usually ships 1-5 days
22 273-6720 V-belt pulley (OBSOLETE) $73.02 usually ships 1-5 days
23a 173-9639 Drive belt $62.15 (standard) (standard) usually ships 14-22 days
23b 991-0033 A46 belt $18.79 (J models) usually ships 1-5 days
24 999-1840 Screw 5/16-18 x 5/16 knurled point socket set alloy steel $0.99 ships same day
25 173-9640 Belt guard plate $68.75 usually ships 1-5 days
26 173-2549 Bolt 10-32 x 3/8 hex head thread rolling with star washer $0.99 usually ships 14-22 days
N/S 173-0221 25amp fuse $65.45 ships same day
N/S 173-2868 Fuse holder $84.71 usually ships 14-22 days
N/S 173-4157 115V 1.5HP motor 2000RPM $727.24 usually ships 14-22 days
