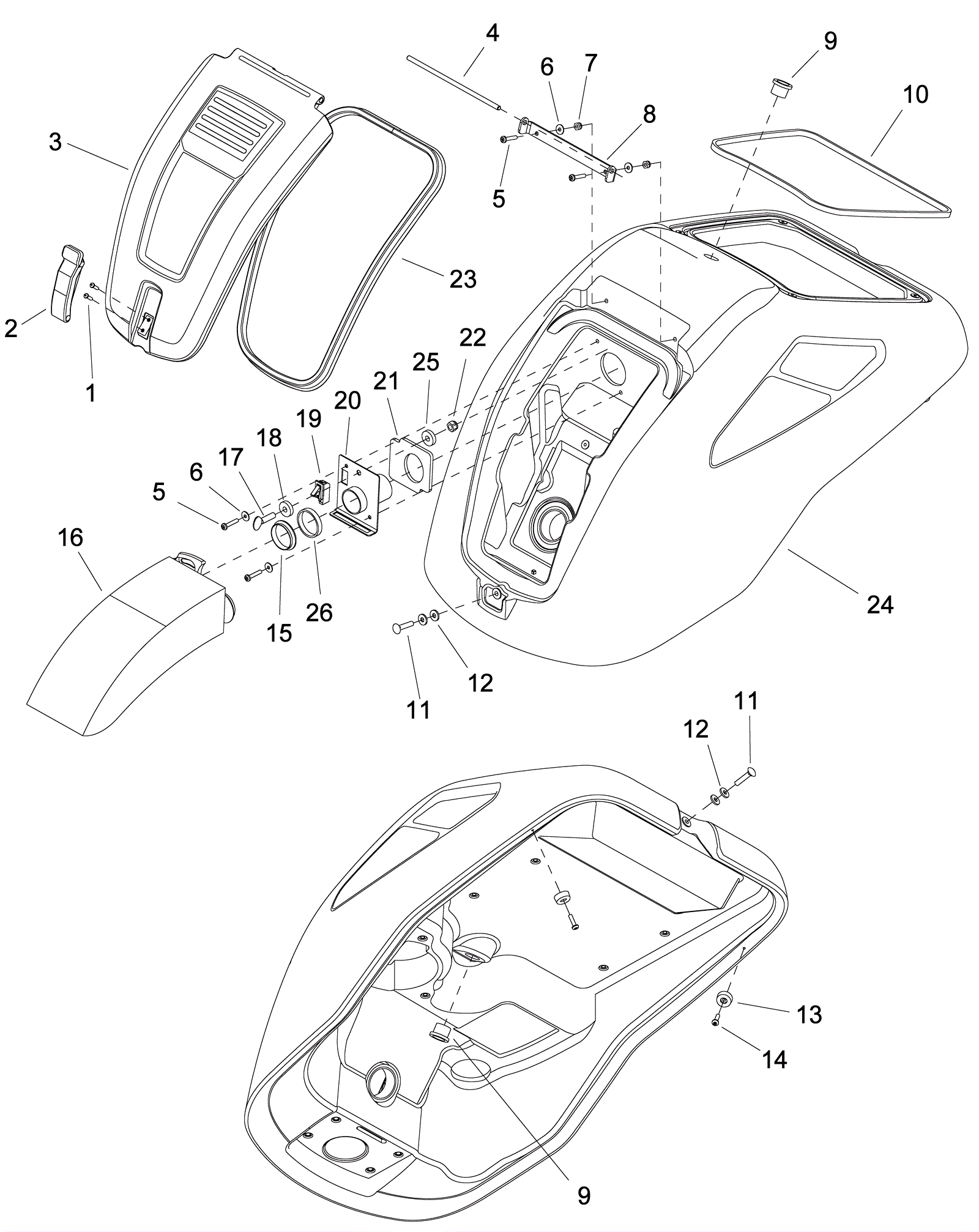

CHARIOT2 IGLOSS20 Bag Enclosure Assembly

#PartDescriptionPriceReqNotesAvailability
1 173-7229 Screw KA40 x 16 oval head $4.60 2 usually ships 14-22 days
2 173-8288 Latch $39.44 1 ships same day
3a 273-6650 Bag enclosure cover $68.33 1 usually ships 1-5 days
3b 273-1410 Bag enclosure cover (black) $270.71 1 usually ships 14-22 days
4 273-6651 Stainless steel shaft $20.13 1 usually ships 1-5 days
5 999-9067 Screw 10-32 x 1 pan head phillips zinc plated $0.99 4 usually ships 1-5 days
6 999-0998 Washer #10 flat stainless steel $0.99 4 ships same day
7 273-6661 Rubber washer $4.24 1 usually ships 14-22 days
8 273-6652 Hinge bracket $25.85 1 usually ships 1-5 days
9 173-7161 Flanged bearing $16.13 2 usually ships 14-22 days
10 173-5968 Gasket $8.77 1 usually ships 1-5 days
11 173-2580 Screw 1/4-20 x 1 1/4 carriage (OBSOLETE) $2.84 2 usually ships 14-22 days
12 999-0016 Washer 1/4 flat plain finish $0.99 4 ships same day
13 273-6653 Rubber bumper $6.01 2 usually ships 1-5 days
14 173-2454 Screw 10-3/4 polyfast $1.63 2 ships same day
15 273-6654 Rubber sink washer $10.65 1 usually ships 14-22 days
16a 173-5350 Filter bag (pkg of 10) $37.54 1 (OEM) ships same day
16b 991-6033 Filter vacuum bag (pkg of 10) $28.80 1 (NON-OEM) ships same day
17 173-3940 Screw 5/16-18 x 1 thumb type p stainless steel $17.53 1 usually ships 14-22 days
18 273-6655 Nylon washer $5.50 1 usually ships 1-5 days
19 273-5414 Interlock switch $20.96 1 ships same day
20 273-6656 Bag mount bracket $58.85 1 usually ships 1-5 days
21 273-6657 Bag mount gasket $7.77 1 usually ships 1-5 days
22 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 1 ships same day
23 273-6658 Bag cover gasket $29.43 1 usually ships 1-5 days
24a 273-6659 Trimmed console $346.50 4 (active dust control) usually ships 1-5 days
24b 273-1411 Console (gray) $694.43 1 (active dust control) usually ships 14-22 days
24c 273-6660 Passive trimmed console $568.70 1 (passive dust control) usually ships 1-5 days
24d 273-1412 Passive console (gray) $820.37 1 (passive dust control) usually ships 14-22 days
25 173-3189 Nylon spacer $1.84 1 usually ships 1-5 days
