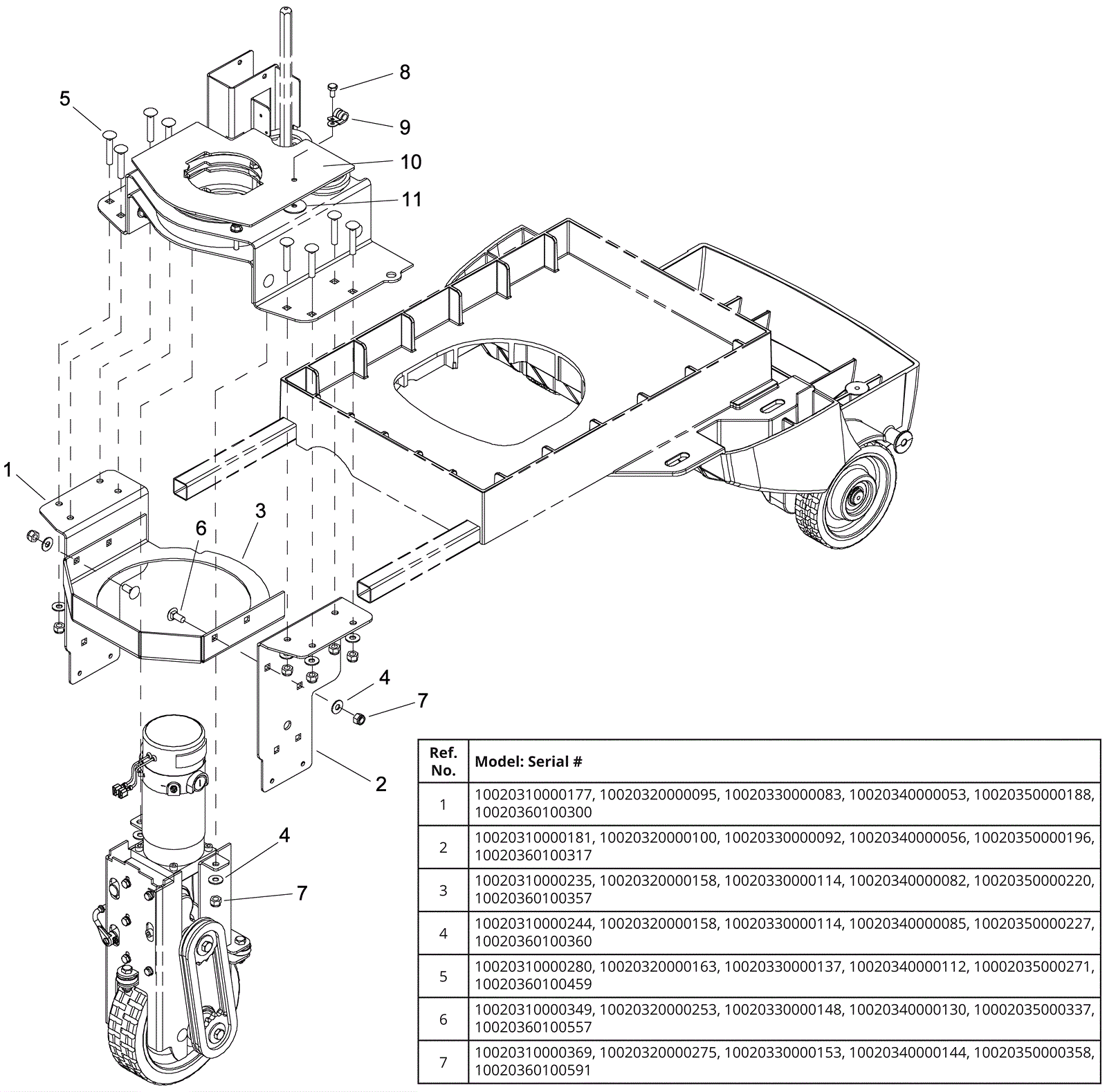

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
273-2935
|
Linkage mount bracket |
$289.30
|
1 |
|
usually ships 1-5 days |
2 |
173-7203
|
Left hand linkage mount bracket |
$67.65
|
1 |
|
usually ships 1-5 days |
3 |
173-7204
|
Roller guide bracket |
$163.90
|
1 |
|
usually ships 1-5 days |
4 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
$0.99
|
12 |
|
ships same day |
5 |
999-0404
|
Screw 5/16-18 x 1 3/4 carriage head grade 5 zinc |
$0.99
|
8 |
|
ships same day |
6 |
999-0967
|
Bolt 5/16-18 x 3/4 carriage head stainless steel |
$2.16
|
2 |
|
ships same day |
7 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
$0.99
|
12 |
|
ships same day |
8 |
999-0018
|
Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated |
$0.99
|
1 |
|
ships same day |
9 |
273-6649
|
5/8 inch cushioned clamp |
$7.54
|
1 |
|
usually ships 1-5 days |
10 |
173-5990
|
Chain guard plate |
$19.58
|
1 |
|
usually ships 1-5 days |
11 |
999-0016
|
Washer 1/4 flat plain finish |
$0.99
|
1 |
|
ships same day |
