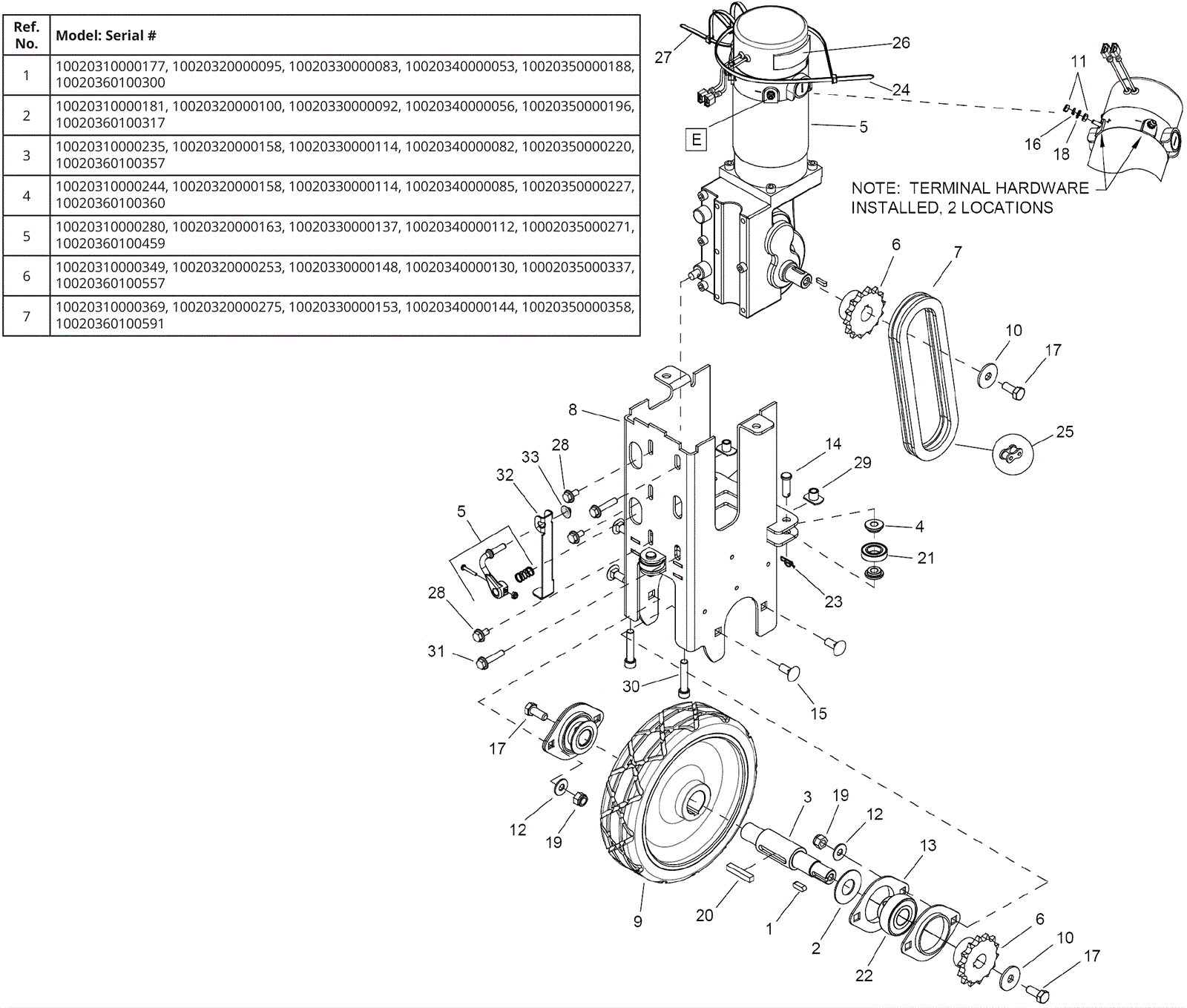

CHARIOT2 IGLOSS20 Lower Drive Assembly - Before SN Reference 3

#PartDescriptionPriceReqNotesAvailability
1 173-5974 Square keyway $5.61 1 usually ships 7-19 days
2 173-5975 Washer $8.25 2 usually ships 7-19 days
3 273-1392 Drive wheel axle $37.40 1 usually ships 7-19 days
4 173-5977 Bearing sleeve $11.33 6 usually ships 7-19 days
5a 273-6645 Traction motor $1,065.90 1 usually ships 7-19 days
5b 273-3589 Drive motor carbon brush kit $57.20 1 (CCL motor) usually ships 7-19 days
5c 273-7621 Carbon brush set $17.38 1 (Linx motor) usually ships 7-19 days
6 173-5980 Drive sprocket $75.91 2 usually ships 7-19 days
7a 173-5981 Pitch chain $42.24 1 usually ships 7-19 days
7b 173-5565 Master link $22.33 1 usually ships 7-19 days
8 173-5982 Lower drive frame $423.50 1 usually ships 1-5 days
9 173-5983 Wheel $281.66 1 ships same day
10 999-1364 Washer 5/16 x 1 fender zinc finish $0.99 3 ships same day
11 999-1619 Nut M4 hex stainless steel $0.99 4 usually ships 11-24 days
12 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 4 ships same day
13 173-3536 Flanged bearing $13.42 4 usually ships 7-19 days
14 173-5985 Clevis pin 5/16 x 1 $5.45 3 usually ships 7-19 days
15 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 4 ships same day
16 999-1802 Washer M4 spring lock stainless steel $0.99 2 ships same day
17 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 3 ships same day
18 273-6687 Washer external tooth star $1.40 2 usually ships 1-5 days
19 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 4 ships same day
20 273-0084 Square keyway $15.62 1 usually ships 7-19 days
21 173-5987 Roller $14.19 3 usually ships 7-19 days
22 173-5558 3/4 inch ball bearing $16.06 2 ships same day
23 173-1480 Cotter ring $2.12 3 usually ships 7-19 days
24 173-3305 Cable tie $11.66 1 usually ships 1-5 days
26 273-6647 Tape closed cell $4.48 2 usually ships 1-5 days
27 173-3169 Wire tie $1.03 2 usually ships 1-5 days
28 999-1801 Screw M6 X 12mm hex head flange $2.79 3 ships same day
29 273-6648 Nut weldment (OBSOLETE) $3.83 2 usually ships 7-19 days
30 999-0131 Screw 5/16-18 x 1 1/2 socket head stainless steel $2.86 2 ships same day
31 273-6686 Screw M6 X 30mm hex head flange $14.63 2 usually ships 1-5 days
32 273-7104 Drive lever engagement $40.70 1 usually ships 1-5 days
33 173-8413 Nut 1/4 cap $0.99 1 usually ships 7-19 days
