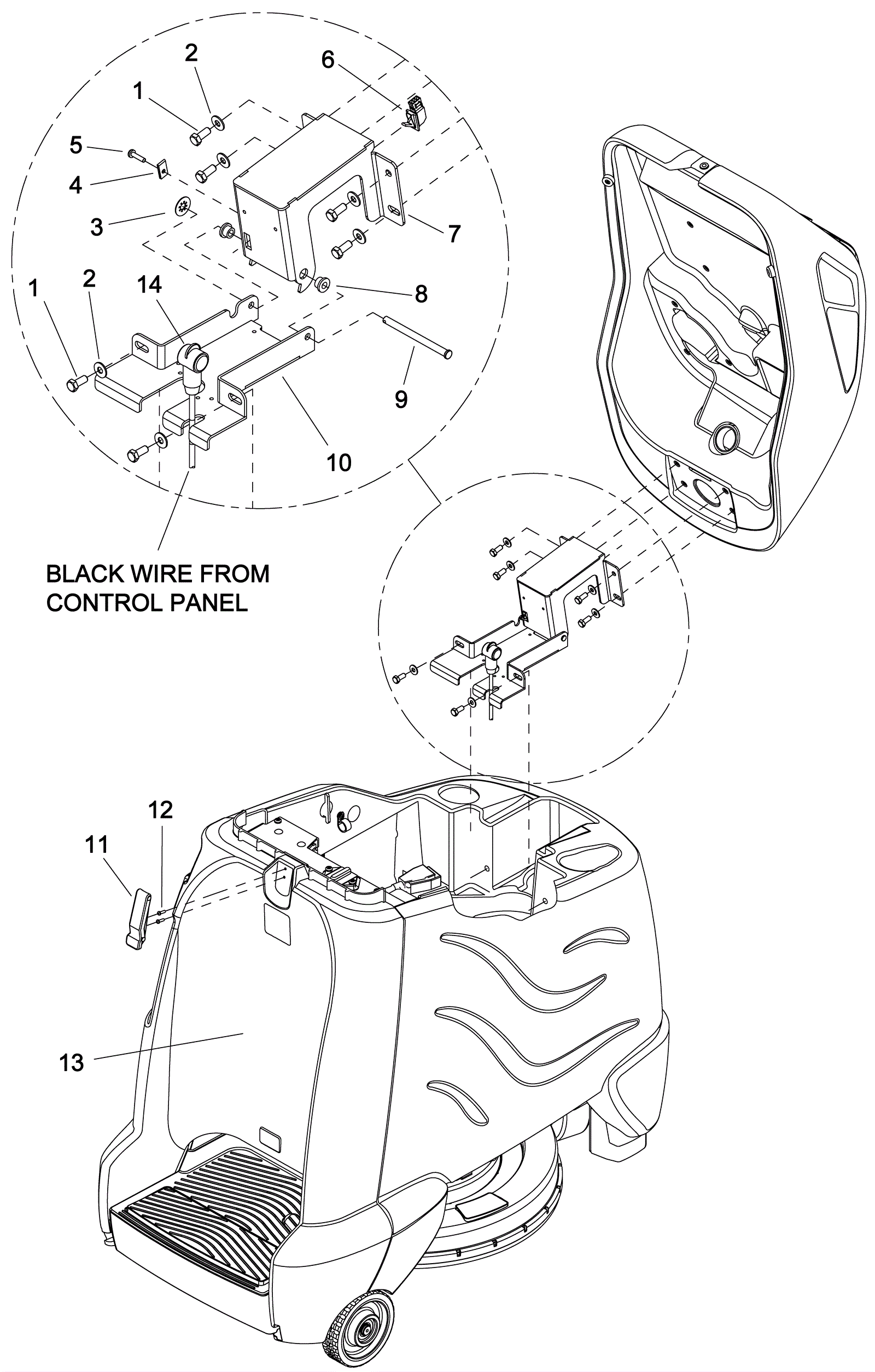

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
999-1232
|
Screw 5/16-18 x 3/4 hex head stainless steel |
$0.99
|
6 |
|
ships same day |
2 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
$0.99
|
6 |
|
ships same day |
3 |
173-5957
|
Nut 5/16 push lock (OBSOLETE) |
$1.91
|
1 |
|
usually ships 14-22 days |
4 |
173-2576
|
Nut 10-24 tinnerman (OBSOLETE) |
$5.35
|
1 |
|
usually ships 14-22 days |
5 |
999-0705
|
Screw 10-24 x 3/4 pan head phillips stainless steel |
$0.99
|
1 |
|
ships same day |
6 |
273-5414
|
Interlock switch |
$20.96
|
1 |
|
ships same day |
7 |
173-5956
|
Upper hinge bracket |
$130.65
|
1 |
|
usually ships 14-22 days |
8 |
273-5628
|
Flanged bearing |
$5.89
|
2 |
|
ships same day |
9 |
173-5955
|
Clevis pin (OBSOLETE) |
$8.09
|
1 |
|
usually ships 14-22 days |
10 |
273-6637
|
Lower hinge bracket |
$96.51
|
1 |
|
usually ships 1-5 days |
11 |
173-8288
|
Latch |
$39.44
|
1 |
|
ships same day |
12 |
173-7229
|
Screw KA40 x 16 oval head |
$4.60
|
2 |
|
usually ships 14-22 days |
13a |
273-6638
|
Back panel |
$351.92
|
1 |
|
usually ships 14-22 days |
13b |
273-1413
|
Back panel (black) |
$460.21
|
1 |
|
usually ships 14-22 days |
14 |
173-3311
|
Insulated rubber terminal boot |
$4.30
|
1 |
|
usually ships 14-22 days |
