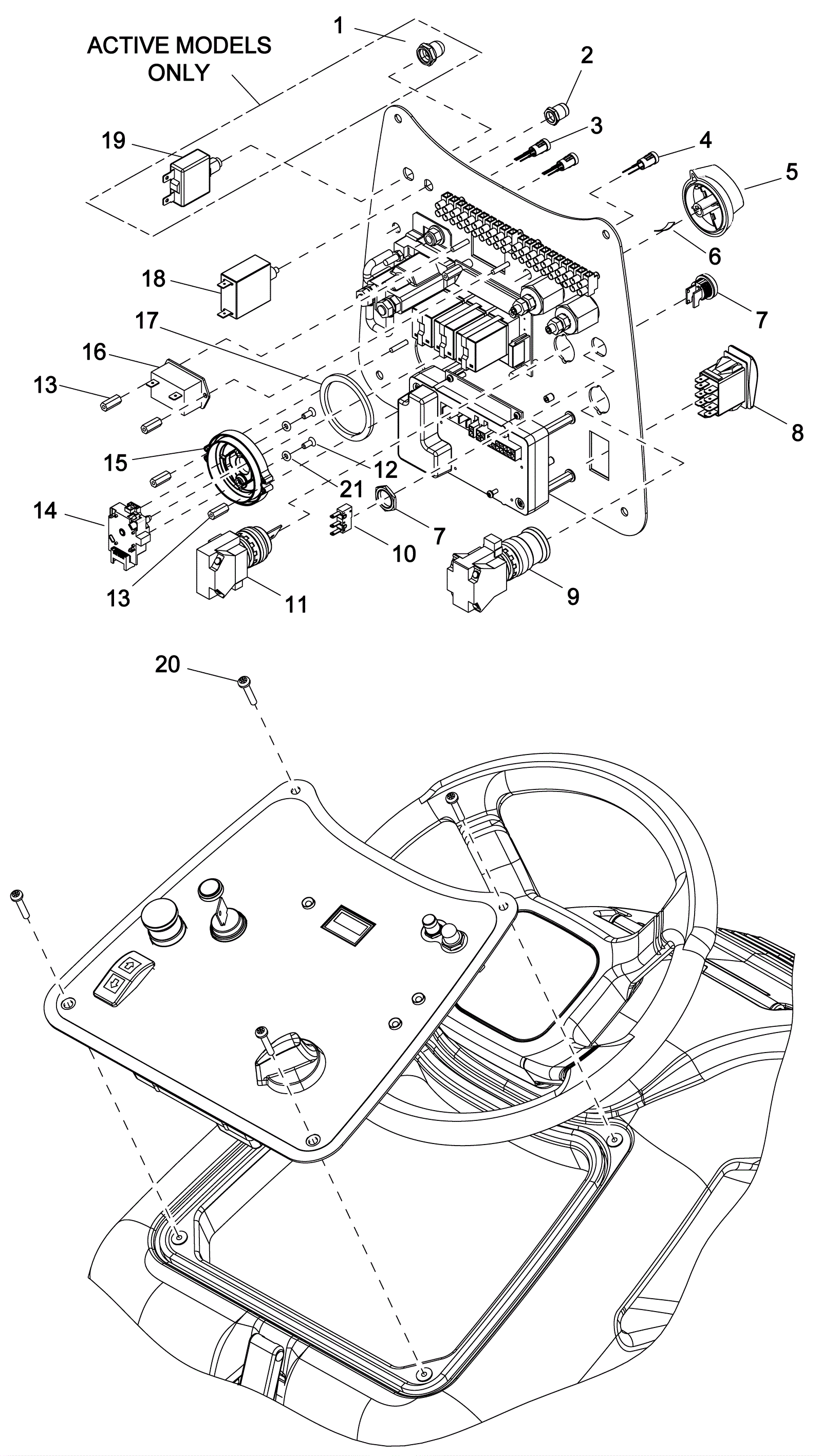

CHARIOT2 IGLOSS20 Control Panel Switch Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-5770 Push button boot $21.89 1 (active model only) usually ships 7-19 days
2 173-6027 3/8 inch circuit breaker boot $53.79 1 usually ships 7-19 days
3 273-6629 Bag full indicator $56.10 2 usually ships 7-19 days
4 173-5967 Indicator light assembly $87.45 1 usually ships 7-19 days
5 273-6022 Knob $3.70 1 (also need to order 6) ships same day
6 273-9368 Knob w/ spring clip $7.54 1 ships same day
7 273-0914 Button assembly $28.82 1 usually ships 7-19 days
8 273-0913 Switch $94.05 1 usually ships 7-19 days
9 273-5774 Emergency stop switch $167.20 1 ships same day
10 273-5780 Micro switch $27.50 1 usually ships 7-19 days
11a 189-0320 Key switch $51.92 1 usually ships 7-19 days
11b 173-3958 Key (pkg of 2) $29.81 1 ships same day
12 999-1682 Screw M4-.7 x 12mm flat head stainless steel $0.99 2 ships same day
13 173-1520 Nylon standoff $6.66 4 ships same day
14 273-6631 Rotary switch $47.52 1 ships same day
15 273-6632 Rotary switch (bezel) $25.74 1 ships same day
16 273-5769 Hour meter $104.71 1 usually ships 7-19 days
17 273-6633 Gasket $3.87 1 usually ships 7-19 days
18 173-0713 1.5amp circuit breaker $25.74 1 usually ships 7-19 days
19 273-5778 18amp circuit breaker $28.16 1 (active model only) usually ships 7-19 days
20 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel $0.99 4 ships same day
21 273-6635 O-ring $1.03 2 usually ships 7-19 days
