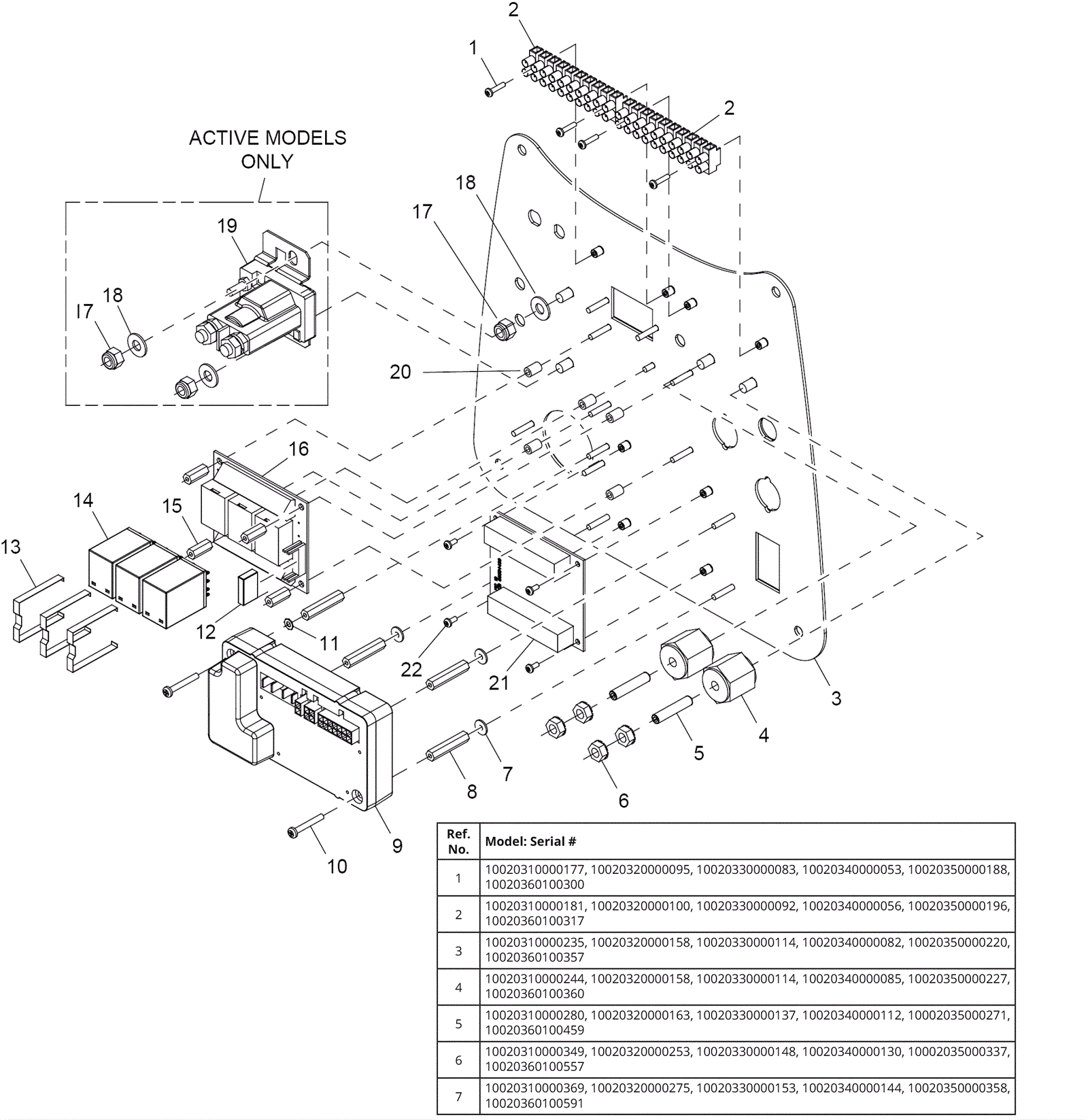

CHARIOT2 IGLOSS20 Control Panel Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-1330 Screw 4-40 x 1/2 pan head stainless steel $0.99 4 ships same day
2 173-5965 10 position connector with 8mm pitch $31.13 2 usually ships 1-5 days
3 273-6621 Control panel $201.30 1 usually ships 1-5 days
4 173-1145 Insulated stand-off $22.55 2 usually ships 7-19 days
5 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish $0.99 1 ships same day
6 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS $0.99 4 ships same day
7 999-1158 Washer #6 flat stainless steel $0.99 3 ships same day
8 273-6622 Nylon standoff 6-32 x 1.25 $6.22 4 usually ships 1-5 days
9a 273-6623 Controller $641.30 1 (before SN reference 3) usually ships 1-5 days
9b 273-8953 Controller C2B $691.90 1 (after SN reference 3) usually ships 7-19 days
10 999-0974 Screw 6-32 x 1 1/4 pan head phillips stainless steel $7.92 2 ships same day
11 999-0148 Washer #6 external star lock zinc plated $0.99 1 ships same day
12 273-7003 Relay circuit board $454.30 1 usually ships 7-19 days
13 273-6625 Relay clip $4.18 3 usually ships 7-19 days
14 273-0912 5amp relay $24.64 3 usually ships 7-19 days
15 173-1520 Nylon standoff $6.66 4 ships same day
16 273-7003 Relay circuit board $454.30 1 usually ships 7-19 days
17 999-0304 Nut 1/4-20 nylon lock jam stainless steel $0.99 1 (qty 2 for active model) ships same day
18 999-0123 Washer 1/4 SAE flat zinc plated $0.99 1 (qty 2 for active model) ships same day
19 173-1872 100amp relay $90.75 1 (active model only) usually ships 7-19 days
20 273-6627 Spacer $1.40 5 usually ships 7-19 days
21 273-6628 Rotary switch power control board $431.20 1 usually ships 1-5 days
22 173-2014 Screw 4-40 x 1/4 $0.99 4 usually ships 1-5 days
