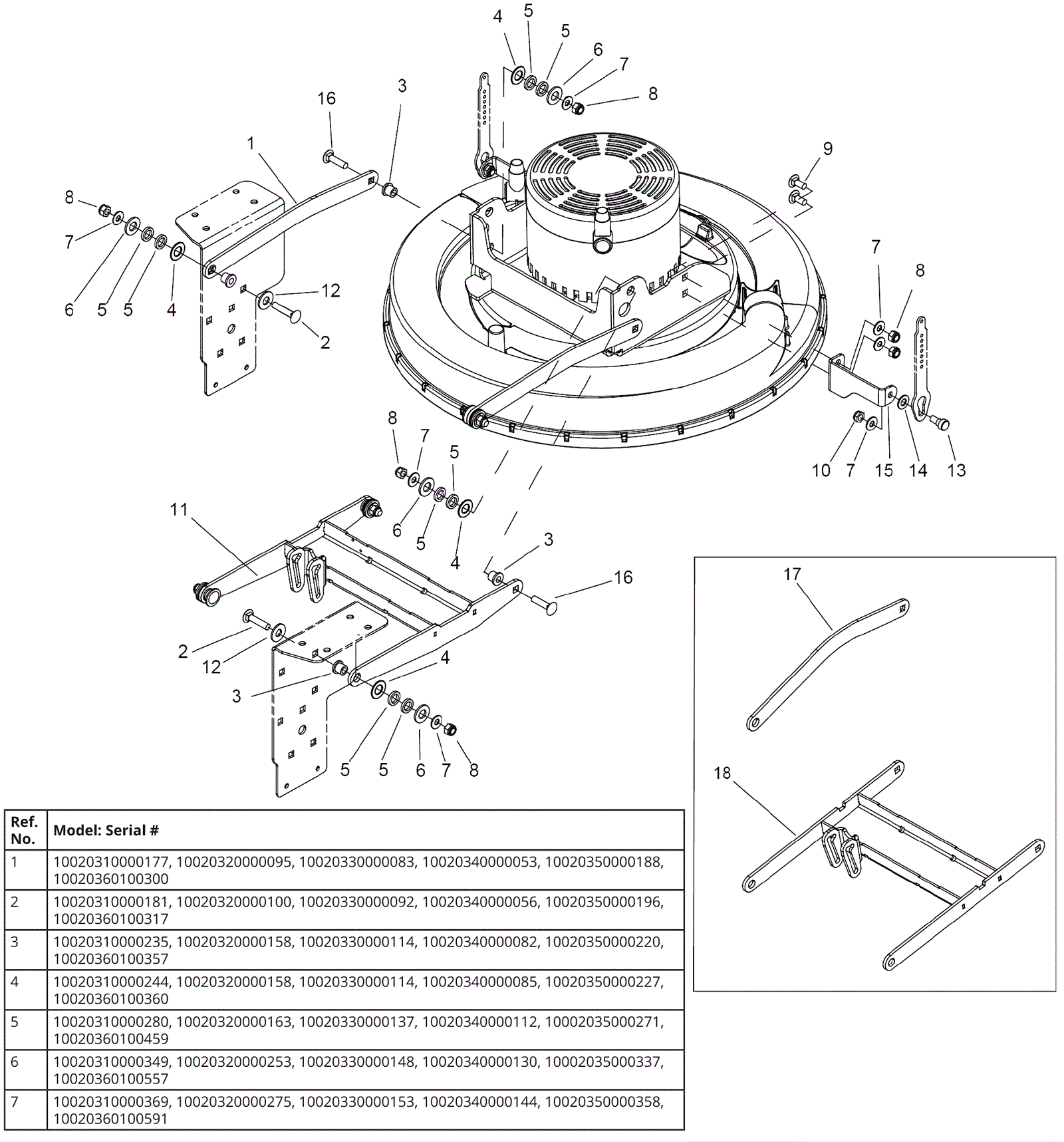

CHARIOT2 IGLOSS20 Burnishing Deck Mounting Assembly

#PartDescriptionPriceReqNotesAvailability
1a 273-6611 Linkage arm bracket $29.59 2 (before SN reference 5) usually ships 1-5 days
1b 273-1408 Deck linkage arm $13.31 2 (after SN reference 5) usually ships 7-19 days
2 173-5464 Screw 5/16-18 x 1 1/2 carriage head stainless steel $5.08 4 usually ships 1-5 days
3 173-3116 Flanged bearing $8.47 8 usually ships 7-19 days
4 173-3964 Thrust washer $6.44 8 ships same day
5 173-2571 Washer 1/2 x .125 wave $3.82 16 ships same day
6 173-2815 Washer 33/64 x 1 thrust $7.81 8 usually ships 7-19 days
7 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 14 ships same day
8 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 12 ships same day
9 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 2 ships same day
10 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 2 ships same day
11a 273-6612 Top lift bracket $236.50 1 (before SN reference 5) usually ships 1-5 days
11b 273-1409 Top link assembly $77.55 1 (after SN reference 5) usually ships 7-19 days
12 173-3985 Washer 7/16 flat stainless steel $1.21 4 usually ships 7-19 days
13 273-6613 Bolt 3/8 x 1/4 shoulder stainless steel $27.01 2 usually ships 1-5 days
14 999-1007 Washer 3/8 x 1/16 flat nylon $0.99 2 ships same day
15 273-6614 Spring lift bracket $31.13 2 usually ships 1-5 days
16 999-0919 Bolt 5/16-18 x 1 1/4 carriage head stainless steel $1.39 4 ships same day
17 273-6611 Linkage arm bracket $29.59 2 usually ships 1-5 days
18 273-1409 Top link assembly $77.55 1 usually ships 7-19 days
