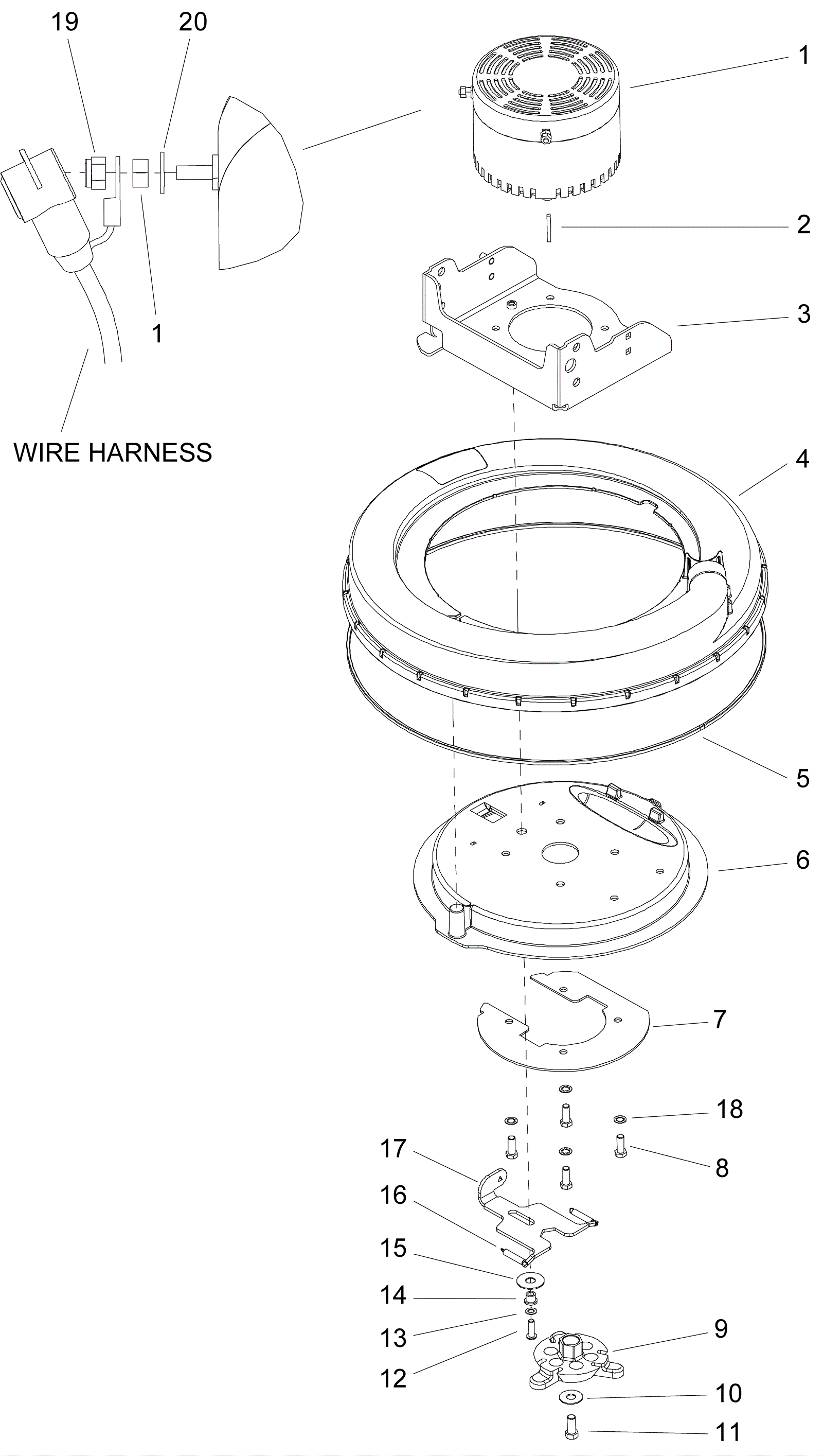

CHARIOT2 IGLOSS20 Burnishing Deck Assembly

#PartDescriptionPriceReqNotesAvailability
1a 273-1407 Brush motor $2,106.50 1 (requires 273-1405) usually ships 7-19 days
1b 273-6604 Motor brush set $371.44 1 usually ships 7-19 days
2 273-6605 Square key 3/16 x 1 1/2 inch $3.03 1 usually ships 7-19 days
3 273-6606 Motor lift bracket $216.70 1 usually ships 1-5 days
4 273-6607 Outer shroud $203.50 1 usually ships 7-19 days
5 273-6608 Brush 72 inch $101.75 1 usually ships 7-19 days
6 273-6588 Inner shroud $128.70 1 usually ships 7-19 days
7 273-6609 Inner shroud plate $43.01 1 usually ships 1-5 days
8 999-0562 Bolt 3/8-16 x 1 hex head stainless steel $1.50 4 ships same day
9 273-6448 Hub $214.50 1 usually ships 7-19 days
10 999-0187 Washer 1/2 flat plain finish $0.99 1 ships same day
11 999-1193 Bolt 7/16-20 x 1 hex head stainless steel $3.15 1 ships same day
12 999-0225 Screw 5/16-18 x 1 button head socket plain finish $0.99 1 ships same day
13 999-1053 Washer 5/16 internal star lock stainless steel $0.99 1 ships same day
14 173-3116 Flanged bearing $8.47 1 usually ships 7-19 days
15 173-5015 Washer 9/16 x 1 1/2O teflon $3.33 1 usually ships 7-19 days
16 173-1558 Extension spring $28.00 2 usually ships 7-19 days
17 273-6610 Motor lock bracket $66.55 1 usually ships 7-19 days
18 173-5043 Washer 3/8 interlocking $1.25 4 usually ships 1-5 days
19 999-0069 Nut 5/16-18 hex $0.99 2 ships same day
20 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
