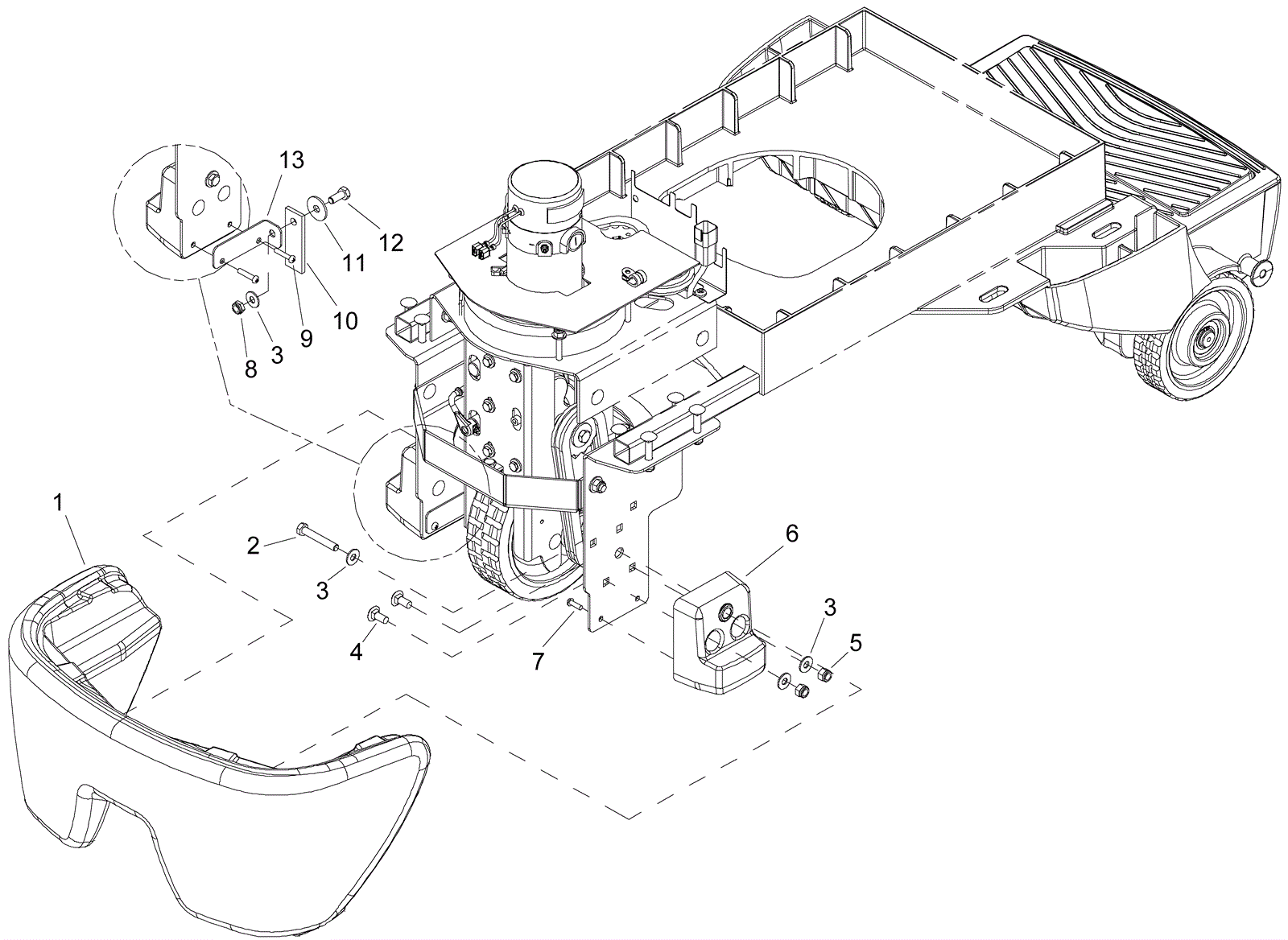

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1a |
173-5948
|
Bumper trim (gray) |
$414.70
|
1 |
|
usually ships 7-19 days |
1b |
273-7939
|
Bumper trim (black) |
$391.60
|
1 |
|
usually ships 7-19 days |
2 |
999-0893
|
Screw 5/16-18 x 2 hex head stainless steel |
$0.99
|
2 |
|
ships same day |
3 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
$0.99
|
7 |
|
ships same day |
4 |
999-0967
|
Bolt 5/16-18 x 3/4 carriage head stainless steel |
$2.16
|
4 |
|
ships same day |
5 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
$0.99
|
4 |
|
ships same day |
6 |
173-5949
|
Left hand tipping pad |
$22.55
|
2 |
|
usually ships 7-19 days |
7 |
183-0281
|
Screw |
$1.35
|
2 |
|
usually ships 8-21 days |
8 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
$0.99
|
1 |
|
ships same day |
9 |
273-5415
|
Screw KA50 x 25mm stainless steel |
$4.84
|
2 |
|
ships same day |
10 |
173-5517
|
Static strap |
$36.85
|
1 |
|
usually ships 1-5 days |
11 |
999-1364
|
Washer 5/16 x 1 fender zinc finish |
$0.99
|
1 |
|
ships same day |
12 |
999-1052
|
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
$0.99
|
1 |
|
ships same day |
13 |
273-6602
|
Bracket |
$21.12
|
1 |
|
usually ships 1-5 days |
