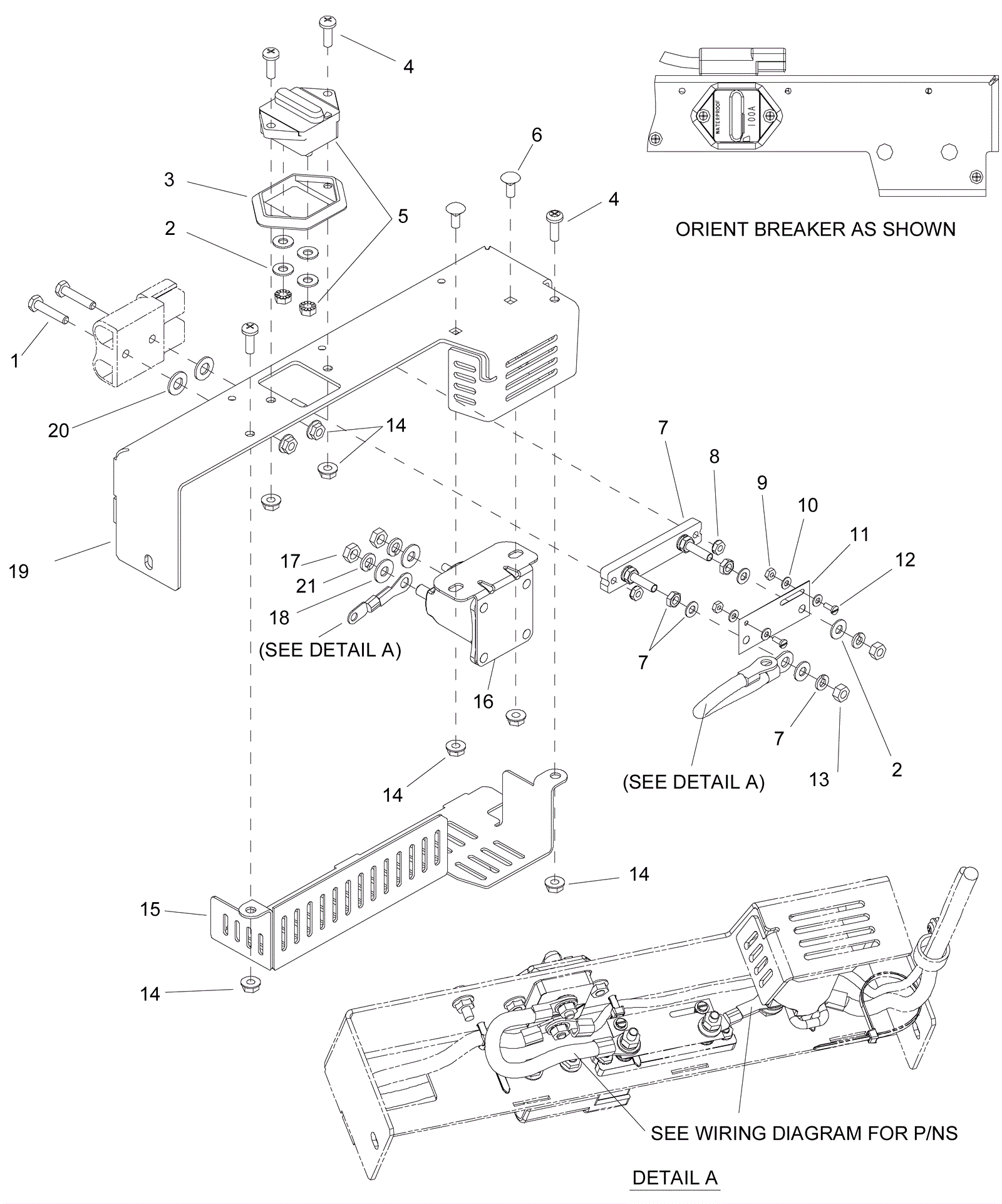

CHARIOT2 IGLOSS20 Body Bracket Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated $0.99 2 ships same day
2 999-0123 Washer 1/4 SAE flat zinc plated $0.99 6 ships same day
3 273-6592 Panel cover $24.20 1 usually ships 1-5 days
4 999-0487 Screw 1/4-20 x 3/4 pan head phillips zinc plated $0.99 4 ships same day
5 273-6398 100amp circuit breaker $121.02 1 usually ships 7-19 days
6 273-5894 Screw 1/4-20 x 5/8 carriage head stainless steel $3.30 2 usually ships 1-5 days
7 173-4647 Shunt mounting block $29.59 1 usually ships 1-5 days
8 173-2472 Nut 10-32 with star washer $0.99 2 usually ships 1-5 days
9 173-3909 Nut 6-32 hex brass $0.99 2 usually ships 1-5 days
10 999-1158 Washer #6 flat stainless steel $0.99 4 ships same day
11 173-0449 70amp 50MV shunt $136.40 1 usually ships 1-5 days
12 999-0147 Screw 6-32 x 3/8 round head slotted zinc plated $0.99 2 ships same day
13 999-0609 Nut 1/4-20 hex stainless steel $0.99 2 ships same day
14 999-0595 Nut 1/4-20 flange lock serrated zinc plated $0.99 8 ships same day
15 273-6593 Contactor cover bracket $90.20 1 usually ships 1-5 days
16 991-1227 36V solenoid 4 post (2 large 2 small) $52.39 1 ships same day
17 173-5044 Nut 1/4-28 stop elastic $1.96 2 usually ships 1-5 days
18 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
19 273-6595 Solution tank bracket $165.00 1 usually ships 1-5 days
20 999-1007 Washer 3/8 x 1/16 flat nylon $0.99 2 ships same day
21 999-0028 Washer 5/16 split lock plain finish $0.99 2 ships same day
