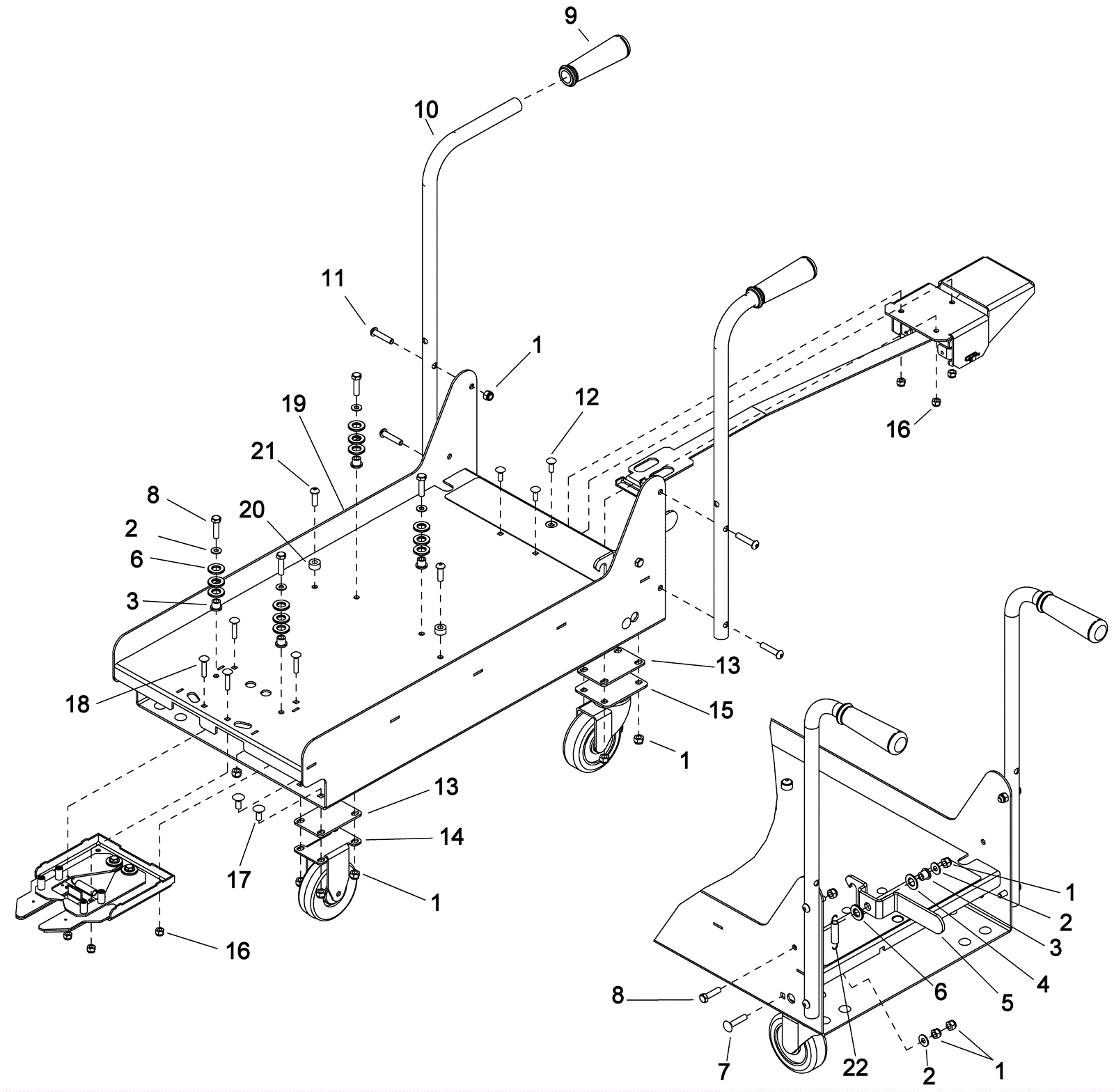

COMMODORE DUO Battery Cart Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 29 ships same day
2 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 6 ships same day
3 173-3116 Flanged bearing $8.47 5 usually ships 7-19 days
4 173-3964 Thrust washer $6.44 1 ships same day
5 173-5618 Bracket $75.35 1 usually ships 1-5 days
6 173-3963 Washer 1/2 thrust $7.32 13 usually ships 7-19 days
7 173-5464 Screw 5/16-18 x 1 1/2 carriage head stainless steel $5.08 1 usually ships 1-5 days
8 999-0688 Bolt 5/16-18 x 1 1/4 hex head stainless steel $0.99 5 ships same day
9 173-0371 Handle grip $12.56 2 usually ships 7-19 days
10 173-5620 Battery cart handle $108.35 2 usually ships 1-5 days
11 173-3967 Bolt 5/16-18 x 1 1/2 shoulder cap $7.92 4 usually ships 7-19 days
12 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel $1.50 3 ships same day
13 173-5621 Spacer plate $13.20 4 usually ships 1-5 days
14 173-5622 4 inch caster wheel $59.40 2 usually ships 7-19 days
15 173-0557 4 inch swivel caster wheel $62.15 2 usually ships 7-19 days
16 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 7 ships same day
17 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 16 ships same day
18 173-2580 Screw 1/4-20 x 1 1/4 carriage (OBSOLETE) $2.84 4 usually ships 7-19 days
19 273-6863 Battery cart housing $798.60 1 usually ships 1-5 days
20 173-5615 Spacer $15.29 2 usually ships 1-5 days
21 999-0225 Screw 5/16-18 x 1 button head socket plain finish $0.99 2 ships same day
22 173-1478 Extension spring $11.99 1 ships same day
