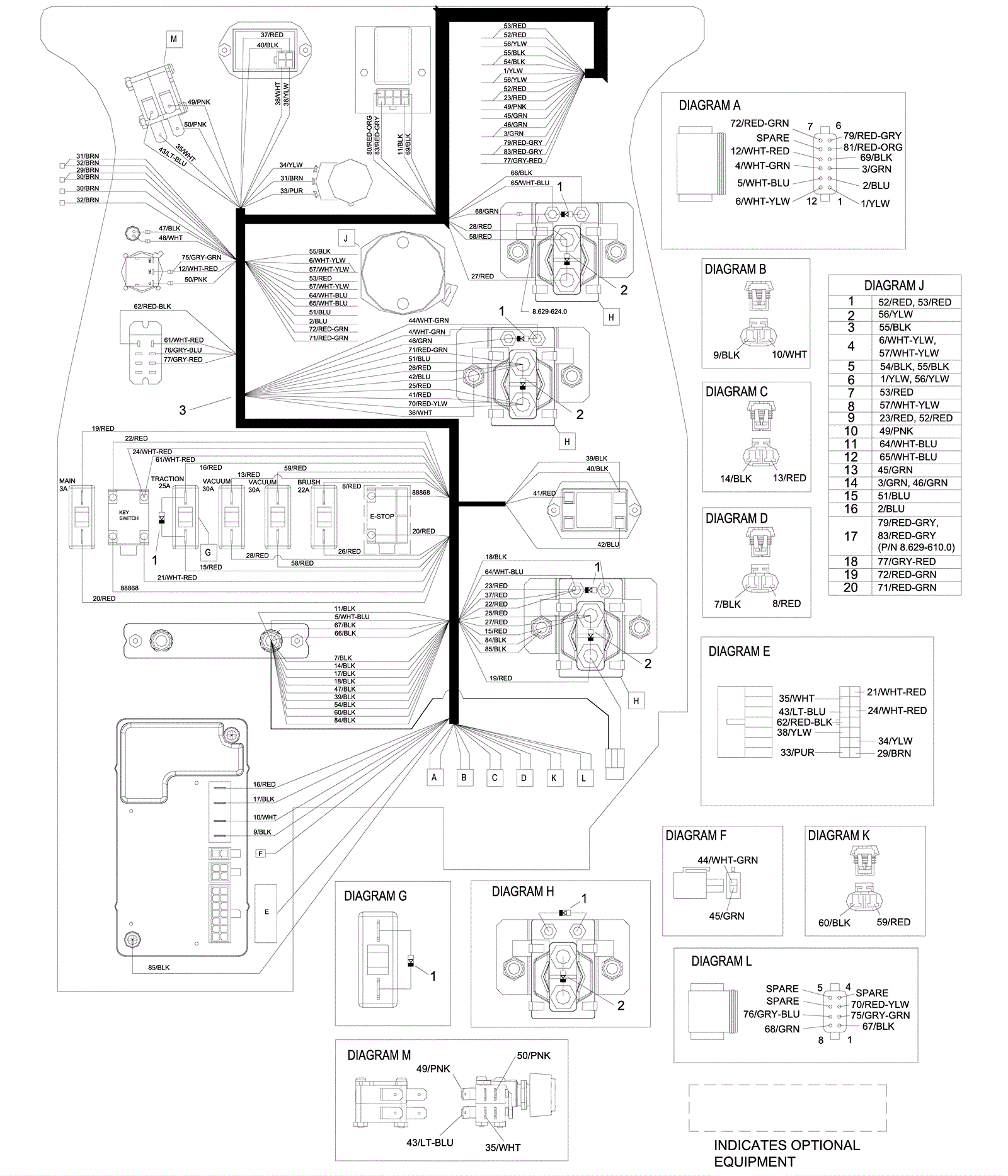

COMMODORE DUO Control Panel Wiring Diagram - Deluxe

#PartDescriptionPriceReqNotesAvailability
1 173-1716 Diode assembly $57.55 4 usually ships 11-16 days
2 173-5604 Recovery diode assembly $39.44 3 usually ships 11-16 days
3 273-0227 Deluxe panel harness $484.97 1 usually ships 1-5 days
