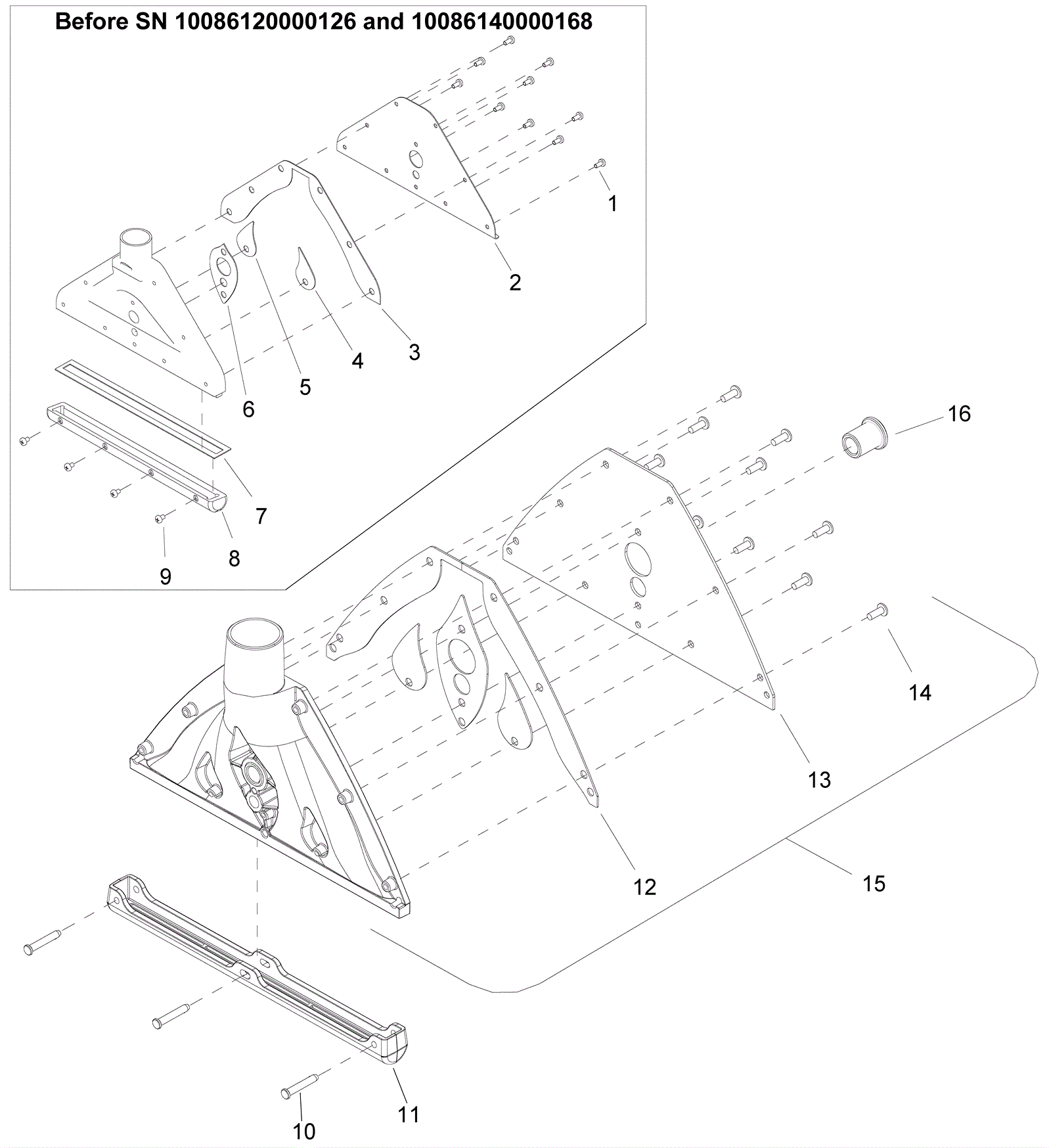

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0522
|
Screw 1/4-20 x 1/2 pan head phillips stainless steel |
10 |
(Before SN 10086120000126 and 10086140000168) |
|
2 |
273-6253
|
Vacuum shoe cover (OBSOLETE) |
1 |
(Before SN 10086120000126 and 10086140000168) |
|
3 |
273-6254
|
Gasket |
1 |
(Before SN 10086120000126 and 10086140000168) |
|
4 |
273-6255
|
Gasket |
1 |
(Before SN 10086120000126 and 10086140000168) |
|
5 |
273-6256
|
Gasket |
1 |
(Before SN 10086120000126 and 10086140000168) |
|
6 |
273-5267
|
Gasket |
1 |
(Before SN 10086120000126 and 10086140000168) |
|
7 |
273-6258
|
Gasket |
1 |
(Before SN 10086120000126 and 10086140000168) |
|
8 |
173-6137
|
Vacuum shoe wiper |
1 |
(Before SN 10086120000126 and 10086140000168) |
|
9 |
999-0571
|
Screw 10-24 x 3/8 pan head phillips stainless steel |
4 |
(Before SN 10086120000126 and 10086140000168) |
|
10 |
273-5736
|
Clevis pin |
3 |
(After SN 10086120000126 and 10086140000168) |
|
11 |
273-6471
|
13 inch wiper with gasket (OBSOLETE) |
1 |
(After SN 10086120000126 and 10086140000168) |
|
12 |
273-0224
|
Gasket assembly |
1 |
(After SN 10086120000126 and 10086140000168) |
|
13 |
N/A
|
Not available |
1 |
(Vac shoe plate) (After SN 10086120000126 and 10086140000168) |
|
14 |
273-0225
|
Screw M6 x 16mm pan head stainless steel |
10 |
(After SN 10086120000126 and 10086140000168) |
|
15 |
273-6268
|
13 inch vacuum shoe |
1 |
(After SN 10086120000126 and 10086140000168) |
|
16 |
273-6529
|
Bronze bushing |
1 |
|
|
