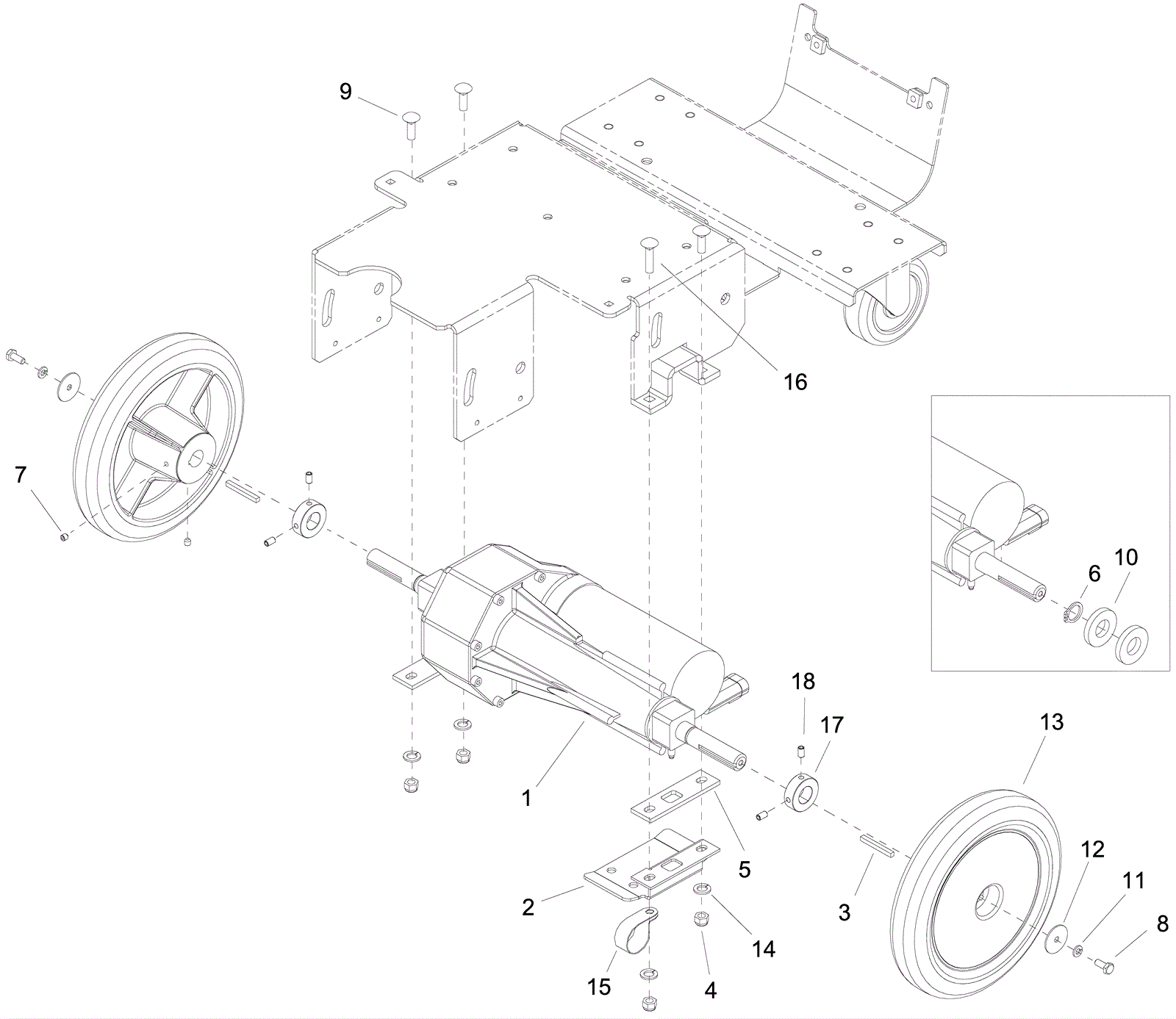

Wheel and Drive Assembly

#PartDescription ReqNotesAvailability
1a 273-6505 Transaxle 1
1b 273-0213 Carbon brush set 1
2 273-0214 Cable guard bracket 1
3 173-0431 Key 3/16 x 1.75 (OBSOLETE) 2
4 999-0423 Nut 5/16-18 nylon insert lock stainless steel 4
5 273-0215 Gasket 2
6 173-3286 3/4 inch extended snap ring 2
7 173-4900 Screw 1/4-20 x 3/8 set (OBSOLETE) 8
8 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 2
9 999-0252 Screw 5/16-18 x 1 carriage head grade 5 zinc 3
10 173-3924 Washer .78 x .25 4
11 999-1049 Washer 1/4 split lock zinc plated 2
12 999-0016 Washer 1/4 flat plain finish 2
13 273-6580 Wheel 2
14 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 4
15 273-0216 Clamp 1
16 999-0919 Bolt 5/16-18 x 1 1/4 carriage head stainless steel 1
17 273-0217 Collar set 2
18 173-4900 Screw 1/4-20 x 3/8 set (OBSOLETE) 4
