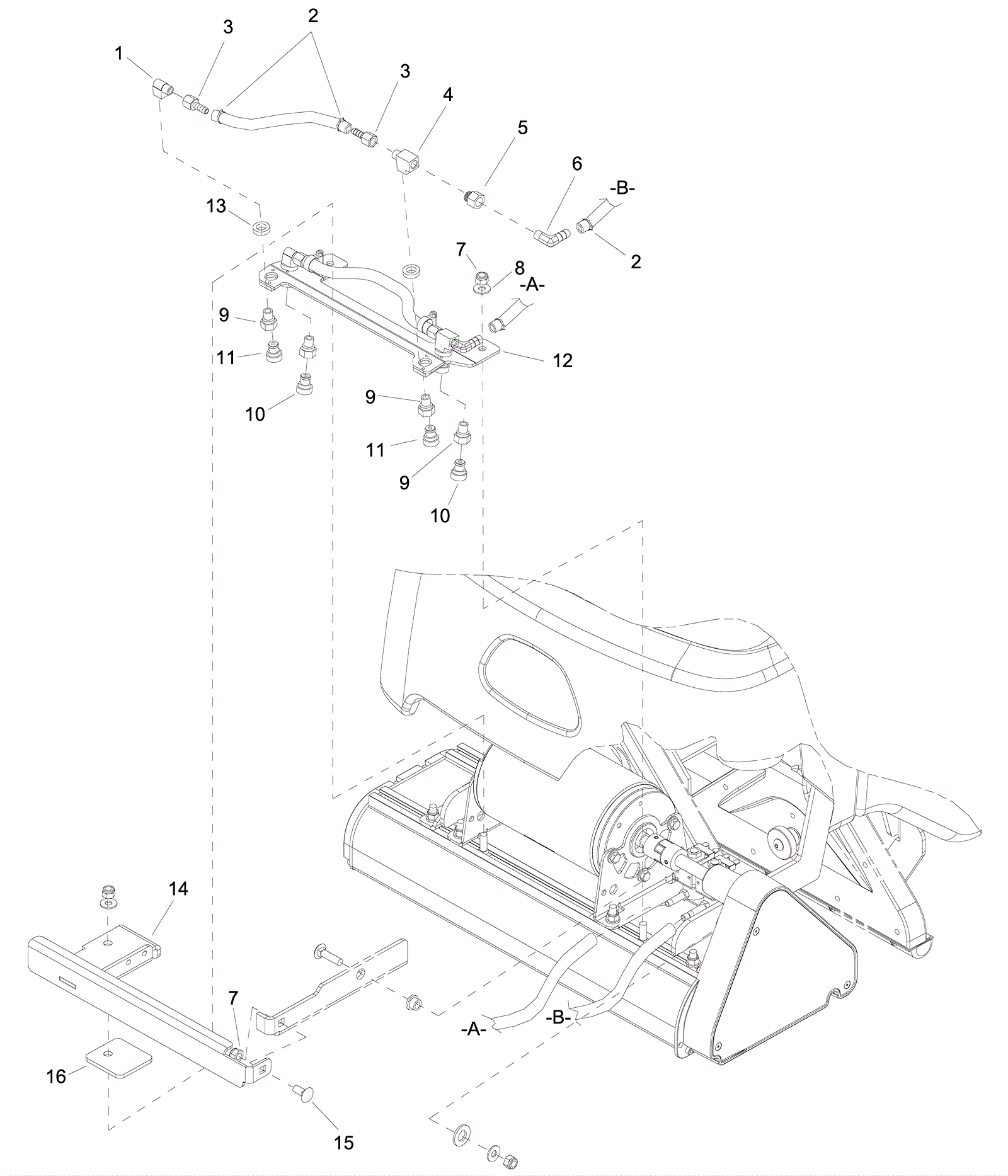

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
173-2223
|
90 degree elbow |
2 |
|
|
2 |
173-2741
|
Hose clamp |
6 |
|
|
3 |
173-9751
|
Hosebarb 1/8 x 1/4 inch |
4 |
|
|
4 |
273-5716
|
1/8 inch street run tee nickel plated thread |
2 |
|
|
5 |
173-2672
|
Adapter 1/8 x 1/8 |
1 |
|
|
6 |
273-5715
|
Hosebarb 1/8 x 1/4 inch |
2 |
|
|
7 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
3 |
|
|
8 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
|
9 |
173-2210
|
Jet body |
4 |
|
|
10 |
173-5419
|
Spray nozzle (rear) |
2 |
|
|
11 |
173-8641
|
Promax jet 11001 |
2 |
|
|
12 |
273-0210
|
Dual bracket |
1 |
|
|
13 |
173-2555
|
Washer 7/16 x 3/16 inch rubber |
4 |
|
|
14 |
273-0211
|
Bumper bracket |
1 |
|
|
15 |
999-0967
|
Bolt 5/16-18 x 3/4 carriage head stainless steel |
1 |
|
|
16 |
273-0212
|
Spacer plate |
1 |
|
|
