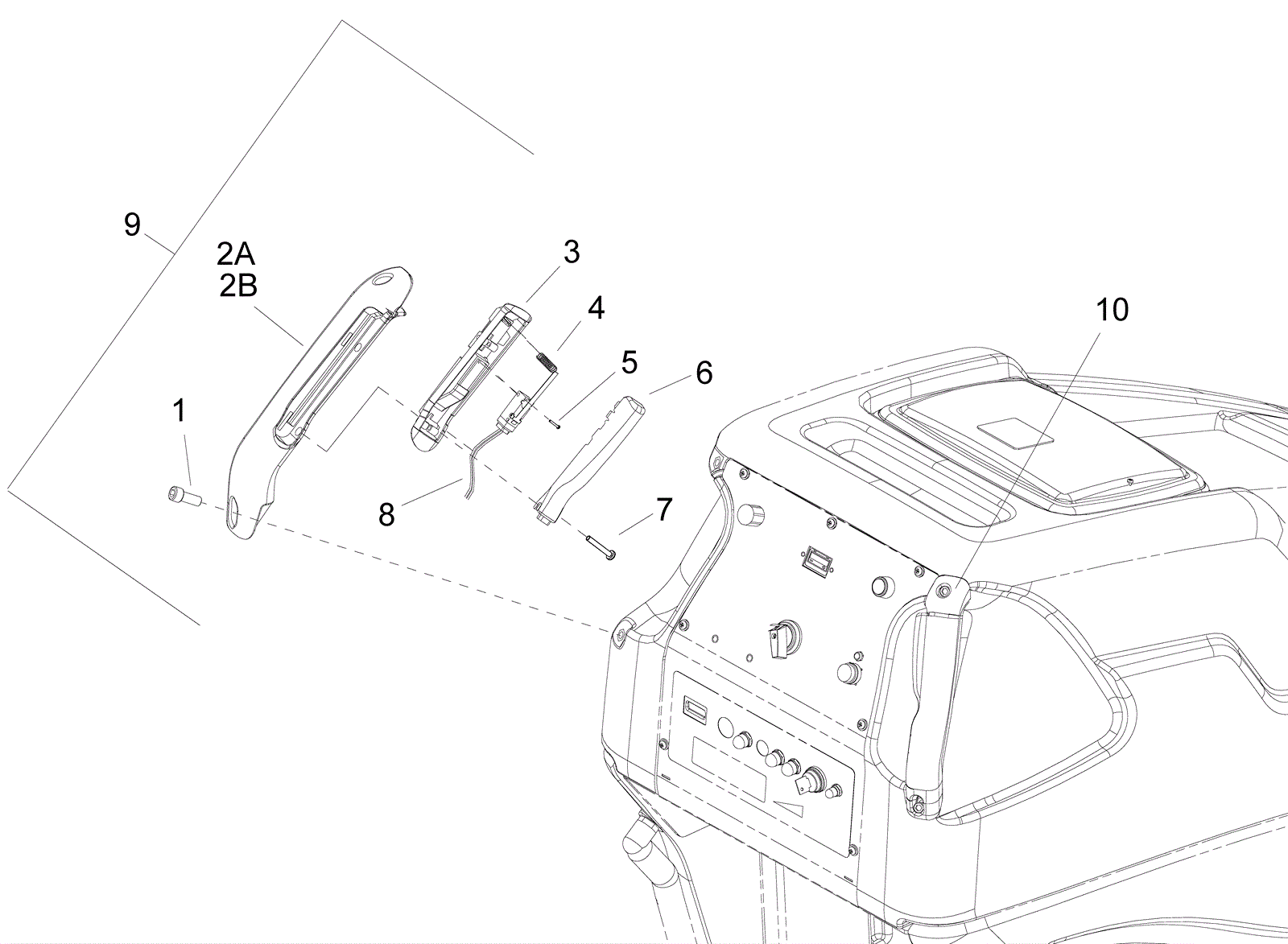

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
999-0130
|
Screw 5/16-18 x 3/4 socket head alloy plain finish |
$0.99
|
4 |
|
ships same day |
2a |
173-8225
|
Left hand handle |
$149.60
|
1 |
|
ships same day |
2b |
173-8230
|
Right hand handle |
$137.50
|
1 |
|
ships same day |
3 |
273-0152
|
Button housing |
$19.58
|
2 |
|
usually ships 7-19 days |
4 |
173-8227
|
Compression spring |
$9.02
|
2 |
|
usually ships 7-19 days |
5 |
273-0153
|
Screw 4-40 x 5/8 |
$1.40
|
2 |
|
usually ships 1-5 days |
6 |
173-8228
|
Propel button |
$18.04
|
2 |
|
ships same day |
7 |
999-0080
|
Screw 8-32 x 7/8 round head slotted zinc plated |
$0.99
|
4 |
|
ships same day |
8 |
173-8226
|
Momentary switch with lever |
$108.35
|
2 |
|
ships same day |
9 |
173-4064
|
Left hand propel handle assembly |
$251.90
|
1 |
|
usually ships 7-19 days |
10 |
173-4065
|
Right hand propel handle assembly |
$242.00
|
1 |
|
usually ships 7-19 days |
