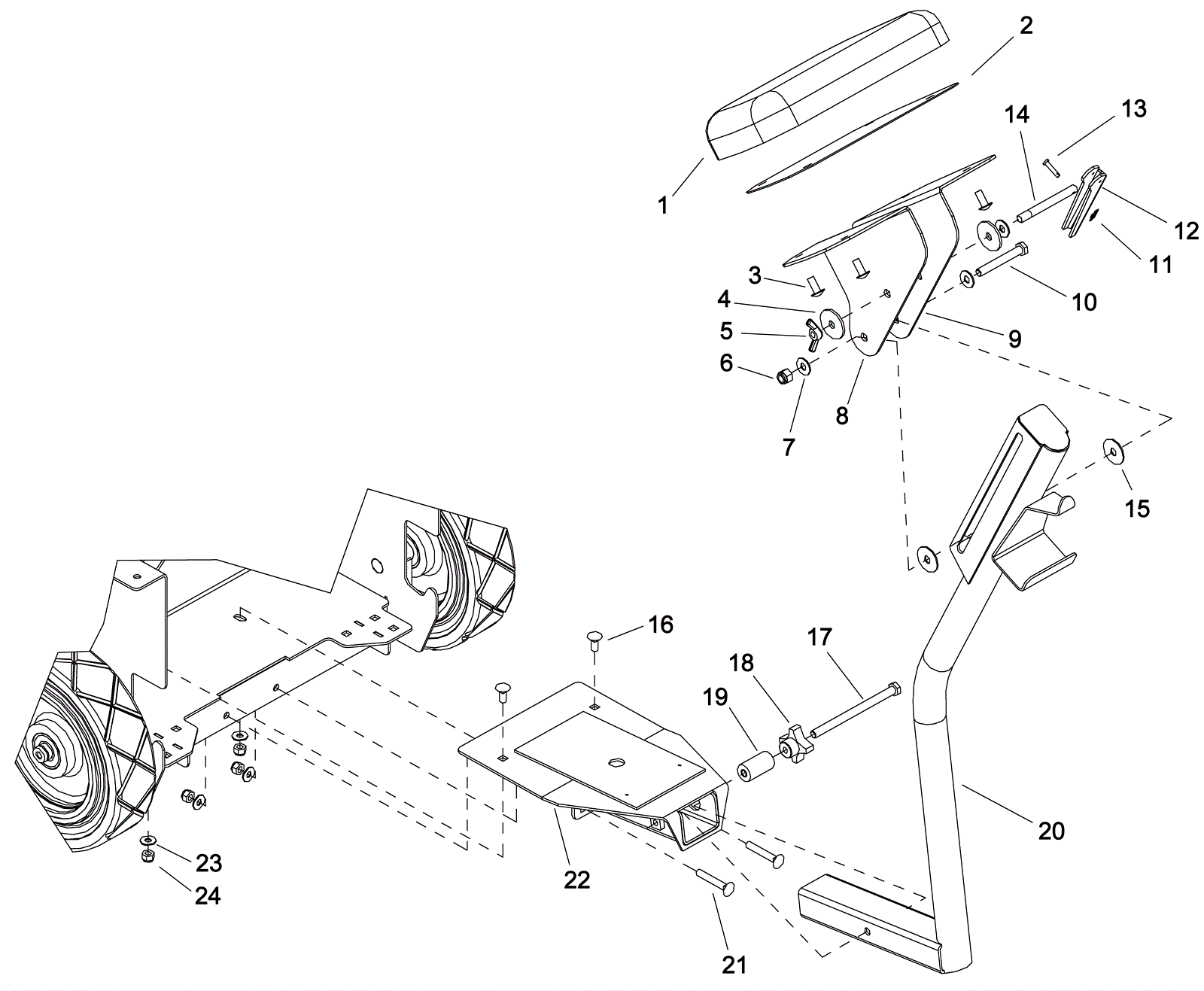

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
173-5632
|
Rest pad |
1 |
|
|
2 |
173-5633
|
Seat plate |
1 |
|
|
3 |
999-1146
|
Screw 5/16-18 x 3/4 truss head phillips stainless steel |
4 |
|
|
4 |
999-0126
|
Washer 1/2 split lock |
2 |
|
|
5 |
999-0163
|
Nut 3/8-16 wing zinc plated |
1 |
|
|
6 |
999-1482
|
Nut 3/8-16 nylon lock stainless steel |
1 |
|
|
7 |
999-0120
|
Washer 3/8 SAE flat |
3 |
|
|
8 |
173-5635
|
Left hand seat bracket |
1 |
|
|
9 |
173-5636
|
Right hand seat bracket |
1 |
|
|
10 |
173-5637
|
Screw 3/8-16 x 2 3/4 hex head cap stainless steel |
1 |
|
|
11 |
173-1130
|
Cotter ring |
1 |
|
|
12 |
173-0418
|
Handle locking lever |
1 |
|
|
13 |
173-0419
|
Clevis pin (OBSOLETE) |
1 |
|
|
14 |
173-5638
|
4 inch locking rod |
1 |
|
|
15 |
173-3944
|
Washer 2/5 nylon |
2 |
|
|
16 |
999-0967
|
Bolt 5/16-18 x 3/4 carriage head stainless steel |
2 |
|
|
17 |
173-5639
|
Screw 3/8-16 x 5 flat hex head cap stainless steel |
1 |
|
|
18 |
173-1025
|
Knob |
1 |
|
|
19 |
173-5640
|
Spacer |
1 |
|
|
20 |
173-5641
|
Seat mounting post |
1 |
|
|
21 |
999-0476
|
Screw 5/16-18 x 2 carriage head grade 5 zinc |
2 |
|
|
22 |
173-5643
|
Seat mounting receiver assembly |
1 |
|
|
23 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
|
24 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
4 |
|
|
