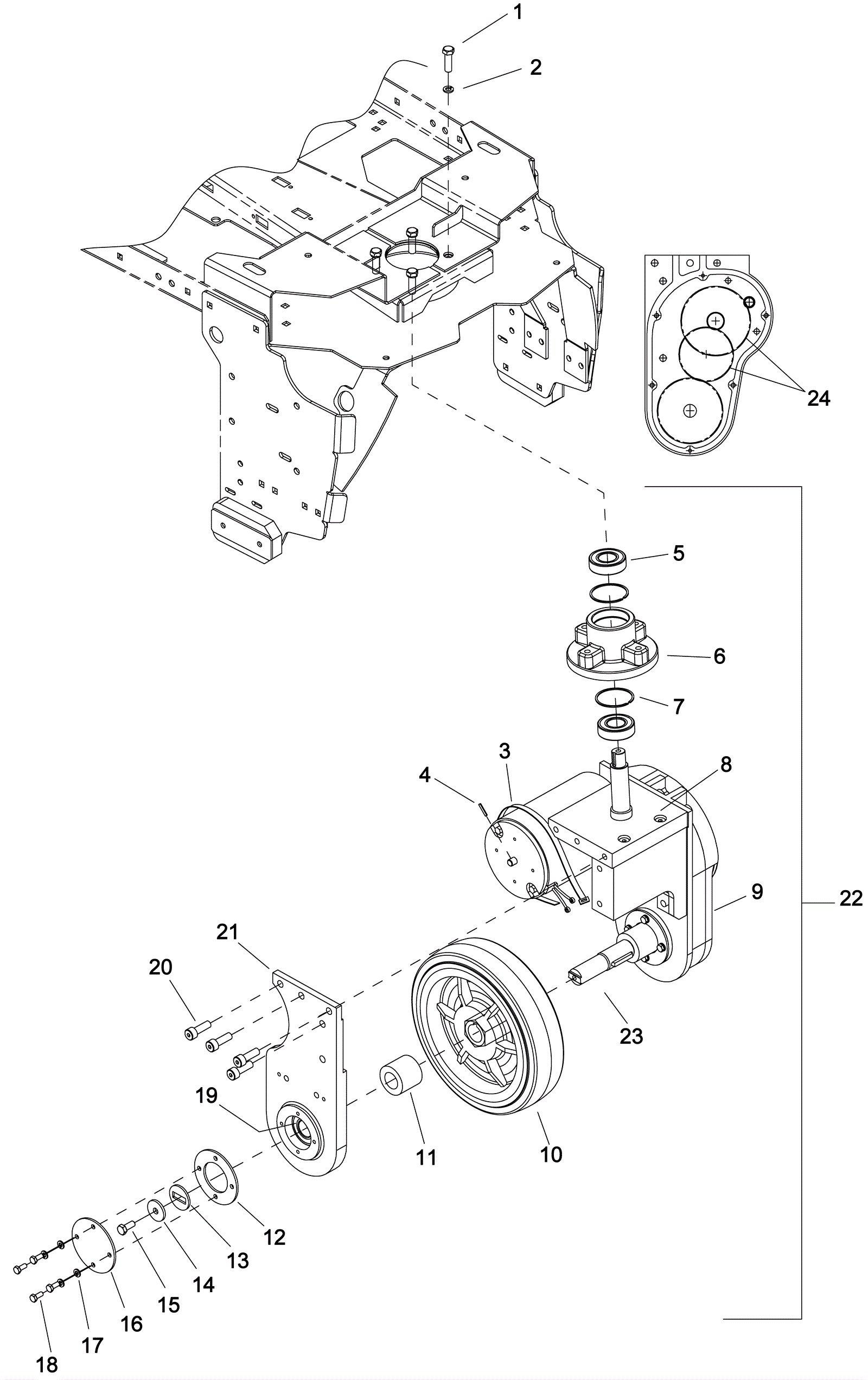

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0039
|
Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated |
4 |
|
|
2 |
999-0034
|
Washer 3/8 split lock plain finish |
4 |
|
|
3 |
173-3305
|
Cable tie |
1 |
|
|
4 |
173-2019
|
Roll pin |
1 |
|
|
5 |
173-4756
|
Bearing |
3 |
|
|
6 |
173-5567
|
Steering hub |
1 |
|
|
7 |
173-4746
|
Internal snap ring |
2 |
|
|
8 |
173-5591
|
Pivot shaft assembly |
1 |
|
|
9a |
273-5987
|
Drive gear box (OBSOLETE) |
1 |
|
|
9b |
273-6270
|
Carbon brush set (OBSOLETE) |
1 |
|
|
10a |
273-6575
|
Wheel with keyway and plastic hub (gray) |
1 |
|
|
10b |
173-5589
|
Wheel with keyway and iron hub (gray) |
1 |
|
|
11 |
173-5592
|
Spacer |
1 |
|
|
12 |
173-5579
|
Bearing retainer plate |
1 |
|
|
13 |
173-5590
|
Anti-rotation washer |
1 |
|
|
14 |
999-1267
|
Washer M8 flat zinc |
1 |
|
|
15 |
999-1133
|
Bolt M8-1.25 x 20mm hex head full thread plain |
1 |
|
|
16 |
173-5582
|
Bearing cover plate |
1 |
|
|
17 |
999-0876
|
Washer M6 split lock plain finish |
4 |
|
|
18 |
173-5577
|
Screw M6-1 x 15mm hex head |
4 |
|
|
19 |
173-4756
|
Bearing |
3 |
|
|
20 |
273-5988
|
Screw M10-30mm socket head cap |
10 |
|
|
21 |
173-5578
|
Right hand drive plate |
1 |
|
|
22 |
173-5593
|
Drive motor assembly (OBSOLETE) |
1 |
(Does not include wheel or brake) |
|
23 |
273-6576
|
Drive axle |
1 |
|
|
24 |
273-6577
|
Drive gear kit (OBSOLETE) |
1 |
|
|
