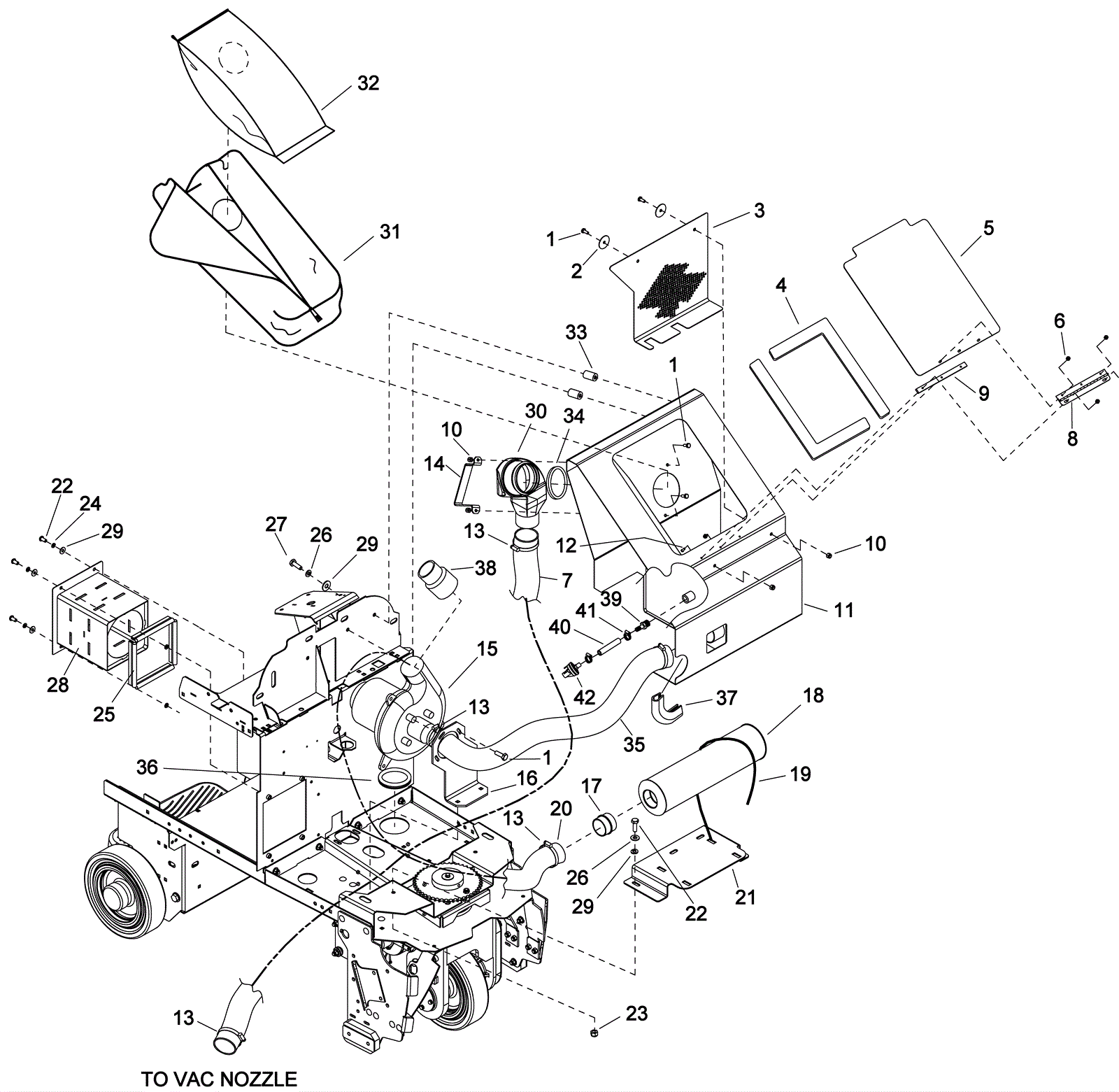

Vacuum Assembly

#PartDescription ReqNotesAvailability
1 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel 8
2 273-6214 Washer 1/4 x 1 1/2 fender plated 2
3 273-6215 Vacuum intake screen 1
4 273-6216 Vacuum box lid gasket (OBSOLETE) 2
5 273-6217 Vacuum box lid (OBSOLETE) 1
6 999-1036 Nut 8-32 hex NTM nylon insert jam lock stainless steel 5
7 173-5288 Vacuum hose 2.5 x 36 inch (gray) 1
8 173-8674 Access plate hinge 1
9 273-6219 Vacuum box lid spacer 1
10 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 4
11 273-6220 Vacuum box 1
13 173-0988 2 inch hose clamp 5
14 273-6222 Chute strap 1
15a 173-4365 36V 1 stage vacuum motor 1
15b 273-6223 Carbon brush (pkg 2) 2
16 273-6224 Vacuum motor mounting bracket 1
17 273-6225 Muffler adapter fitting 1
18 273-6226 Sound muffler 1
19 173-3305 Cable tie 2
20 273-6227 Vacuum hose 1
21 273-6228 Vacuum box mounting bracket 1
22 999-1232 Screw 5/16-18 x 3/4 hex head stainless steel 6
23 999-0423 Nut 5/16-18 nylon insert lock stainless steel 2
24 999-1049 Washer 1/4 split lock zinc plated 6
25 273-6229 Grip edging (OBSOLETE) 2
26 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 6
28 273-6230 Vacuum motor cover 1
29 999-0028 Washer 5/16 split lock plain finish 8
30 273-6231 Debris chute 1
31 173-5282 Cloth bag 1
32a 273-6146 HEPA paper bag (pkg of 5) 1 (OEM)
32b 173-8640 Paper bag (pkg of 10) 1 (optional) (OEM)
32c 991-9037 Paper vacuum bags (pkg of 10) 1 (NON-OEM)
33 273-5866 Spacer 2
34 273-6232 Gasket 1
35 273-6233 Vacuum hose 1
36 173-5474 Grooved grommet 1
37 173-4636 Bumper 1
38 173-3716 Hose cuff 1
39 173-7033 Plastic hosebarb 1/8 x 3/8 1
40 173-1571 Nylon hose 3/8 x 2 inch 1
41 173-2741 Hose clamp 2
42 173-9856 Vacuum switch 1
