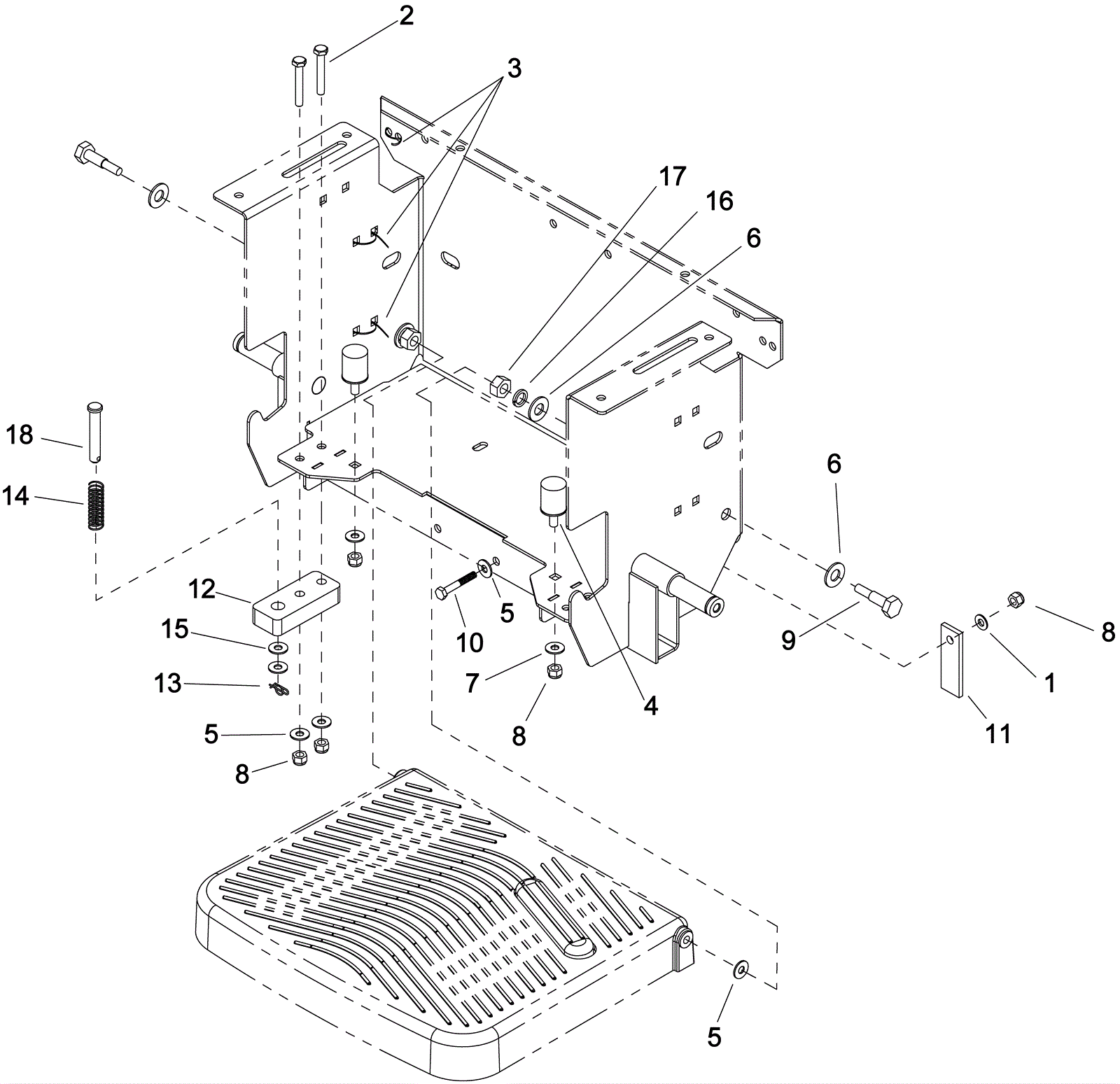

CHARIOT IVAC34ATV Pedal Platform Mounting Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-1364 Washer 5/16 x 1 fender zinc finish $0.99 1 ships same day
2 999-0591 Bolt 5/16-18 x 1 1/2 hex full thread grade 5 zinc plated $0.99 2 ships same day
3 173-3169 Wire tie $1.03 3 usually ships 1-5 days
4 173-5509 Rubber bumper $41.80 2 usually ships 1-5 days
5 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 5 ships same day
6 999-1346 Washer M12 flat stainless steel $0.99 4 ships same day
7 173-3985 Washer 7/16 flat stainless steel $1.21 2 usually ships 7-19 days
8 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 5 ships same day
9 173-5511 Stub axle $26.18 2 usually ships 1-5 days
10 999-0893 Screw 5/16-18 x 2 hex head stainless steel $0.99 1 ships same day
11 173-5517 Static strap $36.85 1 usually ships 1-5 days
12 173-5512 Base plate (OBSOLETE) $43.56 1 usually ships 7-19 days
13 173-1659 1/2 inch cotter ring (OBSOLETE) $2.90 1 usually ships 7-19 days
14 189-0353 Compression spring $15.65 1 usually ships 7-19 days
15 999-0566 Washer 1/2 flat nylon $0.99 2 ships same day
16 173-5515 Washer M12 spring lock $1.21 2 usually ships 1-5 days
17 173-3878 Nut M12 x 1.75 hex $3.58 2 usually ships 1-5 days
18 173-5516 Clevis pin (OBSOLETE) $14.74 1 usually ships 7-19 days
