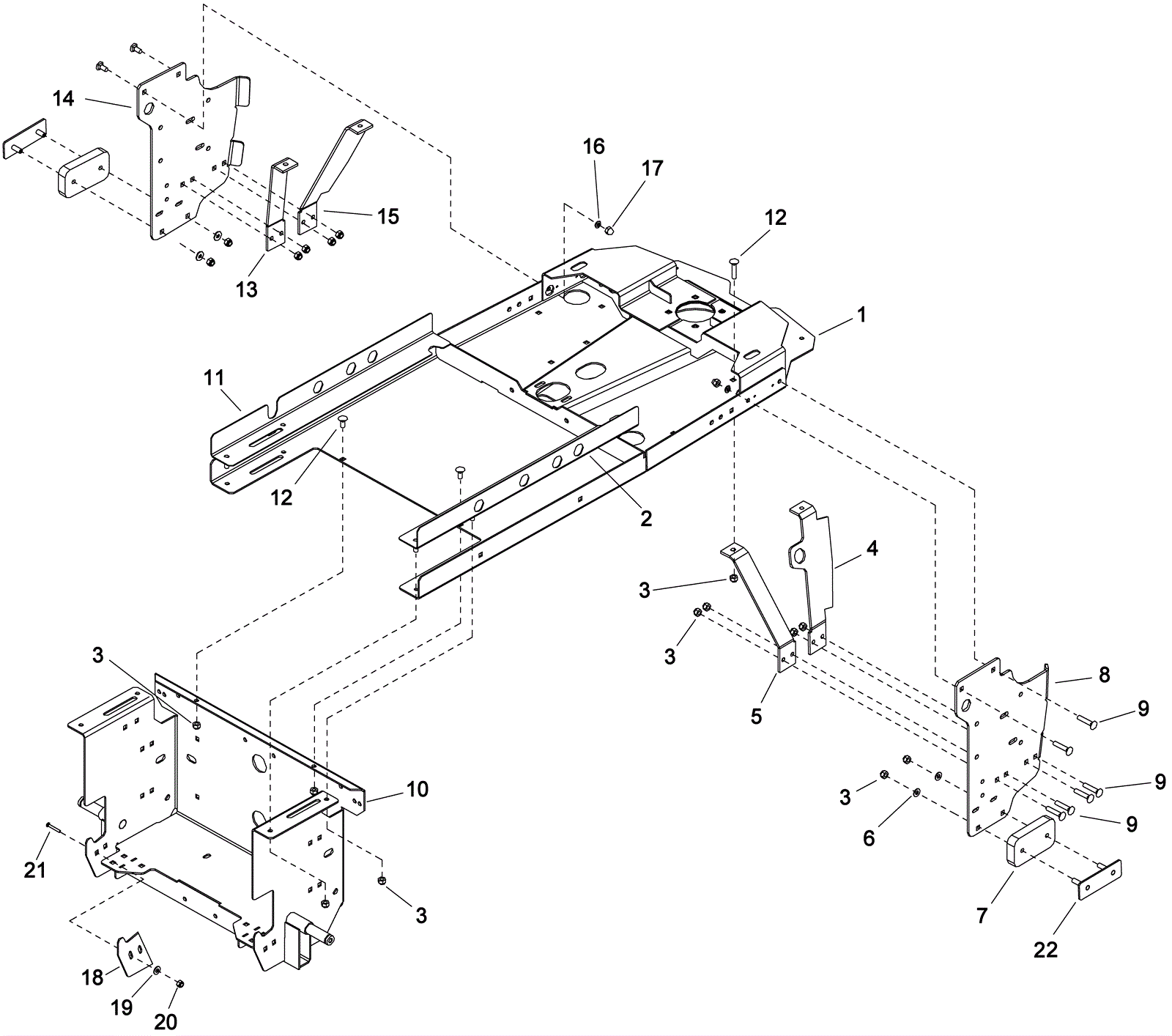

CHARIOT IVAC34ATV Lower Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-6196 Main frame $775.00 1 usually ships 1-5 days
2 173-6037 Left hand slide tray $127.00 1 usually ships 1-5 days
3 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 18 ships same day
4 173-5458 Right hand front brace bracket $58.00 1 usually ships 1-5 days
5 173-5459 Right hand rear bracket $57.00 1 usually ships 1-5 days
6 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 4 ships same day
7 173-5460 Tipping bar pad $58.50 2 usually ships 7-19 days
8 173-5461 Right hand linkage bracket $107.00 1 usually ships 1-5 days
9 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 16 ships same day
10 173-5462 Rear axle weldment $597.00 1 usually ships 1-5 days
11 173-5463 Right hand slide tray $127.00 1 usually ships 1-5 days
12 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 6 ships same day
13 173-5465 Left hand rear bracket $57.00 1 usually ships 1-5 days
14 173-5466 Left hand linkage bracket $107.00 1 usually ships 1-5 days
15 173-5467 Left hand front brace bracket $60.50 1 usually ships 1-5 days
16 999-0028 Washer 5/16 split lock plain finish $0.99 4 ships same day
17 999-1458 Nut 5/16-18 acorn nickel plated $0.99 4 ships same day
18 173-5468 Plate $15.10 2 usually ships 1-5 days
19 999-0123 Washer 1/4 SAE flat zinc plated $0.99 4 ships same day
20 999-0304 Nut 1/4-20 nylon lock jam stainless steel $0.99 4 ships same day
21 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel $1.50 4 ships same day
22 173-7193 Pad retainer plate $32.00 2 usually ships 1-5 days
