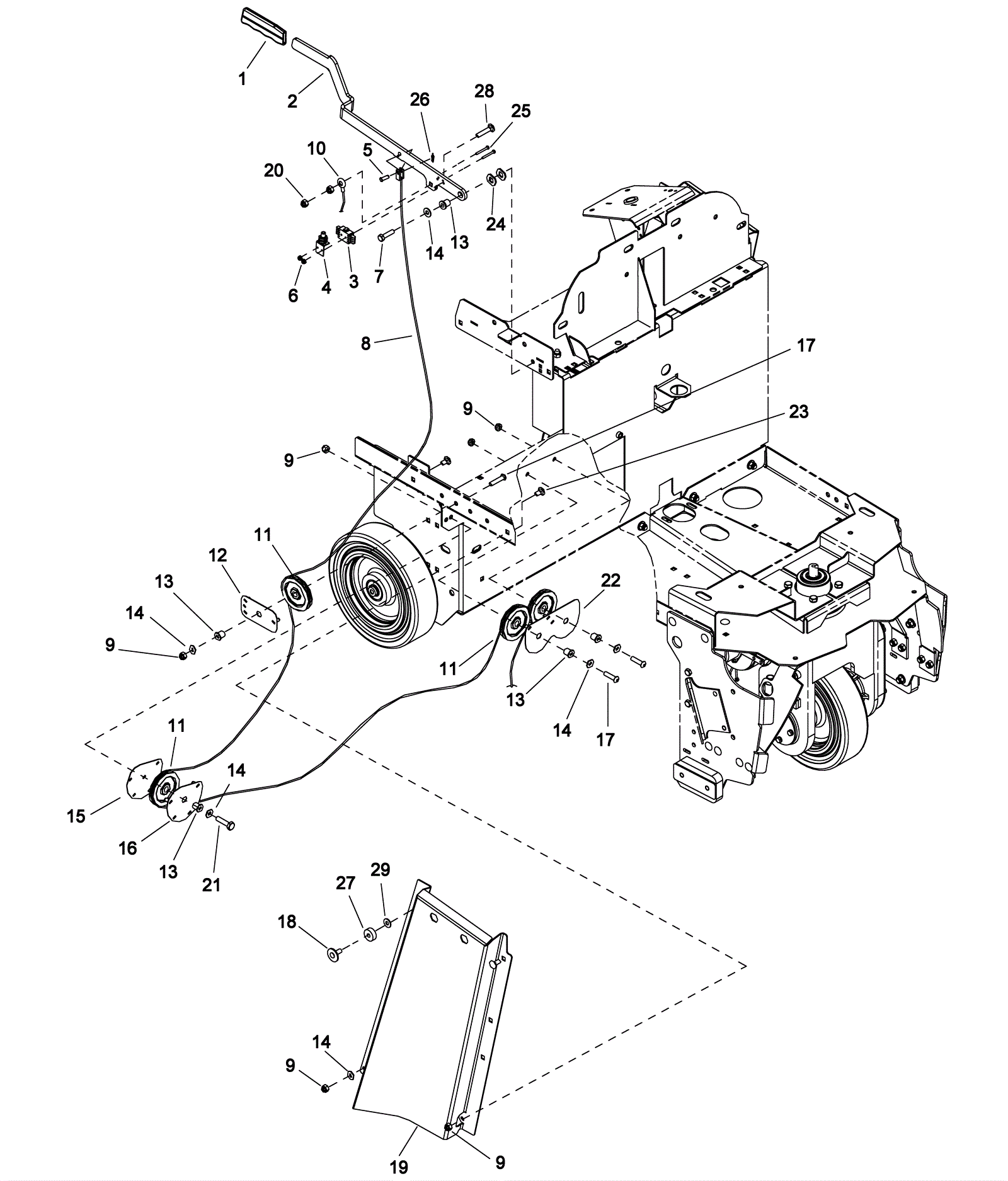

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
173-8254
|
Handle grip (blue) |
1 |
|
|
2 |
173-6083
|
Squeegee lifting handle |
1 |
|
|
3 |
273-0065
|
Snap switch |
1 |
|
|
4 |
273-6186
|
Switch plunger |
1 |
|
|
5 |
173-3153
|
Clevis pin |
1 |
|
|
6 |
999-0295
|
Nut 4-40 nylon insert lock stainless steel |
2 |
|
|
7 |
999-0688
|
Bolt 5/16-18 x 1 1/4 hex head stainless steel |
1 |
|
|
8a |
273-6571
|
Lifting cable kit (OBSOLETE) |
1 |
(includes 8b-8d and 273-7639) |
|
8b |
273-4035
|
Cable |
1 |
|
|
8c |
173-5154
|
Bolt 3/8OD x 5/8L shoulder |
1 |
|
|
8d |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
1 |
|
|
9 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
8 |
|
|
10 |
173-7529
|
Squeegee cable assembly (OBSOLETE) |
1 |
|
|
11 |
273-0021
|
Plastic pulley |
4 |
|
|
12 |
273-5945
|
Pulley retainer bracket |
1 |
|
|
13 |
273-0024
|
Flanged bearing |
5 |
|
|
14 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
6 |
|
|
15 |
273-0028
|
Pulley retainer plate |
1 |
|
|
16 |
273-0016
|
Mounting plate |
1 |
|
|
17 |
173-3969
|
Bolt 5/16-18 x 1 1/4 shoulder bolt cap (OBSOLETE) |
4 |
|
|
18 |
173-6088
|
Handle retainer |
1 |
|
|
19 |
173-6087
|
Right hand channel bracket |
1 |
|
|
20 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
2 |
|
|
21 |
999-0552
|
Bolt 5/16-18 x 1 1/2 hex head stainless steel |
1 |
|
|
22 |
273-0025
|
Pulley mounting plate |
1 |
|
|
23 |
999-1343
|
Screw 5/16-18 x 5/8 hex head stainless steel |
1 |
|
|
24 |
173-2815
|
Washer 33/64 x 1 thrust |
2 |
|
|
25 |
999-0983
|
Screw 4-40 x 1 pan head phillips zinc plated |
2 |
|
|
26 |
999-1158
|
Washer #6 flat stainless steel |
2 |
|
|
27 |
173-5480
|
Spacer |
1 |
|
|
28 |
999-0252
|
Screw 5/16-18 x 1 carriage head grade 5 zinc |
1 |
|
|
29 |
999-1364
|
Washer 5/16 x 1 fender zinc finish |
1 |
|
|
N/S |
273-7639
|
Deck lifting bracket |
1 |
|
|
