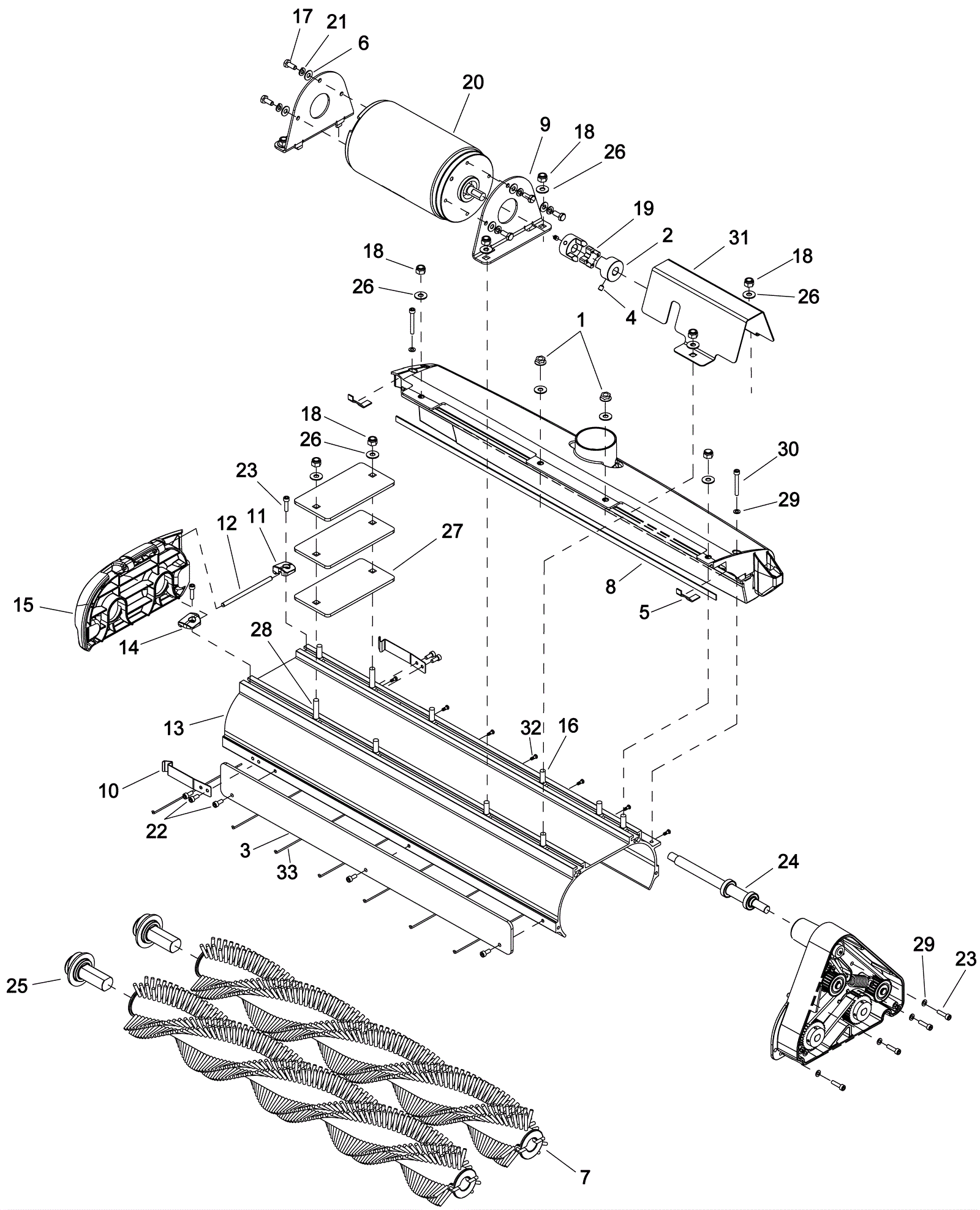

Brush Deck Assembly

#PartDescription ReqNotesAvailability
1 173-2465 Nut 5/16 external snap (OBSOLETE) 2
2 273-2050 2 jaw coupler 2
3 273-6545 Counterbalance plate (OBSOLETE) 1
4 999-1413 Screw M6-1 x 8mm socket cup point set 2
5 273-6546 Gasket 2
6 999-0123 Washer 1/4 SAE flat zinc plated 6
7a 273-2051 28 inch standard brush - CYLINDRICAL 2
7b 273-2052 28 inch soft floor brush - CYLINDRICAL 2
7c 273-2053 28 inch hard floor brush - CYLINDRICAL 2
8 273-6547 Gasket 1
9 273-6548 Motor mounting bracket 2
10 273-6549 Spring clip 2
11 273-6550 Rear hinge cap 1
12 273-6551 Dowel pin 1
13 273-6552 Brush extrusion 1
14 273-6553 Front hinge cap 1
15 273-6554 Brush release door 1
16 999-0252 Screw 5/16-18 x 1 carriage head grade 5 zinc 10
17 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 6
18 999-0423 Nut 5/16-18 nylon insert lock stainless steel 12
19 273-5611 Spider coupler 1
20 173-1743 Brush motor 1
21 999-0632 Washer 1/4 split lock stainless steel 6
22 273-5734 Screw M5-.8 x 12mm socket head cap stainless steel 7
23 273-5592 Screw M5-.8 x 20mm socket head cap stainless steel 6
24 273-6555 24 inch drive shaft assembly 1
25 273-5587 Brush end cap shaft assembly 2
26 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 12
27 273-6556 Weight plate 3
28 173-5464 Screw 5/16-18 x 1 1/2 carriage head stainless steel 2
29 999-9100 Washer M5 flat stainless steel 6
30 999-1677 Screw M5-.8 x 40mm socket head stainless steel 2
31 273-6557 Shaft cover bracket 1 (after SN 10125650000020 and SN 10125790000001)
32 273-6558 Guard nipple (OBSOLETE) 7 (after SN 10125650000038 and SN 10125790000001)
33 273-6559 Guard rod (OBSOLETE) 7 (after SN 10125650000038 and SN 10125790000001)
