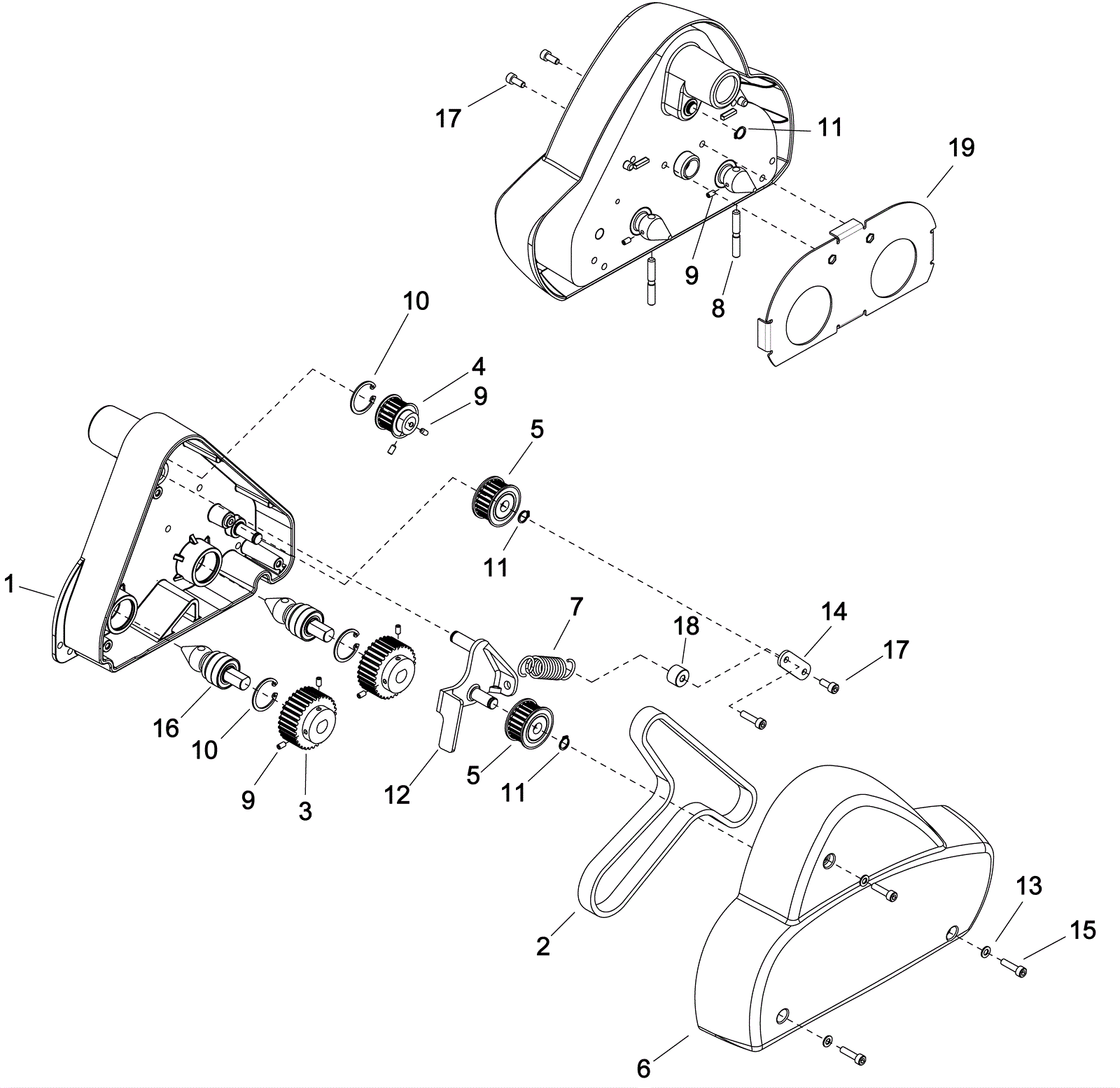

CHARIOT IVAC34ATV Drive Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-6537 Brush drive housing assembly $157.30 1 usually ships 7-19 days
2 173-7519 Belt $188.13 1 ships same day
3 273-6538 32 toothed pulley $96.80 2 usually ships 7-19 days
4 273-6539 18 toothed pulley $72.60 1 usually ships 7-19 days
5 273-6540 22 toothed pulley assembly $145.20 2 usually ships 7-19 days
6 273-6541 Drive housing cover $49.28 1 usually ships 7-19 days
7 273-5590 Tensioner spring $13.09 1 usually ships 7-19 days
8 273-5586 Brush drive shaft $8.58 2 usually ships 7-19 days
9 273-5518 Screw M4-.7 x 8mm set cup point $1.43 8 usually ships 7-19 days
10 173-4181 Snap ring $8.03 3 usually ships 7-19 days
11 173-8999 External snap ring $1.10 3 usually ships 7-19 days
12 273-5593 Tensioner arm bracket $44.22 1 usually ships 7-19 days
13 999-9100 Washer M5 flat stainless steel $5.83 3 ships same day
14 273-6542 Support plate $13.31 1 usually ships 7-19 days
15 273-5592 Screw M5-.8 x 20mm socket head cap stainless steel $4.24 4 ships same day
16 273-5599 Brush drive shaft assembly $92.96 2 ships same day
17 273-5734 Screw M5-.8 x 12mm socket head cap stainless steel $3.41 3 usually ships 7-19 days
18 273-6543 Spacer (OBSOLETE) $20.35 1 usually ships 7-19 days
19 273-6544 Brush guide plate $78.10 1 ships same day
