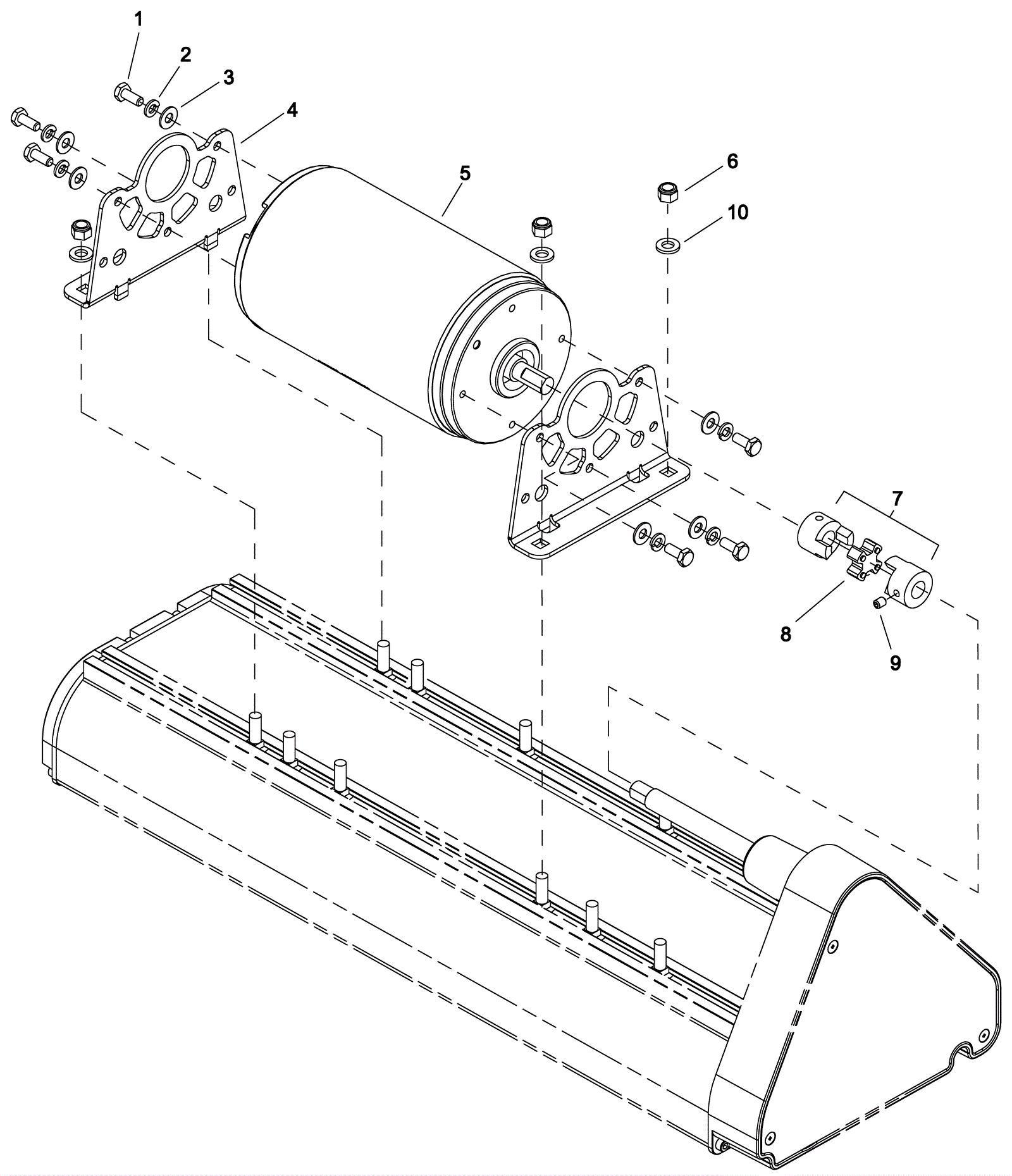

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-1032
|
Screw 1/4-20 x 5/8 hex head stainless steel |
6 |
|
|
2 |
999-0632
|
Washer 1/4 split lock stainless steel |
6 |
|
|
3 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
6 |
|
|
4 |
273-5608
|
Motor mounting bracket |
2 |
|
|
5 |
173-1743
|
Brush motor |
1 |
|
|
6 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
4 |
|
|
7 |
273-5610
|
35mm coupler kit |
2 |
(includes 8 and 9) |
|
8 |
273-5611
|
Spider coupler |
1 |
|
|
9 |
999-1413
|
Screw M6-1 x 8mm socket cup point set |
2 |
|
|
10 |
273-5613
|
Washer 5/16 x .63mm stainless steel |
4 |
|
|
