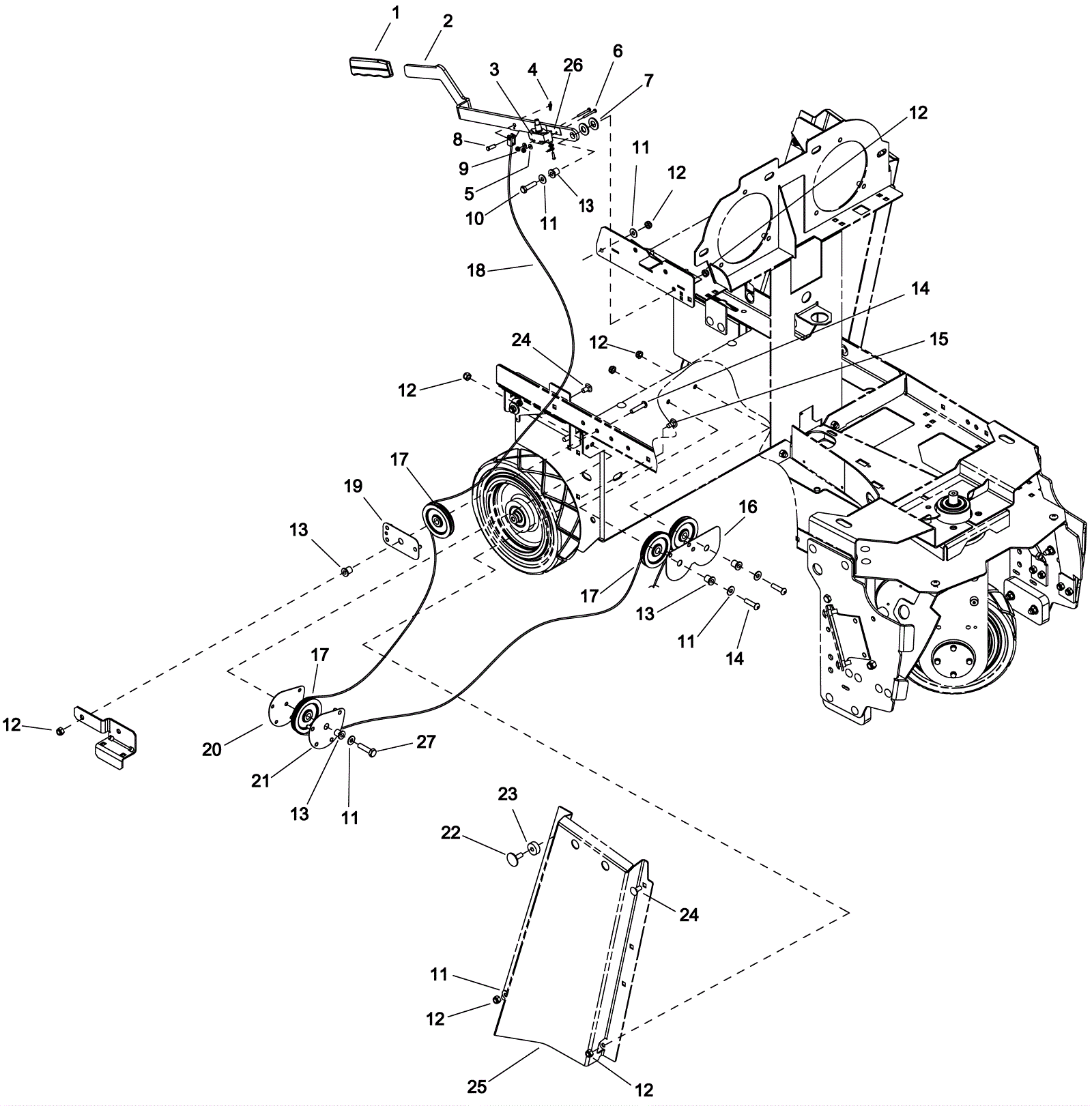

CHARIOT IEXTRACT Vacuum Shoe Lift Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 173-8253 Handle grip (orange) $8.91 1 usually ships 7-19 days
2 173-6083 Squeegee lifting handle $130.90 1 usually ships 7-19 days
3 173-2000 Switch $242.00 1 usually ships 1-5 days
4 173-1130 Cotter ring $2.42 1 ships same day
5 999-1158 Washer #6 flat stainless steel $0.99 2 ships same day
6 999-1945 Screw 6-32 x 1 1/2 pan head phillips $0.99 2 usually ships 11-24 days
7 173-2815 Washer 33/64 x 1 thrust $7.81 2 usually ships 7-19 days
8 173-3153 Clevis pin $6.38 1 usually ships 7-19 days
9 173-5037 Nut 6-32 elastic stop (OBSOLETE) $1.25 2 usually ships 7-19 days
10 999-0688 Bolt 5/16-18 x 1 1/4 hex head stainless steel $0.99 1 ships same day
11 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 7 ships same day
12 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 9 ships same day
13 273-0024 Flanged bearing $9.02 5 usually ships 7-19 days
14 173-3969 Bolt 5/16-18 x 1 1/4 shoulder bolt cap (OBSOLETE) $6.38 3 usually ships 7-19 days
15 999-1343 Screw 5/16-18 x 5/8 hex head stainless steel $1.25 1 ships same day
16 273-0025 Pulley mounting plate $42.24 1 usually ships 1-5 days
17 273-0021 Plastic pulley $52.80 4 usually ships 7-19 days
18 173-6094 Lifting cable $51.59 1 usually ships 7-19 days
19 273-5945 Pulley retainer bracket $40.70 1 usually ships 1-5 days
20 273-0028 Pulley retainer plate $16.39 1 usually ships 1-5 days
21 273-0016 Mounting plate $53.13 1 usually ships 1-5 days
22 173-6088 Handle retainer $33.66 1 usually ships 1-5 days
23 173-5480 Spacer $3.63 1 usually ships 1-5 days
24 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 2 ships same day
25 173-6087 Right hand channel bracket $251.90 1 usually ships 1-5 days
26 273-6266 Insulator switch $4.07 1 (after SN 100601400000045) usually ships 1-5 days
27 999-0552 Bolt 5/16-18 x 1 1/2 hex head stainless steel $1.45 1 ships same day
