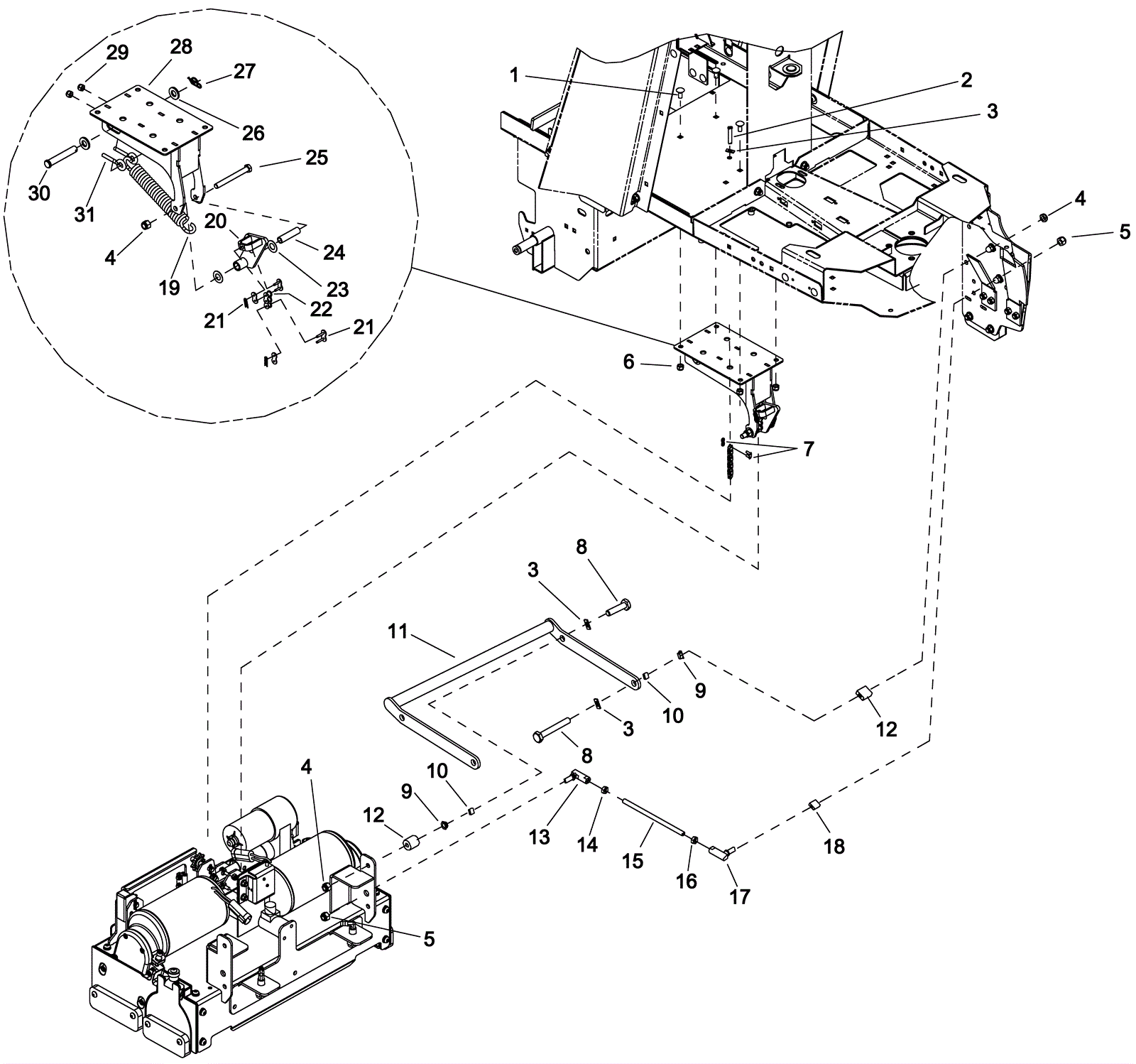

CHARIOT IEXTRACT Scrub Deck Lift Linkage Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 4 ships same day
2 173-3378 Clevis pin $6.88 1 usually ships 1-5 days
3 999-1416 Washer 7/16 flat stainless steel $0.99 5 ships same day
4 999-1391 Nut 3/8-24 nylon insert lock stainless steel $1.18 5 ships same day
5 999-1391 Nut 3/8-24 nylon insert lock stainless steel $1.18 4 ships same day
6 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 4 ships same day
7 173-3749 Connecting link $11.88 1 usually ships 1-5 days
8 999-0350 Bolt 3/8-16 x 1 1/2 hex head grade 5 zinc plated $0.99 2 ships same day
9 173-1582 Bearing $6.93 4 usually ships 7-19 days
10 173-1591 Spacer $45.21 4 usually ships 1-5 days
11 173-6057 Linkage arm $150.70 1 usually ships 1-5 days
12 273-5862 Spacer $24.64 4 usually ships 1-5 days
13 173-1584 Left ball joint $41.47 2 usually ships 7-19 days
14 173-3927 Nut 3/8-24 $3.87 2 usually ships 1-5 days
15 273-5868 Lifting rod $32.56 2 usually ships 1-5 days
16 999-0169 Nut 3/8-24 hex jam plain finish $0.99 2 ships same day
17 173-1594 Right ball joint assembly $35.20 2 usually ships 7-19 days
18 173-0526 Spacer $25.08 2 usually ships 1-5 days
19 273-2016 Spring $83.60 1 usually ships 1-5 days
20 273-2017 Pivot arm with bearings $131.76 1 usually ships 1-5 days
21 173-1065 Master link #40 1/2 chain $6.55 2 usually ships 1-5 days
22 273-2018 Chain $5.78 1 usually ships 1-5 days
23 173-3995 Washer 1/2 Fiber Glide $20.79 2 usually ships 1-5 days
24 273-2018 Chain $5.78 1 usually ships 1-5 days
25 173-5055 Screw 3/8-16 x 2 1/2 $5.10 1 usually ships 1-5 days
26 173-3974 Washer 53/100 ID X 1 OD X 3/50 $2.44 1 usually ships 1-5 days
27 173-1659 1/2 inch cotter ring (OBSOLETE) $2.90 1 usually ships 7-19 days
28 273-2019 Deck lift pivot assembly $185.90 1 usually ships 1-5 days
29 999-0304 Nut 1/4-20 nylon lock jam stainless steel $0.99 2 ships same day
30 273-2020 Clevis pin (OBSOLETE) $8.34 1 usually ships 7-19 days
31 999-1397 Bolt 1/4-20 x 2 eye zinc plated $1.96 2 usually ships 1-5 days
