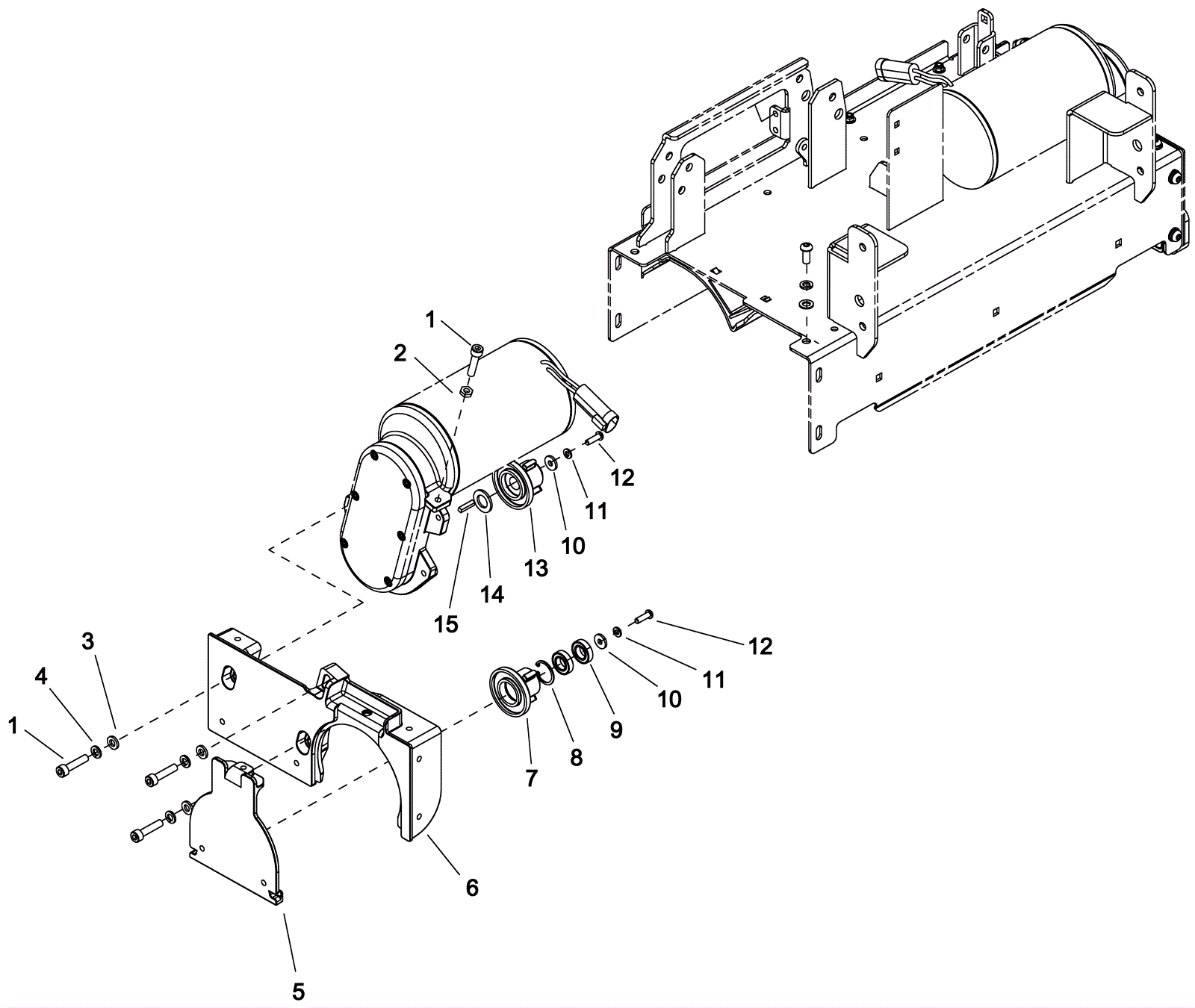

CHARIOT IEXTRACT Scrub Deck Motor Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-1621 Screw M8-1.25 x 30mm socket head stainless steel $2.30 8 usually ships 1-5 days
2 173-4185 Nut M8-1.25 hex jam stainless steel $4.13 2 usually ships 1-5 days
3 173-7455 Washer #10 x 9/16 $2.37 6 usually ships 1-5 days
4 999-0674 Washer M8 split lock plain finish $0.99 6 ships same day
5 173-4183 Brush door (OBSOLETE) $80.91 2 usually ships 7-19 days
6 173-4182 Drive housing $236.50 2 usually ships 7-19 days
7 173-4179 Brush hub $59.95 2 usually ships 7-19 days
8 173-4181 Snap ring $8.03 2 usually ships 7-19 days
9 173-4180 Ball bearing $48.40 4 usually ships 7-19 days
10 173-4178 Washer M6 flat plated (OBSOLETE) $1.45 4 usually ships 7-19 days
11 999-0876 Washer M6 split lock plain finish $0.99 4 ships same day
12 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 4 ships same day
13 173-4175 Brush drive hub $49.28 2 usually ships 7-19 days
14 173-4176 Washer M16 split lock $5.56 2 usually ships 7-19 days
15 173-1856 Square keyway $3.75 2 usually ships 7-19 days
