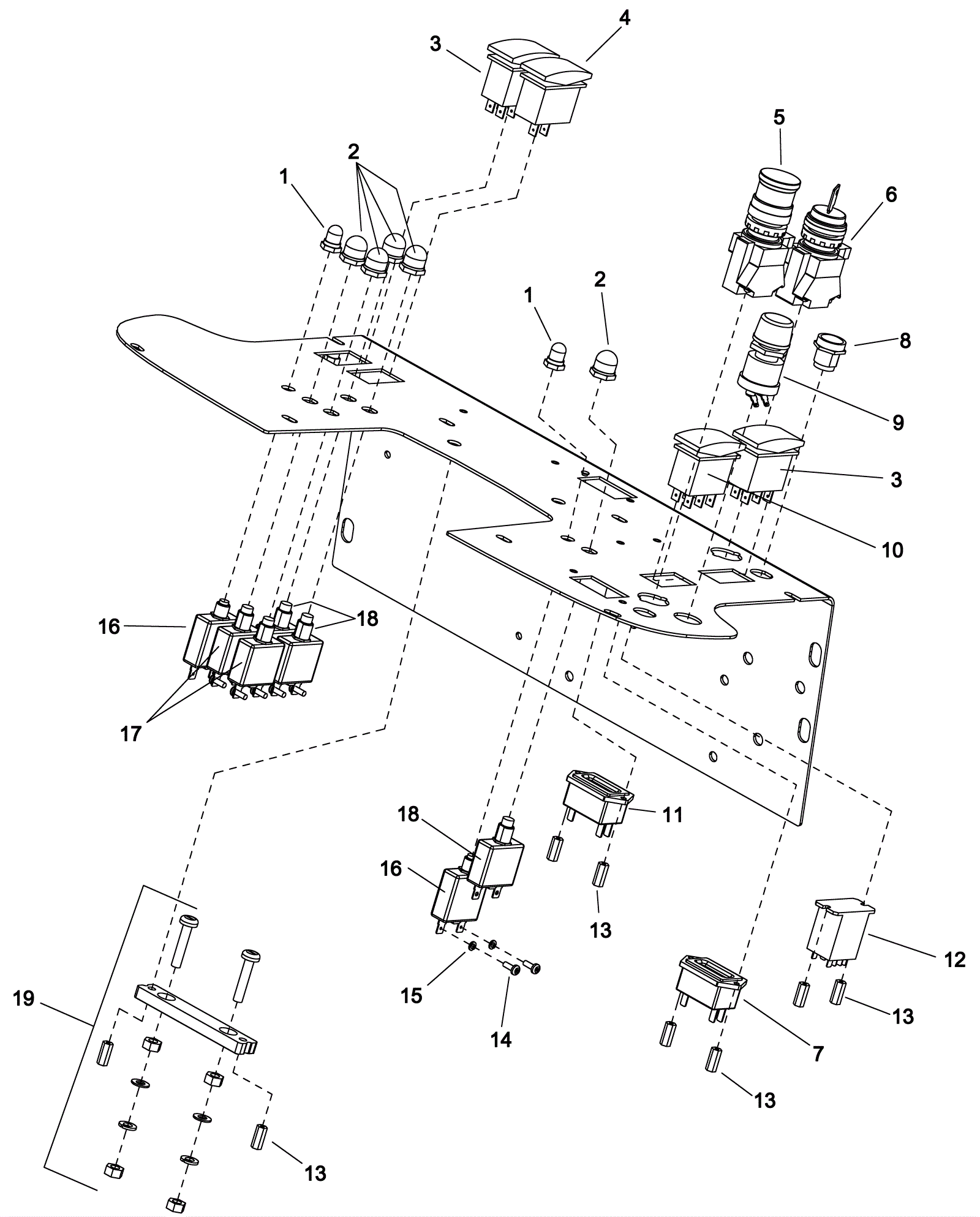

CHARIOT IEXTRACT Upper Control Panel Assembly

#PartDescriptionPriceReqNotesAvailability
1 189-0312 3/8 inch circuit breaker boot $59.75 2 usually ships 13-23 days
2a 173-1522 3/8 inch circuit breaker boot $27.07 5 ships same day
2b 991-5157 3/8 inch circuit breaker boot $2.11 5 (NON-OEM) ships same day
3 173-2277 2 position rocker switch $29.30 1 ships same day
4 189-0319 2 position rocker switch $48.61 1 usually ships 1-5 days
5 173-1531 Emergency stop switch $313.08 1 usually ships 1-5 days
6a 173-8560 Master key switch $351.92 1 usually ships 11-16 days
6b 173-3958 Key (pkg of 2) $31.90 1 ships same day
7 173-1159 36V battery charge meter $253.06 1 usually ships 11-16 days
8 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 1 ships same day
9 173-3502 Momentary switch $82.98 1 usually ships 11-16 days
10 173-4642 Fixed position rocker switch $168.31 1 ships same day
11 173-1160 LED hour meter $228.34 1 usually ships 11-16 days
12 273-0032 Relay $76.51 1 usually ships 11-16 days
13 173-1520 Nylon standoff $7.12 8 ships same day
14 999-0336 Screw 6-32 x 3/8 pan head phillips stainless steel $0.99 10 ships same day
15 999-0051 Washer #6 medium split lock $0.99 10 ships same day
16 991-1624 3amp circuit breaker $15.51 2 usually ships 8-9 days
17 991-1632 25amp circuit breaker $10.55 2 ships same day
18 991-1629 35amp circuit breaker $12.32 3 ships same day
19 173-4647 Shunt mounting block $31.66 1 (includes 13) usually ships 1-5 days
