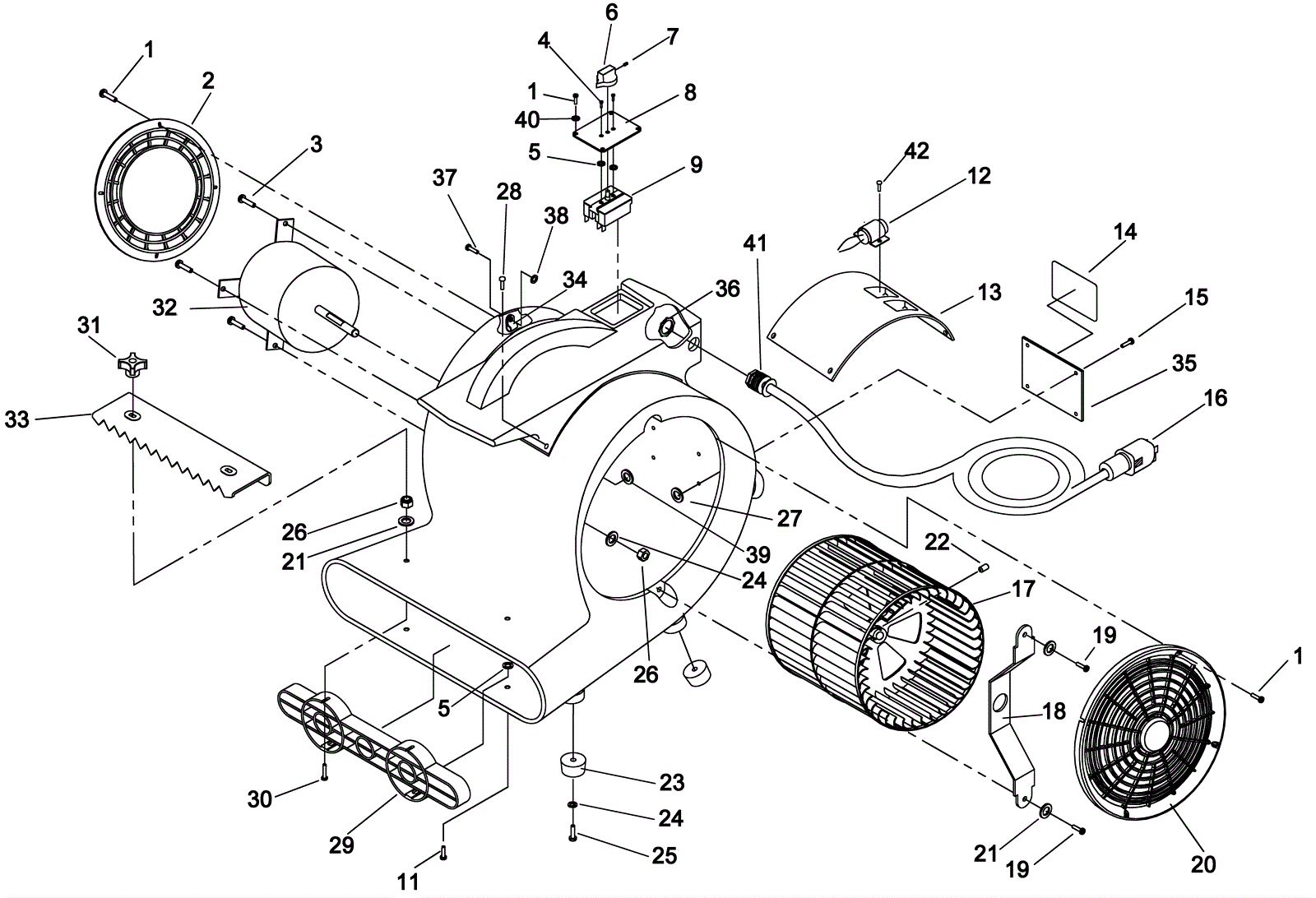

AIR MOVER 3 Entire Assembly

#PartDescriptionPriceReqNotesAvailability
1 173-9567 Screw M4 x 15mm pan head $0.99 12 usually ships 11-15 days
2 173-9568 9 inch guard $22.59 1 usually ships 11-15 days
3 273-5418 Screw M6-1 x 16mm flat head $0.99 2 usually ships 1-5 days
4 999-1423 Screw #8-32 x 1/4 pan head phillips stainless steel $0.99 2 ships same day
5 999-9089 Washer M4 flat stainless steel $0.99 7 ships same day
6 173-9570 Switch knob (OBSOLETE) $7.15 1 usually ships 11-15 days
7 173-9571 Screw M3-.5 x 8mm set $1.90 1 usually ships 11-15 days
8 173-9572 Switch plate $5.53 1 usually ships 11-15 days
9 173-9573 3 speed rotary switch $46.85 1 usually ships 11-15 days
12a 173-9576 Capacitor $68.86 1 usually ships 11-15 days
12b 173-9574 Capacitor clamp $3.75 1 usually ships 11-15 days
13 173-9577 Inner plate $4.95 1 usually ships 1-5 days
14 173-0806 Warning decal $4.07 1 usually ships 1-5 days
15 173-9578 Rivet M3 x 12mm $0.99 4 usually ships 1-5 days
16a 173-9579 14/3 power cord 25 foot $130.65 1 (OEM) usually ships 11-15 days
16b 991-5005 14/3 replacement power cord 50 foot (yellow) $108.51 1 (NON-OEM) (does not include strain relief) ships same day
17 227-0005 Squirrel cage fan $67.09 1 usually ships 11-15 days
18 173-9580 Motor shaft bracket $12.00 1 ships same day
19 173-9581 Screw M6-1 x 15mm pan head phillips $0.99 2 usually ships 11-15 days
20 173-9582 10 inch guard $22.59 1 usually ships 11-15 days
21 999-1261 Washer M6 flat stainless steel $0.99 4 ships same day
22 999-1339 Screw M8-1.25 x 8mm set cup point $0.99 1 ships same day
23 227-0006 Blower foot $0.99 4 (for model without handle) ships same day
24 173-4743 Washer M6 pleated $3.45 8 (for model without handle) usually ships 1-5 days
25 999-1421 Screw M6-1 x 15mm pan head phillips zinc $0.99 4 (for model without handle) ships same day
26 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 6 ships same day
27 273-5897 Washer M3 flat (OBSOLETE) $0.99 4 usually ships 1-5 days
28 273-5898 Rivet M4 x 18mm $3.03 4 usually ships 1-5 days
29 173-9587 Front guard $22.13 1 ships same day
30 173-9588 Screw M6-1 x 40mm $2.83 2 usually ships 11-15 days
31 173-9589 Knob $4.24 2 usually ships 11-15 days
32b 173-9590 115V 1HP 3 speed motor $507.29 1 ships same day
33 173-9591 Clamp $5.50 1 usually ships 11-15 days
34 173-1800 5/16 nylon clamp (OBSOLETE) $0.99 1 usually ships 11-15 days
35 273-5421 Warning decal plate (OBSOLETE) $11.73 1 usually ships 1-5 days
36 173-9592 Washer M18 star $1.98 1 usually ships 1-5 days
37 173-9593 Rivet M5 x 20mm $1.32 1 usually ships 1-5 days
38 999-9100 Washer M5 flat stainless steel $5.83 1 ships same day
39 999-9089 Washer M4 flat stainless steel $0.99 4 ships same day
40 999-1404 Washer M4 internal star lock stainless steel $0.99 4 ships same day
41 173-2845 Strain relief $21.78 1 usually ships 11-15 days
42 273-5900 Rivet M4 x 10mm $1.39 2 usually ships 1-5 days
N/S 273-5899 Washer M4 internal star lock zinc plated $1.69 ships same day
