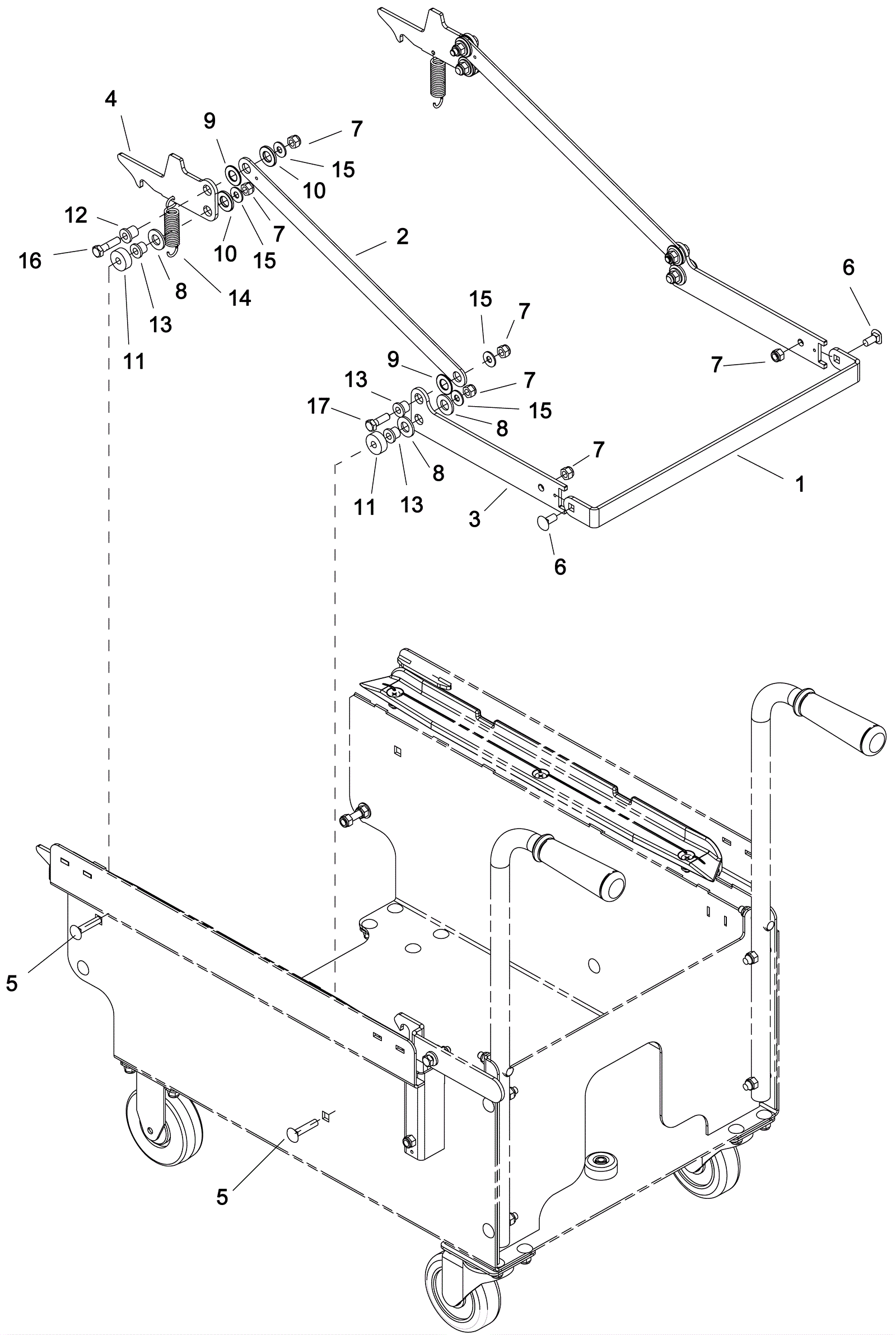

CHARIOT 3 IEXTRACT 26 DUO Battery Cart Bracket Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-3406 Pedal bracket $77.00 1 usually ships 1-5 days
2 273-3407 Latch link plate $43.56 2 usually ships 1-5 days
3 273-3408 Pedal link plate $31.46 2 usually ships 1-5 days
4 273-3409 Latch plate $24.53 2 usually ships 1-5 days
5 173-5464 Screw 5/16-18 x 1 1/2 carriage head stainless steel $5.08 4 usually ships 1-5 days
6 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 2 ships same day
7 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 10 ships same day
8 173-2815 Washer 33/64 x 1 thrust $7.81 6 usually ships 14-22 days
9 173-3964 Thrust washer $6.44 4 ships same day
10 173-3963 Washer 1/2 thrust $7.32 4 usually ships 14-22 days
11 173-5480 Spacer $3.63 4 usually ships 1-5 days
12 273-0024 Flanged bearing $9.02 2 usually ships 14-22 days
13 173-3116 Flanged bearing $8.47 6 usually ships 14-22 days
14 173-8442 Extension spring $27.45 2 usually ships 14-22 days
15 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 8 ships same day
16 999-0688 Bolt 5/16-18 x 1 1/4 hex head stainless steel $0.99 2 ships same day
17 999-0424 Bolt 5/16-18 x 1 hex head stainless steel $0.99 2 ships same day
