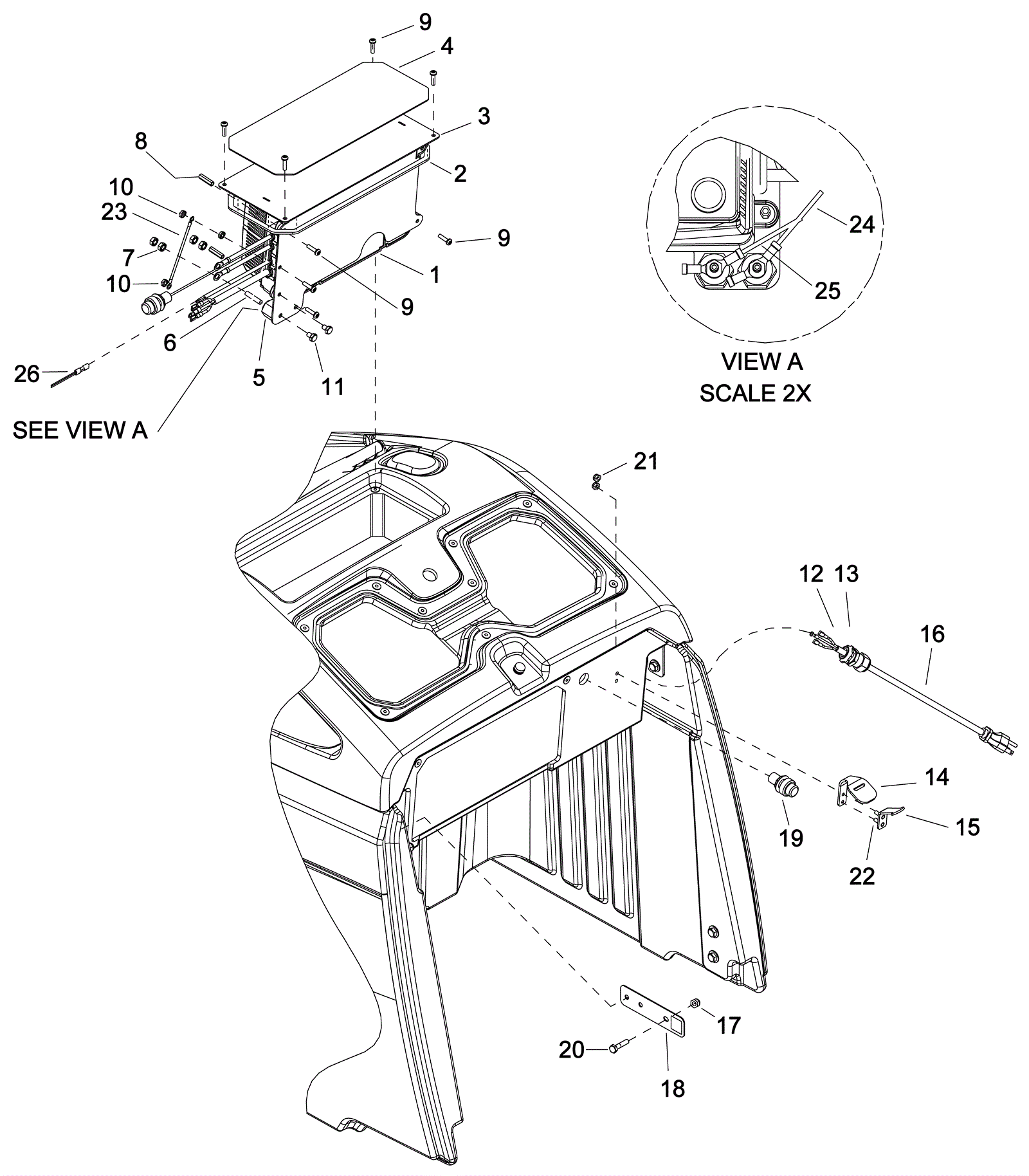

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
273-3443
|
36V 20amp onboard SPE charger |
1 |
|
|
2 |
273-3199
|
Gasket |
1 |
|
|
3 |
273-3444
|
Onboard charger mounting plate |
1 |
|
|
4 |
273-3197
|
Console pad |
1 |
|
|
5 |
173-1145
|
Insulated stand-off |
2 |
|
|
6 |
999-0096
|
Screw 1/4-20 x 1/4 cup point socket set plain finish |
2 |
|
|
7 |
999-1466
|
Nut 1/4-20 lock with external toothed lockwasher SS |
4 |
|
|
8 |
273-3445
|
Nylon standoff |
3 |
|
|
9 |
999-1044
|
Screw 10-32 x 3/4 pan head phillips stainless steel |
8 |
|
|
10 |
173-2472
|
Nut 10-32 with star washer |
3 |
|
|
11 |
173-5475
|
Screw 1/4-20 x 3/8 hex head cap plated |
2 |
|
|
12 |
173-2478
|
Nut 1/2 conduit nickel plated thread (OBSOLETE) |
1 |
|
|
13 |
173-0682
|
Strain relief (OBSOLETE) |
1 |
|
|
14 |
273-3446
|
Cord strap |
1 |
|
|
15 |
273-3447
|
Cord bracket |
1 |
|
|
16 |
273-3448
|
16/3 power cord assembly 6 foot (black) |
1 |
|
|
17 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
1 |
|
|
18 |
273-3449
|
Locking plate |
1 |
|
|
19 |
273-3450
|
Onboard battery charger meter |
1 |
|
|
20 |
999-0506
|
Bolt 1/4-20 x 1 1/2 hex head stainless steel |
1 |
|
|
21 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
2 |
|
|
22 |
273-3451
|
Clinch stud |
2 |
|
|
23 |
273-3452
|
25 inch wire (green) |
1 |
|
|
24 |
273-3453
|
20 inch wire (black) |
1 |
|
|
25 |
273-3454
|
20 inch wire (red) |
1 |
|
|
26 |
273-3455
|
Onboard charger interupting wiring assembly |
2 |
|
|
