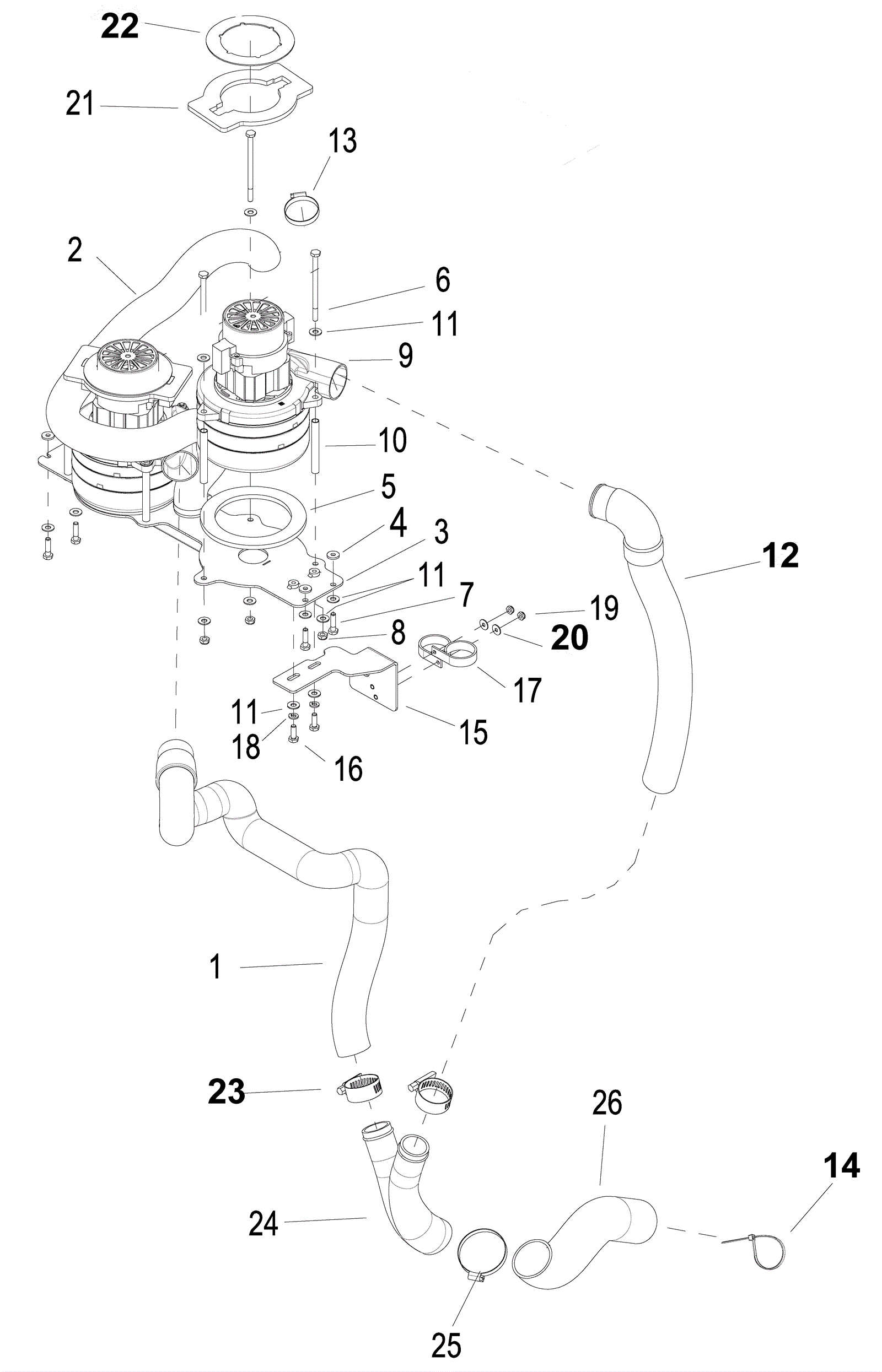

CHARIOT 3 IEXTRACT 26 DUO Vacuum Motor Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-3414 Hose assembly 1 1/2 x 36 inch $109.00 1 usually ships 1-5 days
2 273-3415 Stretch hose 1 1/2 x 30 inch $70.50 1 usually ships 1-5 days
3 273-3416 Dual vacuum motor mount $215.00 1 usually ships 1-5 days
4 273-7215 Washer 1/4 rubber $1.54 4 usually ships 1-5 days
5 173-7230 Vacuum motor gasket $27.39 2 ships same day
6 273-0249 Screw 1/4-20 x 4 1/4 hex head cap $4.86 6 usually ships 1-5 days
7 999-9072 Bolt 1/4-20 x 1 hex head cap $6.65 4 ships same day
8 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 6 ships same day
9a 173-0403 36V 3 stage vacuum motor $194.70 2 (OEM) usually ships 7-19 days
9b 991-1202 36V 3 stage vacuum motor tangential $120.27 2 (NON-OEM) ships same day
9c 173-4105 Carbon brush $11.10 1 (OEM) ships same day
9d 991-1254 Carbon brush (set of 2) $3.84 1 (NON-OEM) ships same day
10 173-8684 Vac spacer 3 1/8 $10.30 6 usually ships 7-19 days
11 999-0123 Washer 1/4 SAE flat zinc plated $0.99 18 ships same day
12a 173-5335 Vacuum hose 1 1/2 x 14 inch $73.51 1 (after SN's 10061670000258, 10061680000242, 10061780000001, 10061790000008) usually ships 7-19 days
12b 273-3417 Wirebound hose assembly 1 1/2 x 25 inch $107.00 1 (before SN's 10061670000258, 10061680000242, 10061780000001, 10061790000008) usually ships 7-19 days
13 997-2000 Hose clamp $2.37 2 ships same day
14 273-3820 11 inch cable tie $0.41 1 ships same day
15 273-3418 Vacuum hose bracket $32.00 1 usually ships 1-5 days
16 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel $0.99 2 ships same day
17 173-7223 Clamp $3.45 2 usually ships 7-19 days
18 999-0632 Washer 1/4 split lock stainless steel $0.99 2 ships same day
19 999-1504 Nut 10-24 jam insert lock stainless steel $0.90 2 ships same day
20 999-0998 Washer #10 flat stainless steel $0.99 2 ships same day
21 273-3419 Vacuum motor cover gasket $18.50 2 usually ships 1-5 days
22 273-3420 Retaining ring $9.05 2 usually ships 1-5 days
23 997-2007 Hose clamp $1.88 2 ships same day
24 273-7789 Fitting adapter $91.00 1 usually ships 7-19 days
25 273-6930 Hose clamp $3.03 1 usually ships 7-19 days
26 173-0390 Hose vac $46.10 1 usually ships 7-19 days
