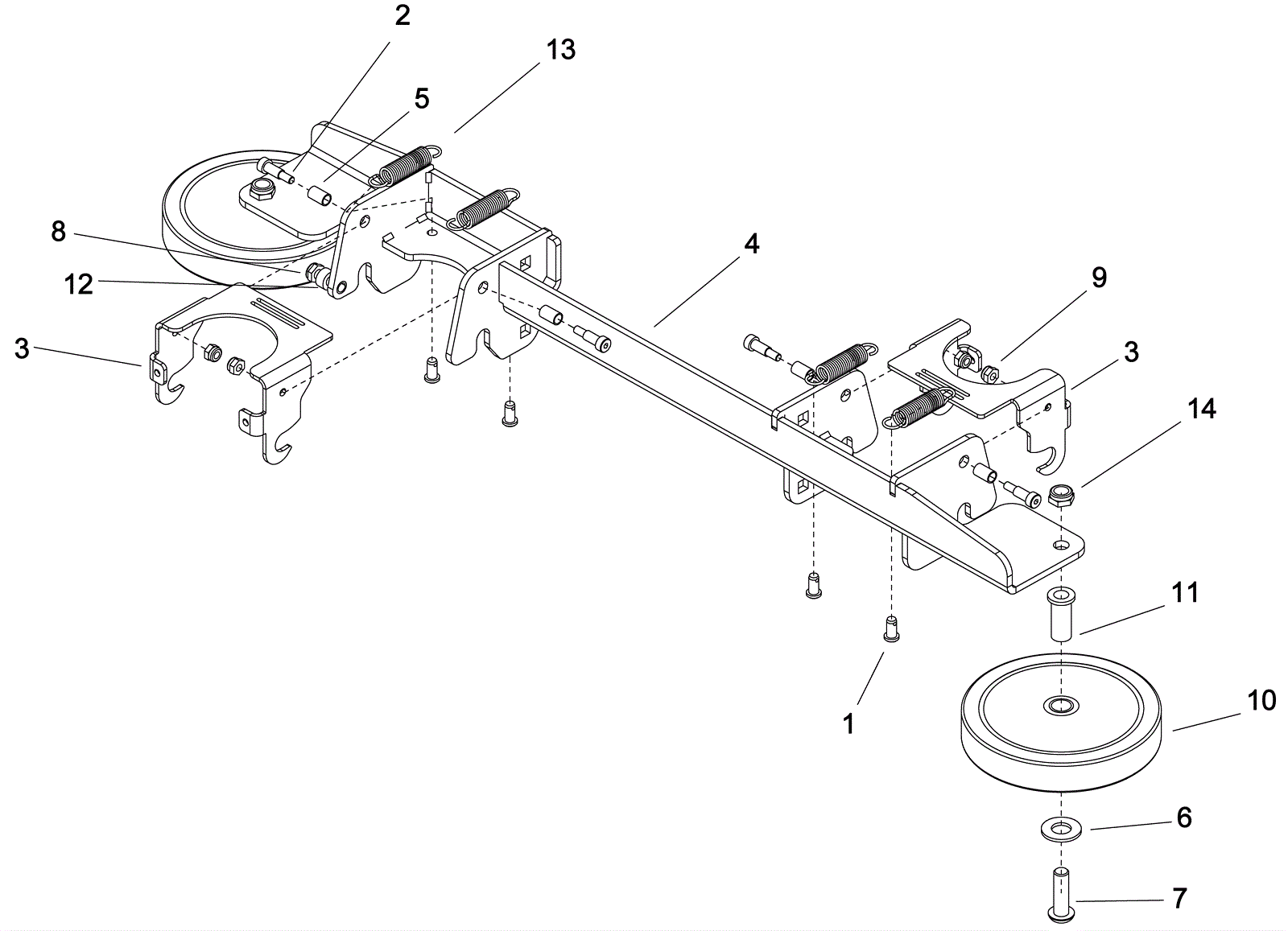

CHARIOT 3 IEXTRACT 26 DUO Vacuum Shoe Mounting Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-3248 Clevis pin 1/4 x 1/2 stainless steel $95.15 4 usually ships 1-5 days
2 273-3249 Shoulder bolt $18.70 4 usually ships 1-5 days
3 273-3250 Vac shoe latch bracket $44.44 2 usually ships 1-5 days
4 273-3251 Vac shoe mount bracket $150.70 1 usually ships 1-5 days
5 273-6981 Nylon spacer $3.96 4 usually ships 1-5 days
6 999-0566 Washer 1/2 flat nylon $0.99 2 ships same day
7 999-1912 Screw 3/8-16 x 1 3/4 button socket cap SS $3.94 2 usually ships 1-5 days
8 999-0304 Nut 1/4-20 nylon lock jam stainless steel $0.99 2 ships same day
9 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 4 ships same day
10 173-1619 Wheel (gray) $53.13 2 usually ships 14-22 days
11 173-8278 Flanged bearing $14.41 2 usually ships 14-22 days
12 273-6879 Nylon spacer $5.56 2 usually ships 1-5 days
13 173-5155 Extension spring $12.76 4 usually ships 14-22 days
14 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $3.96 2 ships same day
