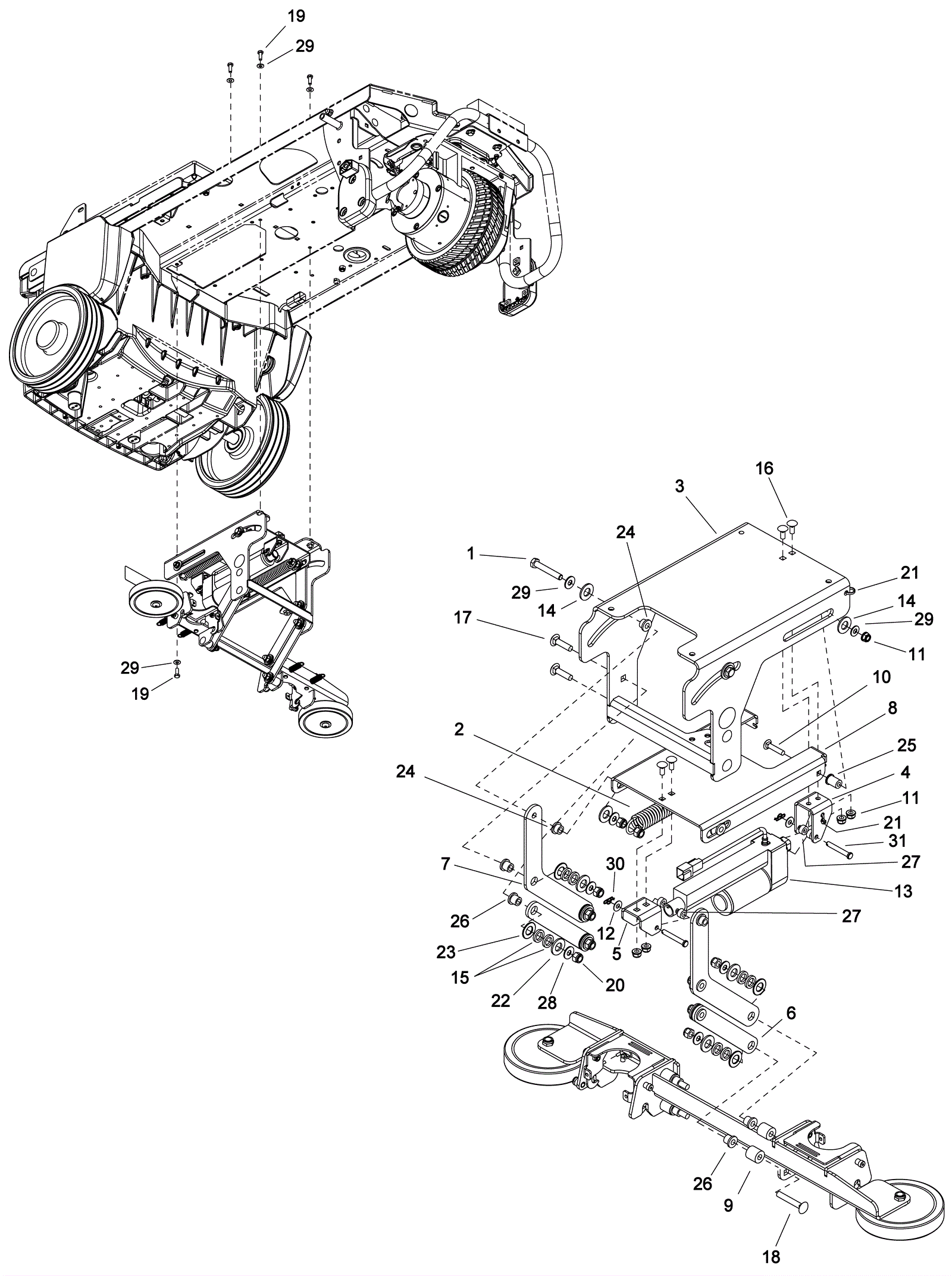

CHARIOT 3 IEXTRACT 26 DUO Vacuum Shoe Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0893 Screw 5/16-18 x 2 hex head stainless steel $0.99 2 ships same day
2 273-3242 Extension spring $100.10 2 usually ships 14-22 days
3 273-3243 Lift mount bracket $193.60 1 usually ships 1-5 days
4 273-3244 Rear actuator mount bracket $24.20 1 usually ships 1-5 days
5 273-3245 Front actuator mount bracket $20.79 1 usually ships 1-5 days
6 273-3246 Lift link plate $16.39 2 usually ships 1-5 days
7 273-3247 Lift arm plate $24.20 2 usually ships 1-5 days
8 273-3241 Spring carriage bracket $60.50 1 usually ships 1-5 days
9 273-3192 Spacer $43.78 4 usually ships 1-5 days
10 999-1443 Bolt 1/4-20 x 1 1/4 carriage stainless steel $1.03 2 ships same day
11 999-0595 Nut 1/4-20 flange lock serrated zinc plated $0.99 6 ships same day
12 273-7088 Washer nylon (black) $1.40 2 usually ships 1-5 days
13 173-7260 36V actuator $400.48 1 ships same day
14 999-0566 Washer 1/2 flat nylon $0.99 6 ships same day
15 173-2571 Washer 1/2 x .125 wave $3.82 16 usually ships 14-22 days
16 273-5894 Screw 1/4-20 x 5/8 carriage head stainless steel $3.30 4 usually ships 1-5 days
17 999-0919 Bolt 5/16-18 x 1 1/4 carriage head stainless steel $1.39 4 ships same day
18 999-0476 Screw 5/16-18 x 2 carriage head grade 5 zinc $0.99 4 ships same day
19 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel $0.99 4 ships same day
20 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 12 ships same day
21 173-0822 Wire tie $0.99 2 usually ships 14-22 days
22 173-2815 Washer 33/64 x 1 thrust $7.81 8 usually ships 14-22 days
23 173-3964 Thrust washer $6.44 8 ships same day
24 273-5628 Flanged bearing $5.50 4 ships same day
25 173-8258 Flanged bearing $11.33 2 ships same day
26 173-3116 Flanged bearing $8.47 8 usually ships 14-22 days
27 273-6879 Nylon spacer $5.56 6 usually ships 1-5 days
28 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 12 ships same day
29 999-0123 Washer 1/4 SAE flat zinc plated $0.99 6 ships same day
30 173-1130 Cotter ring $2.42 2 ships same day
31 173-3433 Clevis pin $5.23 2 usually ships 1-5 days
