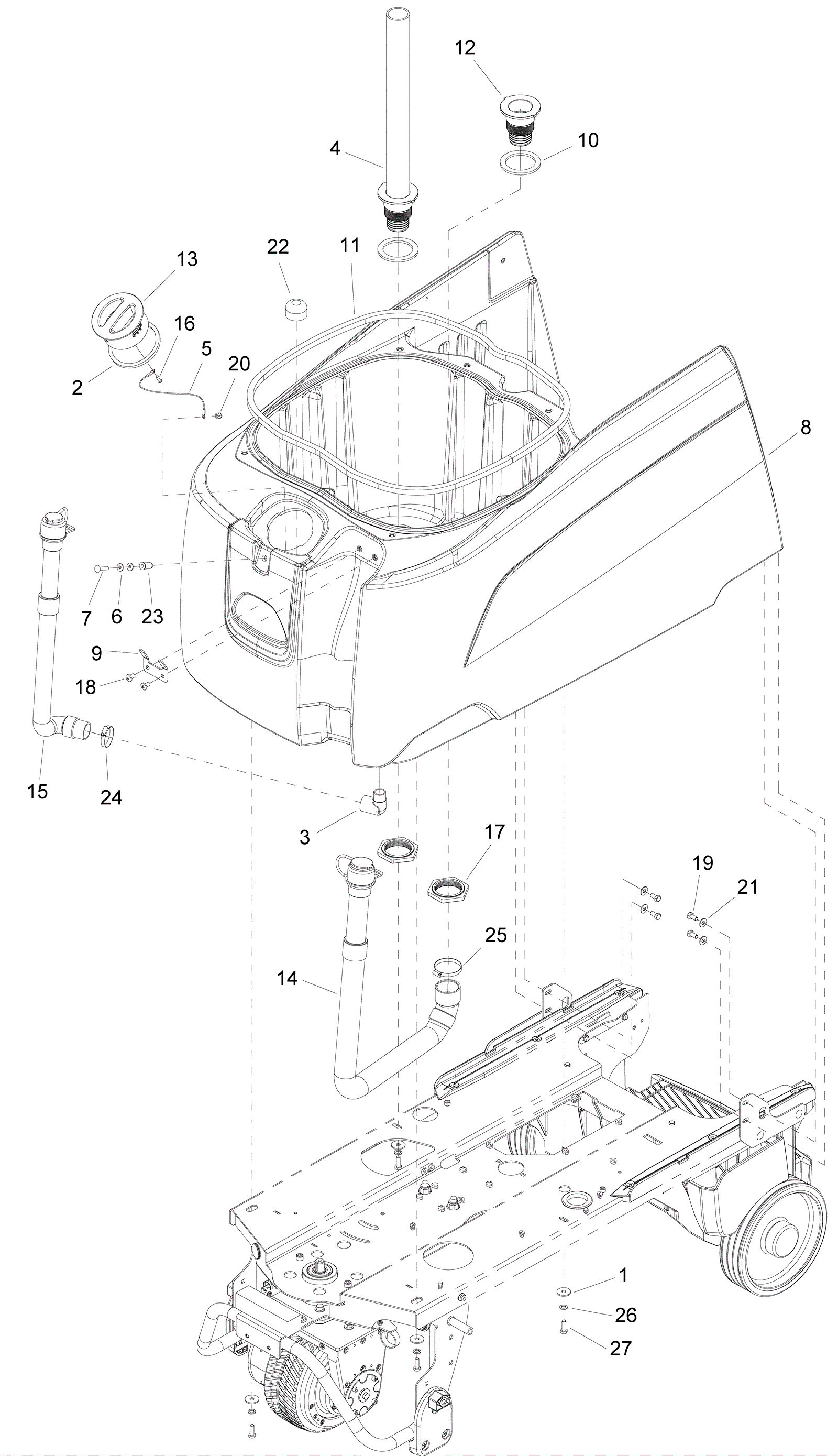

CHARIOT 3 IEXTRACT 26 DUO Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-7219 Washer $1.64 4 usually ships 14-22 days
2 273-3230 Solution fill gasket $13.86 1 ships same day
3 273-3231 PVC elbow $11.44 1 usually ships 14-22 days
4 273-3232 Recovery inlet tube assembly $135.30 1 ships same day
5 273-3233 12 inch lanyard $19.58 1 usually ships 14-22 days
6 206-4820 Washer $3.14 2 ships same day
7 999-1443 Bolt 1/4-20 x 1 1/4 carriage stainless steel $1.03 1 ships same day
8a 273-3234 Tank (gray) $1,848.00 1 usually ships 1-5 days
8b 273-7593 Tank (blue) $1,276.00 1 usually ships 1-5 days
9 273-3235 Hose retention bracket $19.58 1 usually ships 14-22 days
10 273-3236 Gasket $15.73 2 usually ships 1-5 days
11 273-3237 Main tank gasket $50.71 1 ships same day
12 273-3238 Bulkhead fitting $46.20 1 usually ships 1-5 days
13 273-3239 Fresh water cap (yellow) $31.20 1 usually ships 14-22 days
14 273-7196 Recovery tank drain hose $151.82 1 ships same day
15 273-3240 Solution drain hose $141.93 1 ships same day
16 173-5950 Screw KA50 x 16 oval head phillips SS (OBSOLETE) $2.85 1 usually ships 14-22 days
17 273-5975 Drain fitting nut $23.54 2 usually ships 14-22 days
18 999-1342 Screw 5/16-18 x 1/2 truss head slotted zinc $0.99 2 ships same day
19 999-1343 Screw 5/16-18 x 5/8 hex head stainless steel $1.25 8 ships same day
20 999-1344 Nut 1/4-20 acorn stainless steel $1.38 1 ships same day
21 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 4 ships same day
22 189-4181 3/8 inch mesh strainer $40.23 1 ships same day
23 173-5053 Nut 1/4-20 well (OBSOLETE) $5.45 1 usually ships 14-22 days
24 997-2000 Hose clamp $2.37 1 ships same day
25 997-2007 Hose clamp $2.07 1 ships same day
26 999-0028 Washer 5/16 split lock plain finish $0.99 4 ships same day
27 999-1232 Screw 5/16-18 x 3/4 hex head stainless steel $0.99 4 ships same day
