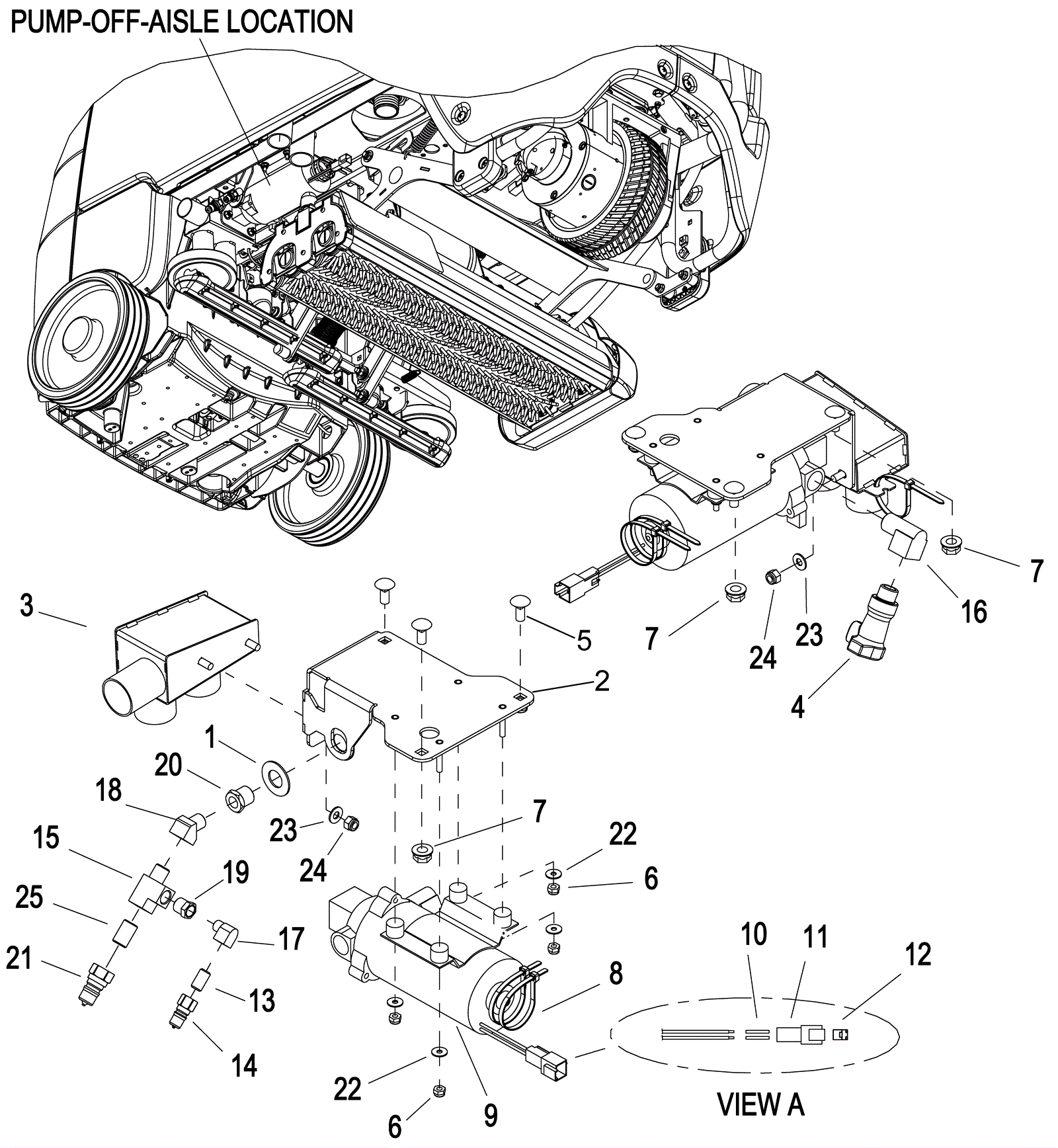

CHARIOT 3 IEXTRACT 26 DUO Pump Assembly - Off-Aisle

#PartDescriptionPriceReqNotesAvailability
1 273-3221 Washer $6.22 2 usually ships 1-5 days
2 273-3222 Pump mounting bracket $87.45 1 usually ships 1-5 days
3 273-3223 Vacuum chamber $207.90 1 usually ships 1-5 days
4 273-3210 Quick disconnect coupling $81.95 1 usually ships 14-22 days
5 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 3 ships same day
6 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 4 ships same day
7 999-0525 Nut 5/16-18 flange lock serrated zinc plated $0.99 3 ships same day
8 273-3820 11 inch cable tie $0.41 6 ships same day
9a 173-2606 36V pump assembly $720.83 1 ( models 10061670 and 10061680) (includes 9b-12) usually ships 14-22 days
9b 173-5416 Pump $766.70 1 ( models 10061780 and 10061790) usually ships 1-5 days
10 273-3224 Terminal $5.50 2 usually ships 1-5 days
11 273-3225 Connector $12.98 1 usually ships 1-5 days
12 273-3226 Lock $3.70 1 usually ships 1-5 days
13 173-7032 1/8 close nipple $4.72 1 usually ships 14-22 days
14 991-8149 1/8 inch male quick disconnect $5.93 1 usually ships 17-23 days
15 173-2314 1/4 inch street tee $19.69 1 usually ships 14-22 days
16 173-0965 3/8 inch street elbow nickel plated $15.73 1 usually ships 14-22 days
17 173-2223 90 degree elbow $18.81 1 usually ships 14-22 days
18 173-1928 Elbow $16.17 1 ships same day
19 173-5668 Bushing $6.66 1 usually ships 14-22 days
20 173-0684 Bushing $6.93 1 usually ships 14-22 days
21 991-8150 1/4 inch BH2-61 male nipple (mate to QD80) $10.94 1 ships same day
22 999-0998 Washer #10 flat stainless steel $0.99 4 ships same day
23 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
24 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 2 ships same day
25 189-4213 1/4 inch nipple $10.95 1 ships same day
N/S 999-0148 Washer #6 external star lock zinc plated $0.99 2 ( models 10061670 and 10061680) ships same day
N/S 273-0032 Relay $71.50 1 ( models 10061670 and 10061680) usually ships 14-22 days
N/S 173-1520 Nylon standoff $6.66 2 ( models 10061670 and 10061680) ships same day
N/S 173-3169 Wire tie $1.03 1 ( models 10061670 and 10061680) usually ships 1-5 days
N/S 173-0822 Wire tie $0.99 3 ( models 10061670 and 10061680) usually ships 14-22 days
N/S 273-5780 Micro switch $27.50 1 ( models 10061670 and 10061680) usually ships 14-22 days
N/S 273-0914 Button assembly $28.82 1 ( models 10061670 and 10061680) usually ships 14-22 days
N/S 273-3205 Off-aisle decal $52.36 2 ( models 10061670 and 10061680) usually ships 1-5 days
N/S 273-3227 Relay and switch harness $95.15 1 ( models 10061670 and 10061680) usually ships 1-5 days
