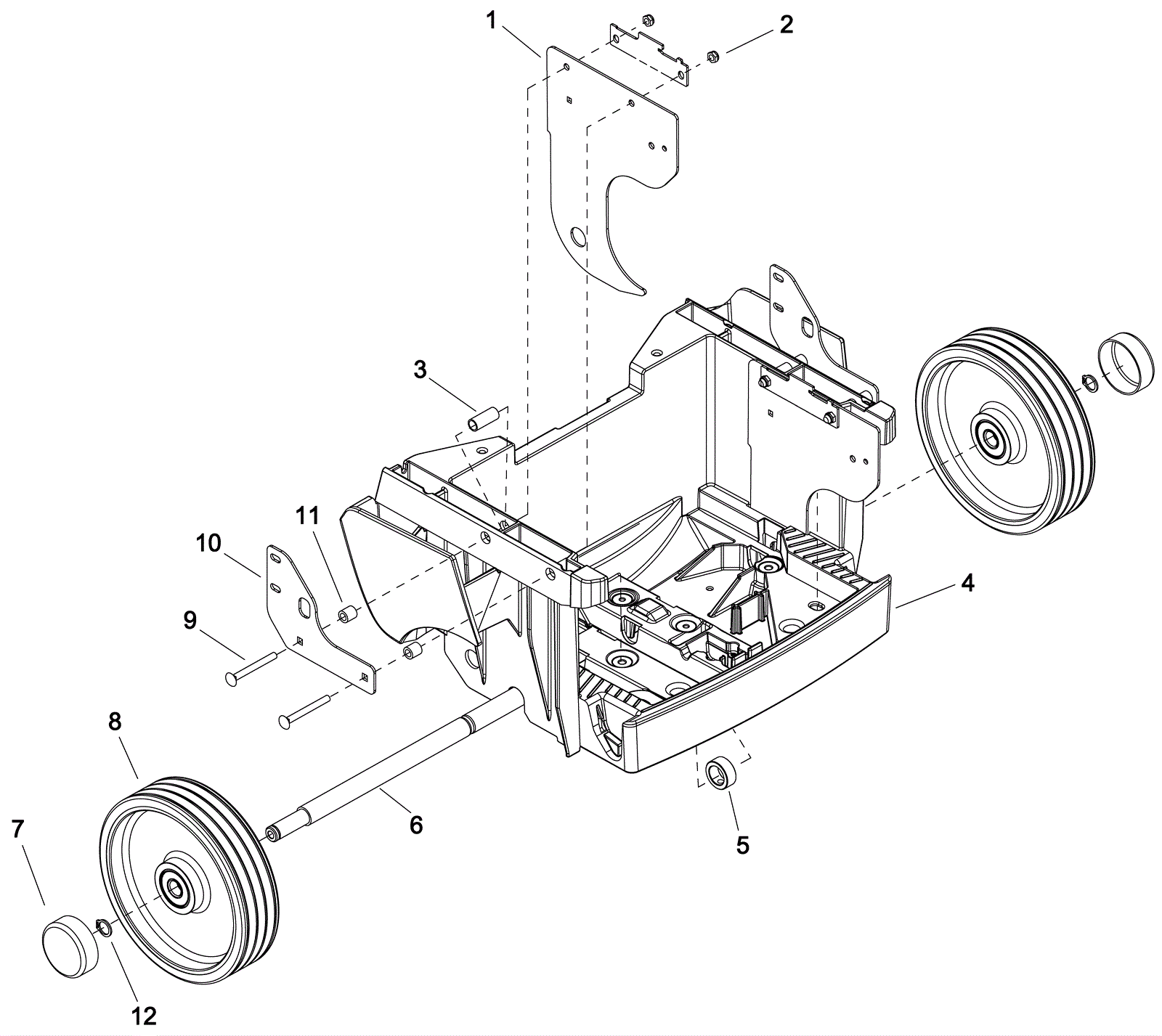

CHARIOT 3 IEXTRACT 26 DUO Rear Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-7263 Platform support plate $43.60 2 ships same day
2 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 4 ships same day
3 273-7264 Spacer $21.34 4 usually ships 1-5 days
4 273-7265 Platform footbox $493.16 1 usually ships 1-5 days
5 273-7266 Shaft collar $24.01 1 usually ships 1-5 days
6 273-7267 Rear axle $145.95 1 usually ships 1-5 days
7 273-0031 Vinyl cap (black) $13.89 2 usually ships 11-16 days
8 273-7268 Plastic wheel with bearings $304.84 2 usually ships 11-16 days
9 999-1335 Bolt 5/16-18 x 3 round head carriage stainless steel $5.54 4 ships same day
10 273-7269 Tank support plate $19.91 2 usually ships 1-5 days
11 173-5559 Spacer $52.14 4 usually ships 1-5 days
12 173-3286 3/4 inch extended snap ring $6.12 2 usually ships 11-16 days
