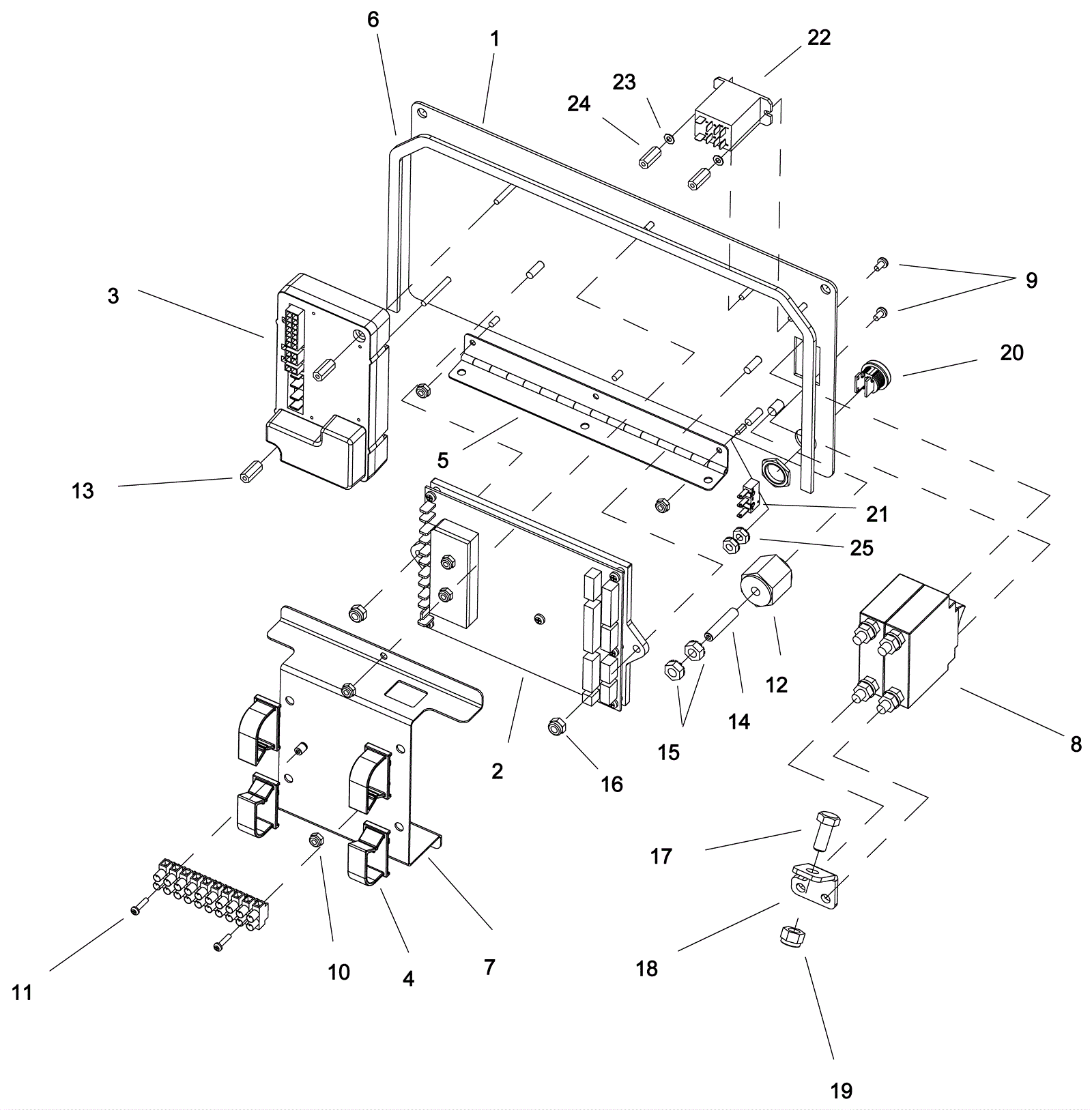

# | Part | Description | Price | Req | Notes | Availability |
1 |
273-3200
|
Lower panel |
$60.07
|
1 |
|
usually ships 1-5 days |
2 |
273-7167
|
Controller |
$874.50
|
1 |
|
usually ships 14-22 days |
3 |
273-3201
|
Controller |
$595.10
|
1 |
|
usually ships 1-5 days |
4 |
273-7226
|
Cable entry clip |
$11.55
|
4 |
|
usually ships 1-5 days |
5 |
273-7227
|
Panel hinge |
$54.56
|
1 |
|
usually ships 1-5 days |
6 |
273-7228
|
Gasket |
$6.16
|
1 |
|
usually ships 14-22 days |
7 |
273-7229
|
Control board cover |
$92.40
|
1 |
|
usually ships 1-5 days |
8 |
273-7230
|
60amp breaker |
$195.80
|
1 |
|
usually ships 14-22 days |
9 |
999-0418
|
Screw 6-32 x 1/4 pan head slotted zinc plated |
$0.99
|
2 |
|
ships same day |
10 |
173-5037
|
Nut 6-32 elastic stop (OBSOLETE) |
$1.25
|
4 |
|
usually ships 14-22 days |
11 |
999-1330
|
Screw 4-40 x 1/2 pan head stainless steel |
$0.99
|
2 |
|
ships same day |
12 |
173-1145
|
Insulated stand-off |
$22.55
|
1 |
|
usually ships 14-22 days |
13 |
173-1520
|
Nylon standoff |
$6.66
|
2 |
|
ships same day |
14 |
999-0096
|
Screw 1/4-20 x 1/4 cup point socket set plain finish |
$0.99
|
1 |
|
ships same day |
15 |
999-1466
|
Nut 1/4-20 lock with external toothed lockwasher SS |
$0.99
|
4 |
|
ships same day |
16 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
$0.99
|
2 |
|
ships same day |
17 |
999-1052
|
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
$0.99
|
1 |
|
ships same day |
18 |
273-7231
|
Cable attachment bracket |
$21.89
|
1 |
|
usually ships 1-5 days |
19 |
999-0895
|
Nut 5/16-18 flex type lock cadmium plated |
$1.43
|
1 |
|
ships same day |
20a |
273-6129
|
Plug |
$2.24
|
1 |
|
usually ships 1-5 days |
20b |
273-0914
|
Button assembly |
$28.82
|
1 |
( models 10061780 and 10061790) |
usually ships 14-22 days |
21 |
273-5780
|
Micro switch |
$27.50
|
1 |
( models 10061780 and 10061790) |
usually ships 14-22 days |
22 |
273-0032
|
Relay |
$71.50
|
1 |
( models 10061780 and 10061790) |
usually ships 14-22 days |
23 |
999-0148
|
Washer #6 external star lock zinc plated |
$0.99
|
2 |
( models 10061780 and 10061790) |
ships same day |
24 |
173-1520
|
Nylon standoff |
$6.66
|
4 |
( models 10061780 and 10061790) |
ships same day |
25 |
173-2472
|
Nut 10-32 with star washer |
$0.99
|
2 |
(models 10061780 and 10061790) |
usually ships 1-5 days |
