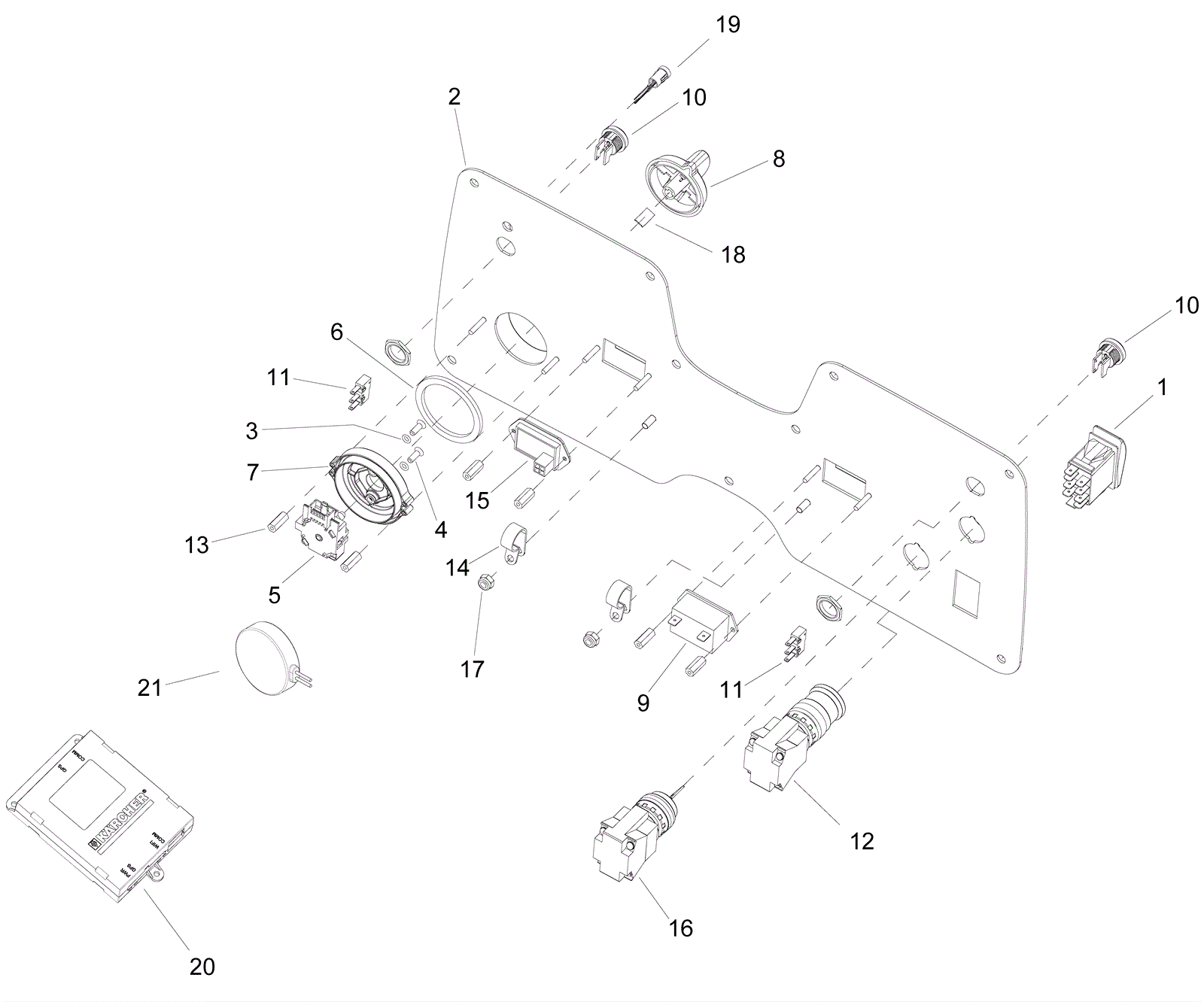

CHARIOT 3 IEXTRACT 26 DUO Upper Control Panel Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-7150 3 position switch $105.62 1 usually ships 14-22 days
2 273-7220 Upper control panel $129.80 1 usually ships 1-5 days
3 273-6635 O-ring $1.03 2 usually ships 14-22 days
4 999-1682 Screw M4-.7 x 12mm flat head stainless steel $0.99 2 ships same day
5 273-6631 Rotary switch $47.52 1 ships same day
6 273-6633 Gasket $3.87 1 usually ships 14-22 days
7 273-6632 Rotary switch (bezel) $25.74 1 ships same day
8a 273-6022 Knob $3.70 1 (also need to order 18 ) ships same day
9 273-5769 Hour meter $104.71 1 usually ships 14-22 days
10 273-0914 Button assembly $28.82 2 usually ships 14-22 days
11 273-5780 Micro switch $27.50 2 usually ships 14-22 days
12 273-5774 Emergency stop switch $167.20 1 usually ships 14-22 days
13 173-1520 Nylon standoff $6.66 6 ships same day
14 173-1139 5/8 nylon clamp $1.52 2 usually ships 1-5 days
15 273-5772 36V battery meter $171.60 1 usually ships 14-22 days
16a 173-8560 Master key switch $328.96 1 usually ships 14-22 days
16b 173-3958 Key (pkg of 2) $29.81 1 ships same day
17 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 2 ships same day
18 273-9368 Knob w/ spring clip $7.54 1 ships same day
19 273-7221 Water indicator LED $40.70 1 usually ships 14-22 days
20 273-7787 Fleet management module $1,006.50 1 ( model 10061670 after SN0000385, model 10061680 after SN0000348, model 10061780 after SN0000008 , model 10061790 after SN0000022) usually ships 14-22 days
21 273-7788 Antenna fleet management module $130.90 1 ( model 10061670 after SN0000385, model 10061680 after SN0000348, model 10061780 after SN0000008 , model 10061790 after SN0000022) usually ships 14-22 days
