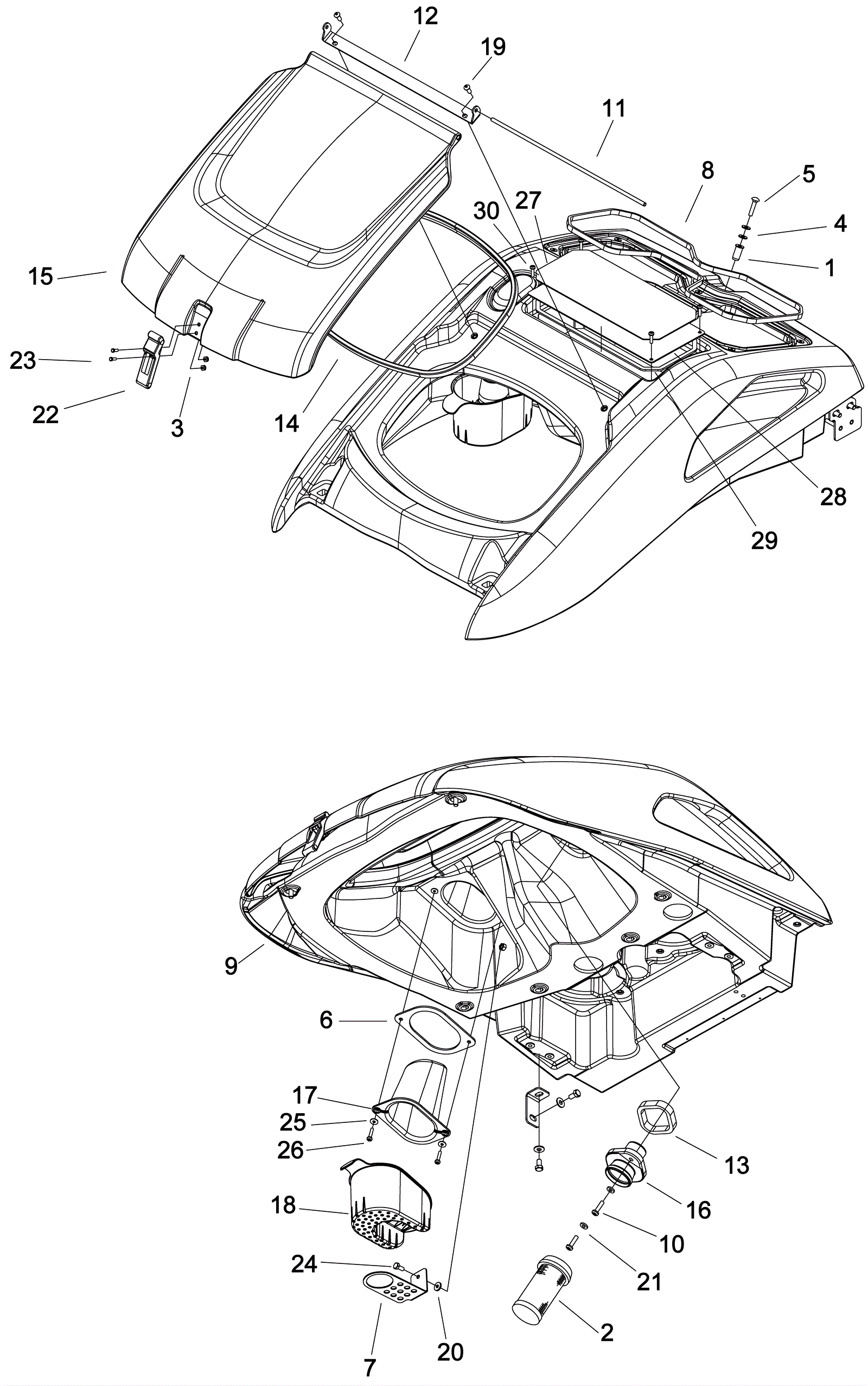

CHARIOT 3 IEXTRACT 26 DUO Console Assembly

#PartDescriptionPriceReqNotesAvailability
1 173-5053 Nut 1/4-20 well (OBSOLETE) $5.45 1 usually ships 14-22 days
2 173-5336 Float cage assembly $44.33 1 ships same day
3 999-1036 Nut 8-32 hex NTM nylon insert jam lock stainless steel $0.99 2 ships same day
4 206-4820 Washer $3.14 2 usually ships 12-16 days
5 999-1443 Bolt 1/4-20 x 1 1/4 carriage stainless steel $1.03 1 ships same day
6 273-7200 Sight glass dome gasket $17.27 1 usually ships 14-22 days
7 273-7201 Recovery tube bracket $44.33 1 usually ships 1-5 days
8 273-7202 Gasket $11.33 1 usually ships 14-22 days
9a 273-3195 Console $1,435.50 1 usually ships 1-5 days
9b 273-3196 Console $1,127.50 1 (onboard charger model) (optional for model CEC26) usually ships 1-5 days
10 999-0342 Screw 1/4-20 x 1 pan head phillips stainless steel $0.99 2 ships same day
11 273-7207 Shaft $23.54 1 ships same day
12 273-7208 Lid hinge bracket $64.90 1 ships same day
13 273-7209 Float screen adapter gasket $18.81 1 usually ships 1-5 days
14 273-7210 Lid gasket $115.50 1 usually ships 14-22 days
15 273-7211 Recovery lid (black) $195.80 1 usually ships 14-22 days
16 273-7212 Float screen adapter $40.70 1 usually ships 1-5 days
17 273-7213 Glass sight dome $59.95 1 usually ships 14-22 days
18 273-7214 Recovery tank filter basket $39.93 1 usually ships 14-22 days
19 999-1480 Screw 1/4-20 x 5/8 button head socket cap stainless steel $0.99 2 ships same day
20 273-7215 Washer 1/4 rubber $1.69 1 usually ships 1-5 days
21 173-7263 Washer seal 1/4 x 5/8 stainless steel $1.88 2 usually ships 1-5 days
22 173-8288 Latch $36.85 1 ships same day
24 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel $0.99 1 ships same day
25 999-0998 Washer #10 flat stainless steel $0.99 2 ships same day
26 173-5963 Screw 10-32 x 1 pan head torx stainless steel $8.80 2 usually ships 14-22 days
27 273-3197 Console pad $68.75 1 (used with 9a) usually ships 1-5 days
28 273-3198 Steering access cover $42.35 1 usually ships 1-5 days
29 273-3199 Gasket $8.25 1 usually ships 1-5 days
30 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel $0.99 4 ships same day
