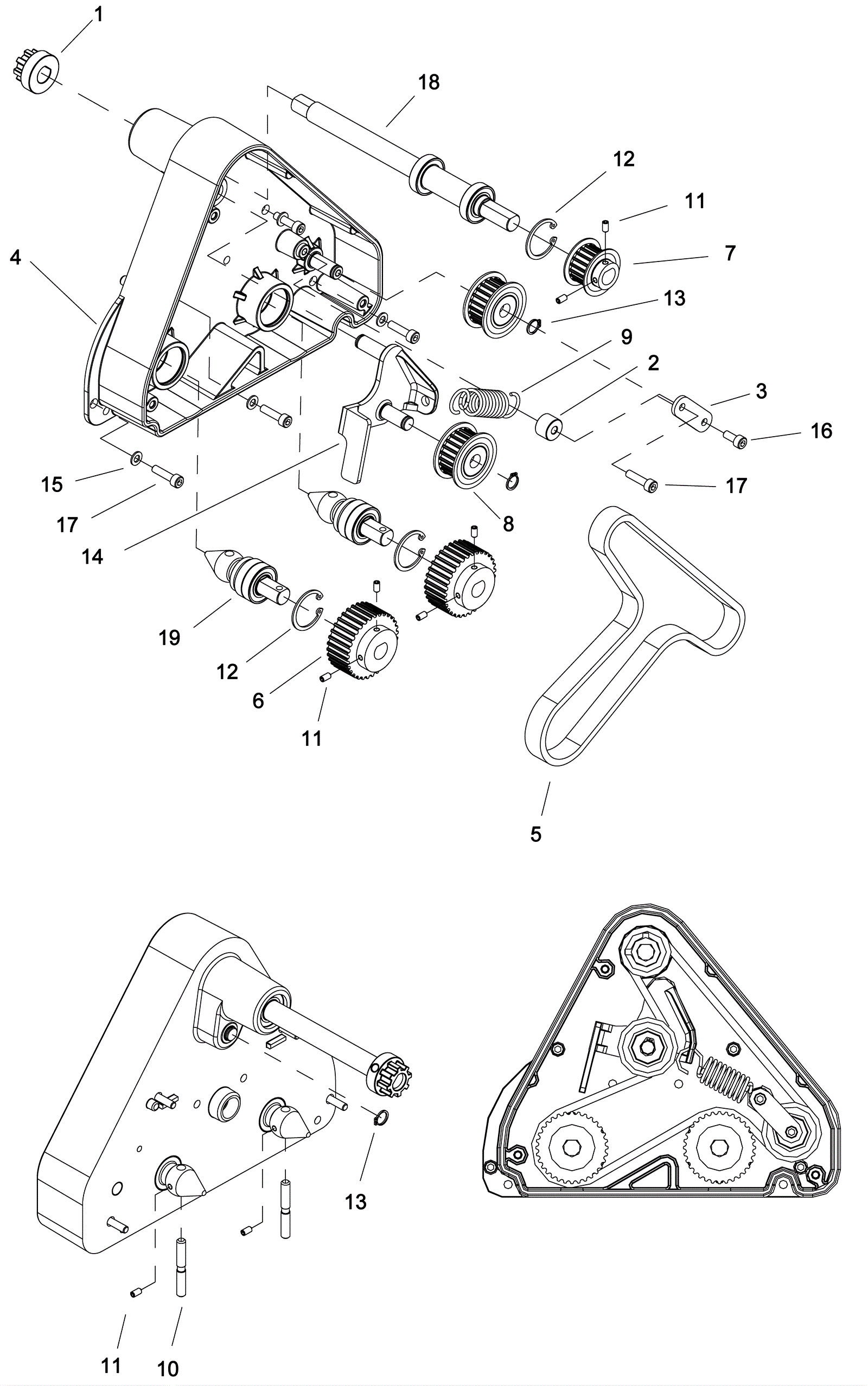

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
273-3183
|
Coupling hub |
1 |
|
|
2 |
273-6543
|
Spacer (OBSOLETE) |
1 |
|
|
3 |
273-6542
|
Support plate |
1 |
|
|
4 |
273-6537
|
Brush drive housing assembly |
1 |
|
|
5 |
173-7519
|
Belt |
1 |
|
|
6 |
273-6538
|
32 toothed pulley |
2 |
|
|
7 |
273-6539
|
18 toothed pulley |
1 |
|
|
8 |
273-6540
|
22 toothed pulley assembly |
2 |
|
|
9 |
273-5590
|
Tensioner spring |
1 |
|
|
10 |
273-5586
|
Brush drive shaft |
2 |
|
|
11 |
273-5518
|
Screw M4-.7 x 8mm set cup point |
8 |
|
|
12 |
173-4181
|
Snap ring |
3 |
|
|
13 |
173-8999
|
External snap ring |
3 |
|
|
14 |
273-5593
|
Tensioner arm bracket |
1 |
|
|
15 |
999-9100
|
Washer M5 flat stainless steel |
4 |
|
|
16 |
273-5734
|
Screw M5-.8 x 12mm socket head cap stainless steel |
1 |
|
|
17 |
273-5592
|
Screw M5-.8 x 20mm socket head cap stainless steel |
5 |
|
|
18 |
273-6555
|
24 inch drive shaft assembly |
1 |
|
|
19 |
273-5599
|
Brush drive shaft assembly |
2 |
|
|
