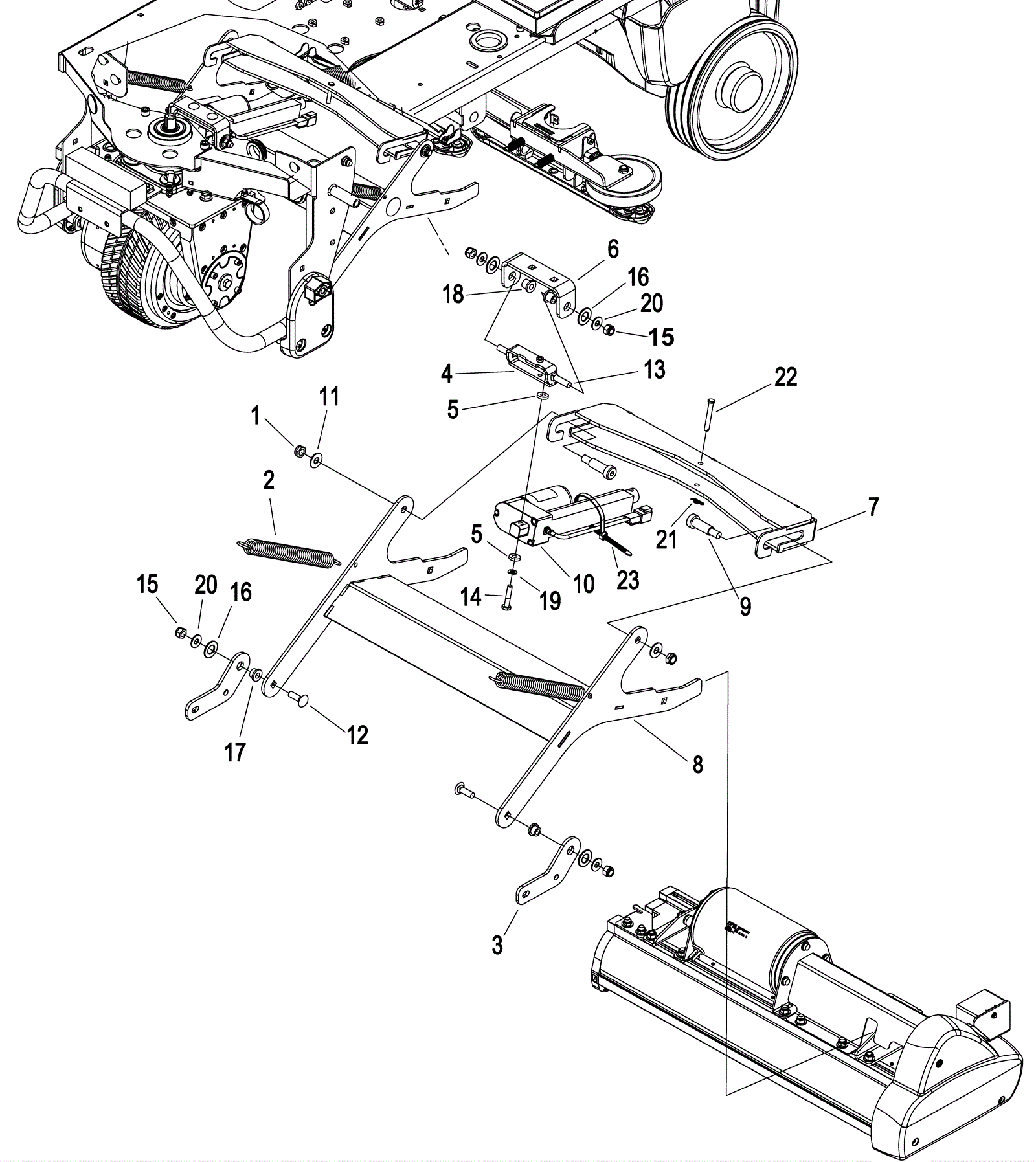

CHARIOT 3 IEXTRACT 26 DUO Brush Deck Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $3.96 2 ships same day
2 273-3185 Extension spring $71.50 2 usually ships 1-5 days
3 273-3186 Lower front lifting bracket $12.76 2 usually ships 1-5 days
4 273-3187 Actuator bracket assembly $58.85 4 usually ships 1-5 days
5 273-3188 Washer nylon black $1.43 2 usually ships 1-5 days
6 273-3189 Upper outer lifting bracket $24.53 1 usually ships 1-5 days
7 273-3190 Lower actuator bracket weldment $172.70 1 usually ships 1-5 days
8 273-3191 Deck lift weldment $165.00 1 usually ships 1-5 days
9 999-0600 Screw 3/8-16 x 1/4 socket head shoulder stainless steel $16.19 2 ships same day
10 173-7260 36V actuator $400.48 1 ships same day
11 999-0120 Washer 3/8 SAE flat $0.99 2 ships same day
12 999-0252 Screw 5/16-18 x 1 carriage head grade 5 zinc $0.99 2 ships same day
13 999-0919 Bolt 5/16-18 x 1 1/4 carriage head stainless steel $1.39 2 ships same day
14 999-0506 Bolt 1/4-20 x 1 1/2 hex head stainless steel $1.28 1 ships same day
15 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 4 ships same day
16 173-3964 Thrust washer $6.44 4 ships same day
17 273-5628 Flanged bearing $5.50 2 ships same day
18 173-3116 Flanged bearing $8.47 2 usually ships 14-22 days
19 999-0632 Washer 1/4 split lock stainless steel $0.99 1 ships same day
20 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 4 ships same day
21 173-1130 Cotter ring $2.42 1 ships same day
22 173-3433 Clevis pin $5.23 1 usually ships 1-5 days
23 173-3169 Wire tie $1.03 1 usually ships 1-5 days
