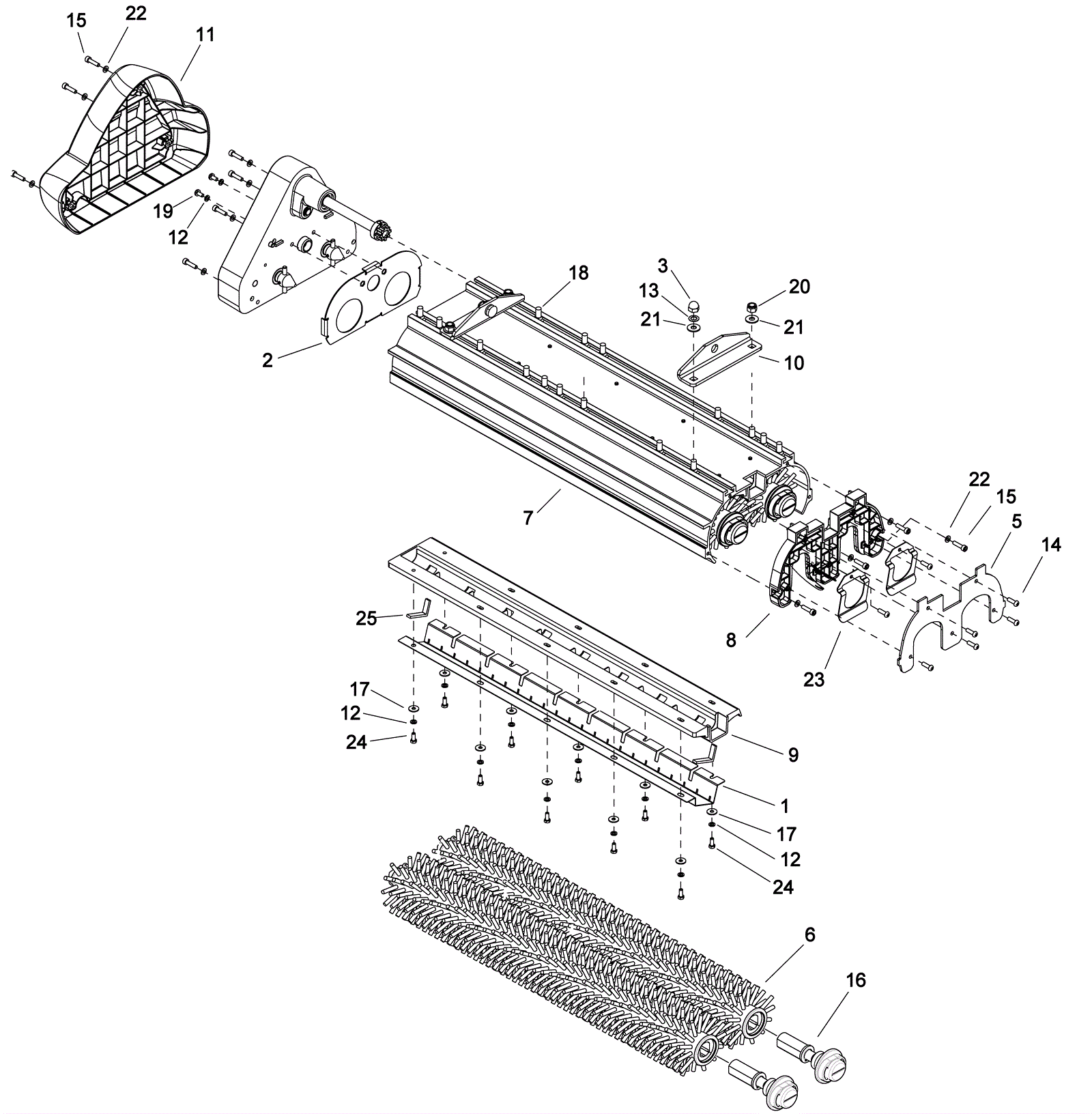

CHARIOT 3 IEXTRACT 26 DUO Brush Deck Assembly - Internal

#PartDescriptionPriceReqNotesAvailability
1 273-3168 Agitator rail $79.75 1 usually ships 1-5 days
2 273-3169 Brush guide plate $56.10 1 usually ships 1-5 days
3 999-0958 Nut 5/16-18 acorn stainless steel $10.11 1 ships same day
5 273-3171 End cap cover $31.13 1 usually ships 1-5 days
6 273-3172 26 inch extractor brush $281.60 2 ships same day
7 273-3173 Dual brush extrusion $503.80 1 usually ships 1-5 days
8 273-3174 End cap $73.15 1 usually ships 1-5 days
9 273-3175 Solution manifold mount $97.35 1 usually ships 1-5 days
10 273-6566 Pivot bracket $35.20 2 usually ships 1-5 days
11 273-6541 Drive housing cover $49.28 1 usually ships 14-22 days
12 999-9132 Washer M5 split lock stainless steel $0.99 12 ships same day
13 999-1053 Washer 5/16 internal star lock stainless steel $0.99 1 ships same day
14 173-5950 Screw KA50 x 16 oval head phillips SS (OBSOLETE) $2.85 7 usually ships 14-22 days
15 273-5592 Screw M5-.8 x 20mm socket head cap stainless steel $4.24 7 ships same day
16 273-5587 Brush end cap shaft assembly $75.36 2 ships same day
17 273-5591 Washer M5 flat stainless steel $1.82 10 usually ships 14-22 days
18 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 18 ships same day
19 999-0896 Screw 10-32 x 3/8 round head phillips stainless steel $0.99 2 ships same day
20 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 3 ships same day
21 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 4 ships same day
22 999-9100 Washer M5 flat stainless steel $5.83 7 ships same day
23 273-6748 Brush spring clip $14.63 2 usually ships 14-22 days
24 999-1220 Screw M5-.8 x 12mm hex head stainless steel $0.99 10 ships same day
25 273-3176 Gasket $3.82 2 usually ships 14-22 days
