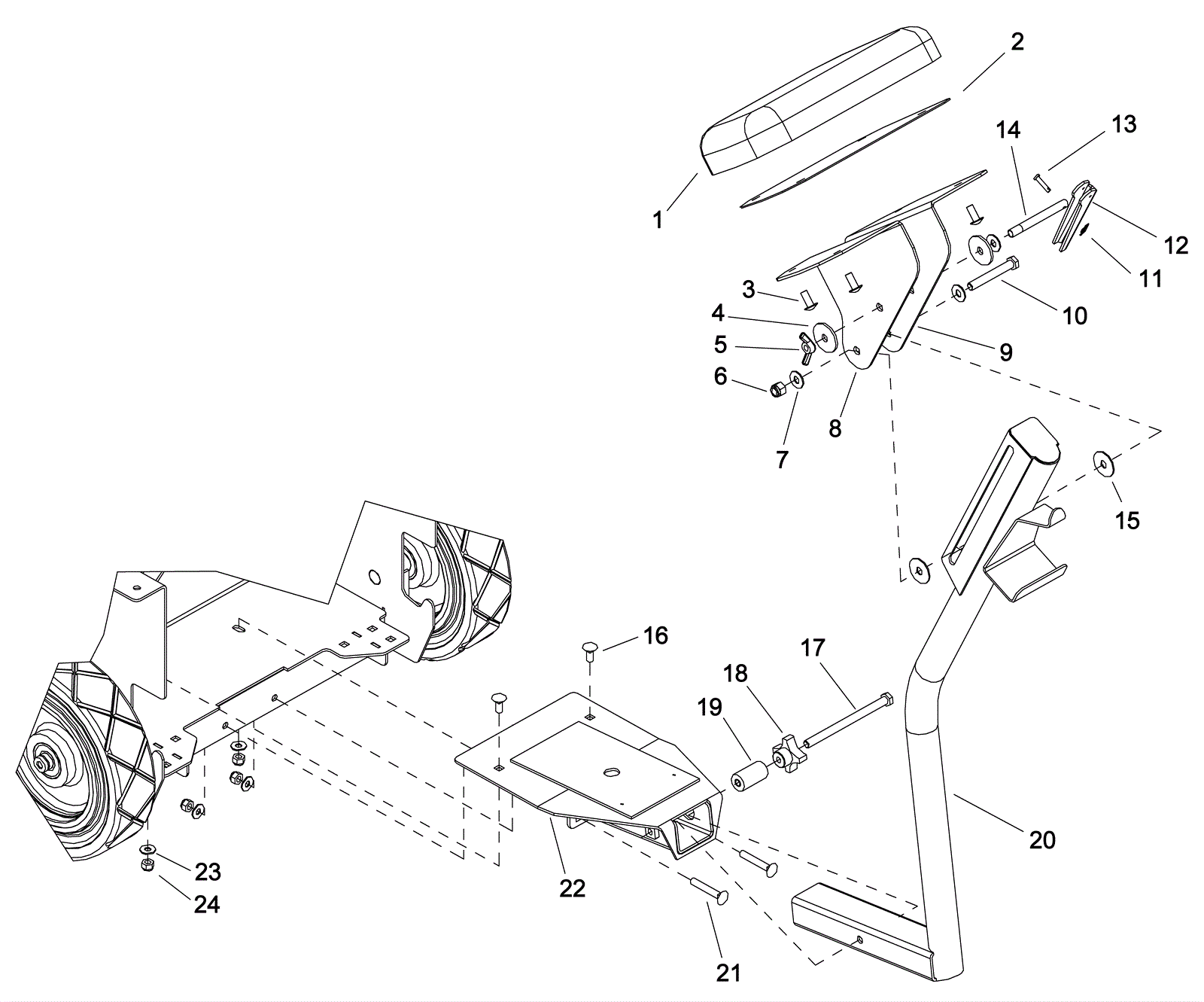

CHARIOT I CAPSOL Seat Assembly - Optional

#PartDescriptionPriceReqNotesAvailability
1 173-5632 Rest pad $170.34 1 usually ships 1-5 days
2 173-5633 Seat plate $38.10 1 usually ships 1-5 days
3 999-1146 Screw 5/16-18 x 3/4 truss head phillips stainless steel $1.41 4 ships same day
4 999-0126 Washer 1/2 split lock $1.28 2 ships same day
5 999-0163 Nut 3/8-16 wing zinc plated $0.99 1 ships same day
6 999-1482 Nut 3/8-16 nylon lock stainless steel $1.06 1 ships same day
7 999-0120 Washer 3/8 SAE flat $0.99 3 ships same day
8 173-5635 Left hand seat bracket $50.00 1 usually ships 1-5 days
9 173-5636 Right hand seat bracket $50.00 1 usually ships 1-5 days
10 173-5637 Screw 3/8-16 x 2 3/4 hex head cap stainless steel $7.11 1 usually ships 1-5 days
11 173-1130 Cotter ring $2.20 1 usually ships 7-19 days
12 173-0418 Handle locking lever $29.00 1 usually ships 7-19 days
13 173-0419 Clevis pin $7.70 1 usually ships 7-19 days
14 173-5638 4 inch locking rod $64.00 1 usually ships 1-5 days
15 173-3944 Washer 2/5 nylon $1.82 2 usually ships 1-5 days
16 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 2 ships same day
17 173-5639 Screw 3/8-16 x 5 flat hex head cap stainless steel $14.60 1 usually ships 1-5 days
18 173-1025 Knob $19.20 1 ships same day
19 173-5640 Spacer $58.00 1 usually ships 1-5 days
20 173-5641 Seat mounting post $410.00 1 usually ships 1-5 days
21 999-0476 Screw 5/16-18 x 2 carriage head grade 5 zinc $0.99 2 ships same day
22 173-5643 Seat mounting receiver assembly $206.00 1 usually ships 1-5 days
23 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 4 ships same day
24 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 4 ships same day
