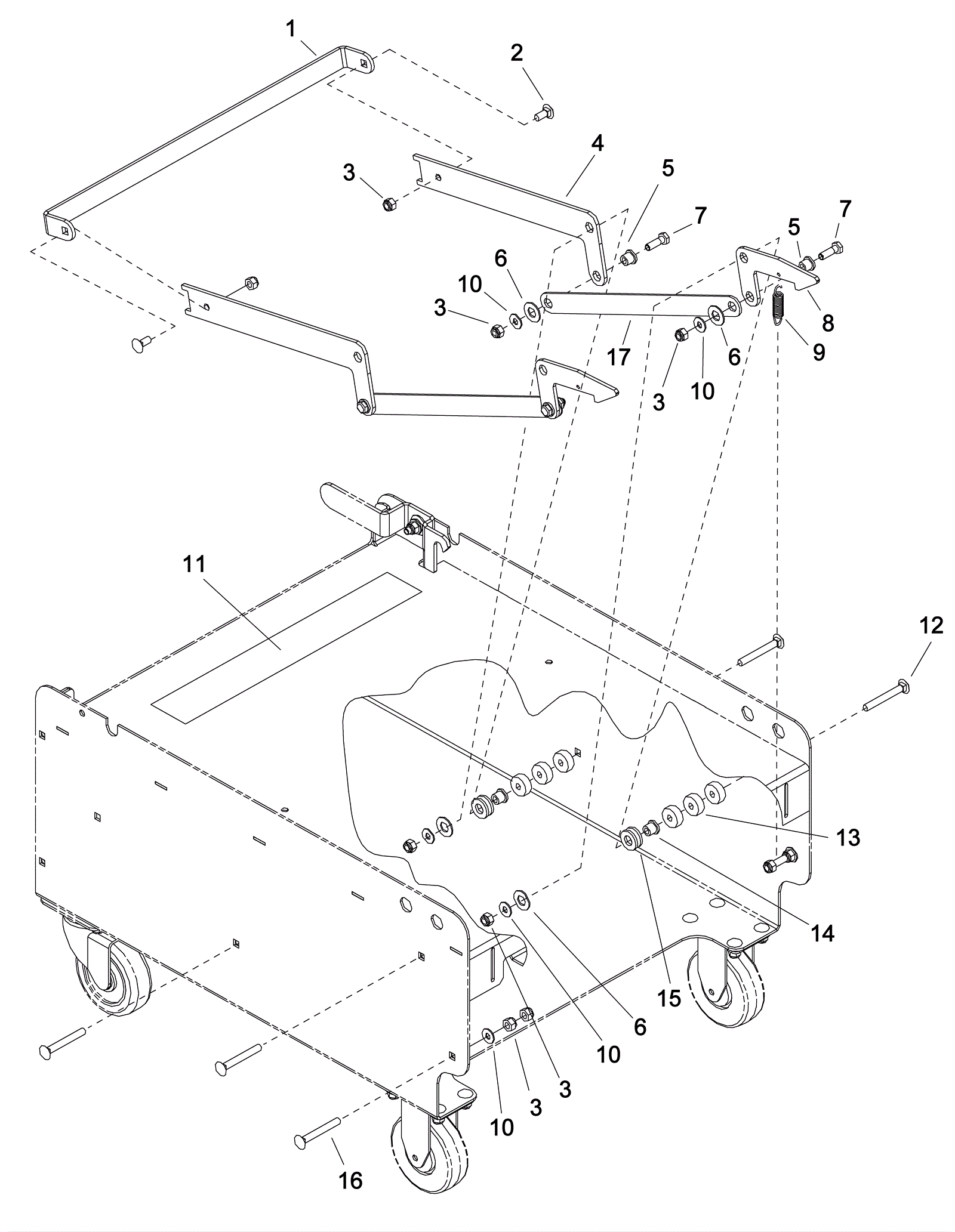

CHARIOT I CAPSOL Battery Cart Linkage Assembly - Optional

#PartDescriptionPriceReqNotesAvailability
1 173-5626 Battery cart pedal $53.00 1 usually ships 1-5 days
2 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 2 ships same day
3 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 12 ships same day
4 173-5627 Battery cart pedal $32.70 2 usually ships 1-5 days
5 173-3116 Flanged bearing $7.70 4 usually ships 7-19 days
6 173-3964 Thrust washer $5.85 6 ships same day
7 999-0424 Bolt 5/16-18 x 1 hex head stainless steel $0.99 4 ships same day
8 173-5628 Battery cart latch $19.90 2 usually ships 1-5 days
9 173-8442 Extension spring $24.95 2 usually ships 7-19 days
10 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 10 ships same day
11 173-5629 Battery cart operation decal $100.00 1 usually ships 1-5 days
12 173-5630 Screw 5/16-18 x 2 1/2 carriage head grade 5 $3.49 4 usually ships 1-5 days
13 173-5480 Spacer $3.30 12 usually ships 1-5 days
14 273-0024 Flanged bearing $8.20 4 usually ships 7-19 days
15 173-3963 Washer 1/2 thrust $6.65 8 usually ships 7-19 days
16 999-0404 Screw 5/16-18 x 1 3/4 carriage head grade 5 zinc $0.99 16 ships same day
17 173-5631 Latch linkage $24.70 2 usually ships 1-5 days
